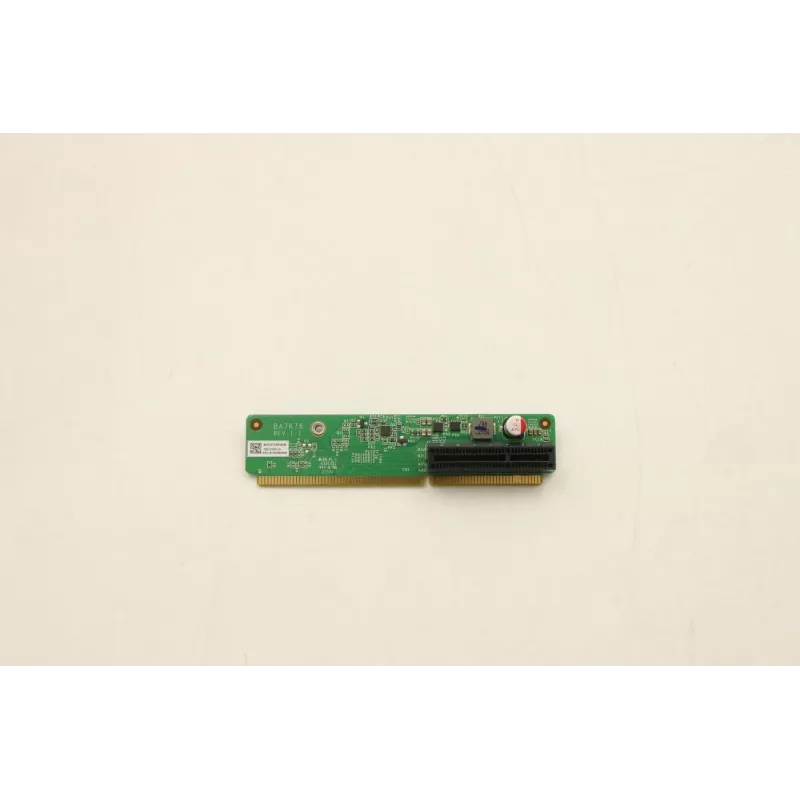

PCIe x4 -laajennuskortti Lenovo CARDPOP BLD Tiny8 (Malli 5C50W00909) Tiny-sarjan järjestelmille

Lenovo CARDPOP BLD Tiny8 is a PCIe x4 expansion card developed for the Lenovo Tiny series small-form-factor desktop systems. It provides a compact internal PCIe x4 interface that enables installation of compatible modules or adapters to add or extend peripheral connectivity and functionality in space-constrained systems. The card is designed to integrate with Tiny series chassis and internal layouts, allowing targeted upgrades and specialized I/O expansions without requiring a larger desktop platform.

Advantages

The PCIe x4 form factor delivers a balance between bandwidth and compact size suitable for Tiny series machines. Lenovo CARDPOP BLD Tiny8 supports easy installation and offers a standard PCIe electrical interface that enables a variety of compatible expansion modules. Its design preserves the small footprint of Tiny desktop systems while enabling additional ports or functions that are otherwise unavailable on the base motherboard.

Suitable for

• Installing add-on modules that require a PCIe x4 interface in Tiny series PCs
• Adding specialized I/O such as additional network, storage adapters, or interface converters
• Upgrading connectivity for compact desktop deployments in offices or kiosks

Key specifications

• Interface: PCI Express x4 electrical connection
• Form factor: low-profile / compact card suitable for small-form-factor chassis
• Compatibility: designed for Lenovo Tiny series small-form-factor systems
• Purpose: enables installation of compatible expansion modules or adapters to extend system I/O

How to use

Power down the Tiny system and disconnect all power sources before opening the chassis. Locate the internal PCIe slot area specified for expansion cards in your Tiny series model, remove any required blank or retention bracket, and carefully insert the CARDPOP BLD Tiny8 card into the designated PCIe x4 connector until seated. Secure the card according to the chassis retention method, reassemble the system, restore power, and install any driver or firmware required by the installed module or adapter. Verify device recognition in the operating system and test the added functionality.

Recommendations

Use this expansion card only with compatible modules intended for PCIe x4 electrical connections and with Lenovo Tiny series chassis that support internal add-on cards. Confirm physical clearance and power/thermal requirements of the chosen module before installation. Follow Lenovo service documentation for disassembly and reassembly procedures to avoid damage to the system.
