Pistorasia 2 x RJ-45 METZ CONNECT 130B10D20002-E valkoinen

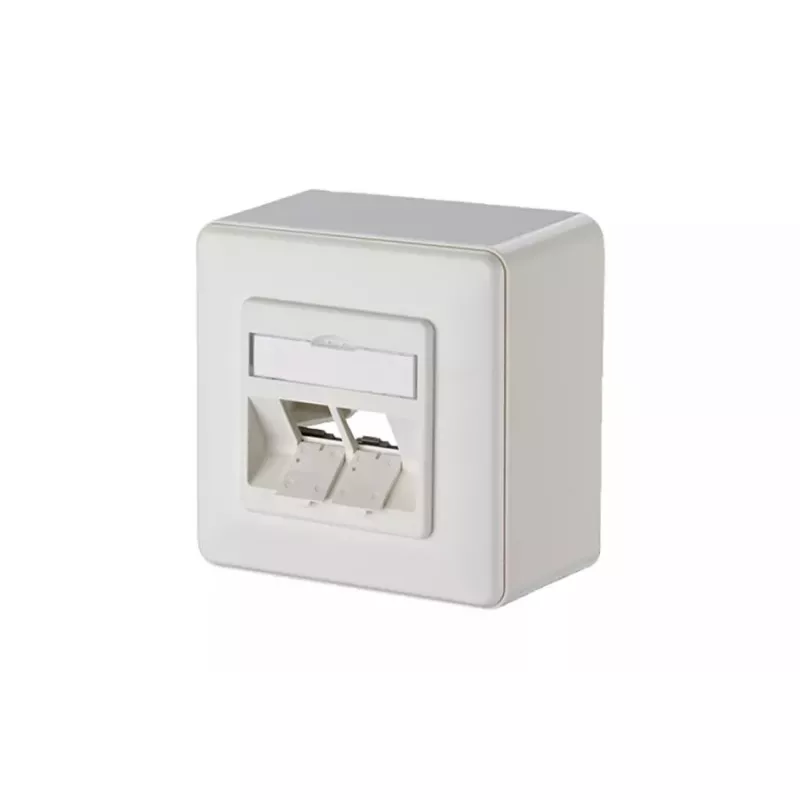

The METZ CONNECT 130B10D20002-E is a surface-mounted socket outlet in pure white (RAL 9010) with dimensions 85 x 85 x 43 mm, designed to accept modular individual modules with a modular design. This version provides two RJ-45 ports and features integrated dust protection covers, a label window for enclosed identification labels, and strain relief on the module. The module plug is angled 45° downwards and the cover has a structured matte finish.

Advantages

The outlet supports standard modular modules and accepts couplers when paired with a suitable patch cable. Its compact surface-mounted design simplifies installation on walls and surfaces. Integrated dust covers protect unused ports, and the label window allows for easy identification. The angled module plug and built-in strain relief reduce stress on cables and connectors.

Suitable for

• Wall-mounted network connections in offices and home networks
• POE installations and structured cabling systems using RJ-45 connectors
• Retrofit and new-build installations where surface-mounted outlets are required

Key specifications

• Manufacturer: BTR (METZ CONNECT)
• Model / MPN: 130B10D20002-E
• EAN: 4250184141587
• Type: Surface-mounted socket outlet, 2 x RJ-45
• Dimensions: 85 x 85 x 43 mm
• Color / Finish: Pure white RAL 9010, structured matte surface
• Module plug direction: 45° downwards
• Features: Strain relief on module, label window, integrated dust protection covers
• Variants available: 1 port, 2 ports, 3 ports

How to use

Mount the outlet on a suitable flat surface using appropriate screws or adhesive mounts (not supplied). Insert compatible modular modules or RJ-45 couplers into the modular openings; for certain couplers ensure use of a suitable patch cable as required. Route the network cables through the module, engage the strain relief, and close the cover. Use the label window to insert the printed identification label for port marking.

Recommendations

For reliable connections, use standard RJ-45 patch cables and ensure the module orientation matches the 45° downward plug direction. Keep dust covers closed on unused ports and use the dedicated label sheets (209 x 294 mm) supplied as an accessory for clear port identification.
