Pistorasia CEE 7/3 JUNG AS 523 WW

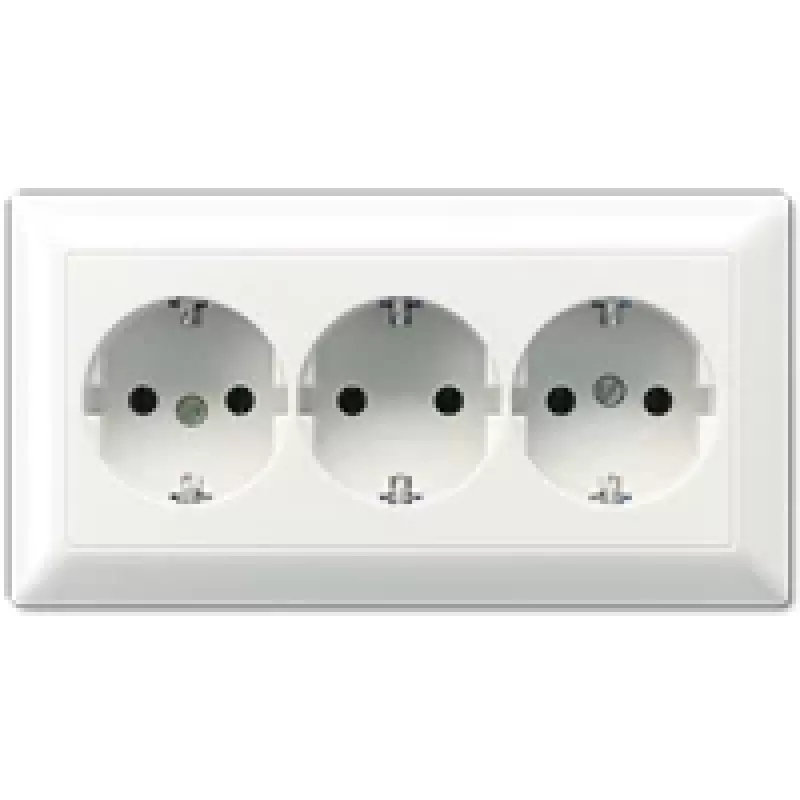

The JUNG AS 523 WW is a 3-gang CEE 7/3 socket outlet designed for fixed installation in cable duct boxes. Rated for 250 V and 16 A and manufactured from durable duroplast, the unit offers screwless terminals for wires up to 2.5 mm² and a cover with integrated frame. A marking field is available on request. Dimensions: 80.5 x 151.5 mm.

Advantages

Screwless terminals simplify wiring and accept conductors up to 2.5 mm². The integrated frame cover provides a clean finish suitable for installation in cable duct systems. Duroplast construction gives good mechanical strength and electrical insulation. The 3-gang format allows three outlets in one module, conserving space and facilitating multiple connections.

Suitable for

Key specifications

How to use

Install the socket outlet into the appropriate cable duct box following local electrical regulations. Connect supply conductors to the screwless terminals, ensuring conductor sizes do not exceed 2.5 mm² and that connections are secure. Fit the cover with integrated frame and, if required, add the inscription field. Verify proper operation after installation and restore power only after all connections are checked.

Recommendations

Use only with compatible cable duct mounting systems and within the specified ratings (250 V, 16 A). For safety and compliance, installation and any wiring modifications should be performed by a qualified electrician.
