Pistorasia Kindermann 7444000417 6,35 mm alumiini

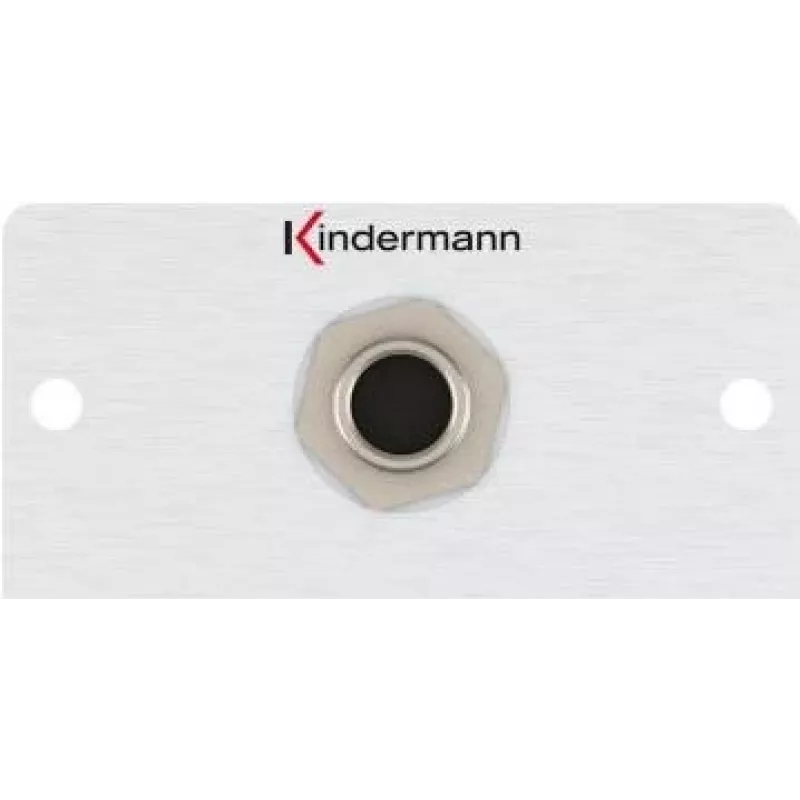

The Kindermann 7444000417 is a compact 6.35 mm (1/4") stereo socket outlet with soldering connection, built into a half-size anodized aluminium plate. Designed for installation where a durable, space-saving audio jack is required, the aluminium housing offers corrosion resistance and a clean, professional appearance. The unit accepts a single module and is suitable for both fixed installations and custom audio panels.

Advantages

This 6.35mm aluminium socket plate provides a robust solder-type connection for reliable audio contact and low signal loss. The anodized aluminium construction ensures long-term durability and a modern finish while the half-size plate and 50 mm width allow installation in confined spaces. Its simple design facilitates quick mounting and integration into studio racks, furniture panels, or wall plates.

Suitable for

Key specifications

How to use

Install the half-size aluminium plate into the prepared opening and secure it with appropriate screws. Solder the audio cable conductors to the designated soldering terminals following standard wiring conventions for stereo jacks (tip, ring, sleeve). After soldering, verify connections with a continuity tester and mount the plate flush with the panel surface. Ensure the minimum depth of 37 mm is available behind the mounting surface to accommodate the connector body.

Recommendations

For reliable long-term performance, use quality shielded audio cables and perform solder joints with proper flux and temperature control. Avoid mechanical strain on the soldered connections by securing cables or using strain relief. Match the socket to standard 6.35 mm plugs and check polarity before final assembly.
