Pistorasiasovitin NRGkick 20001001 punainen 32 A

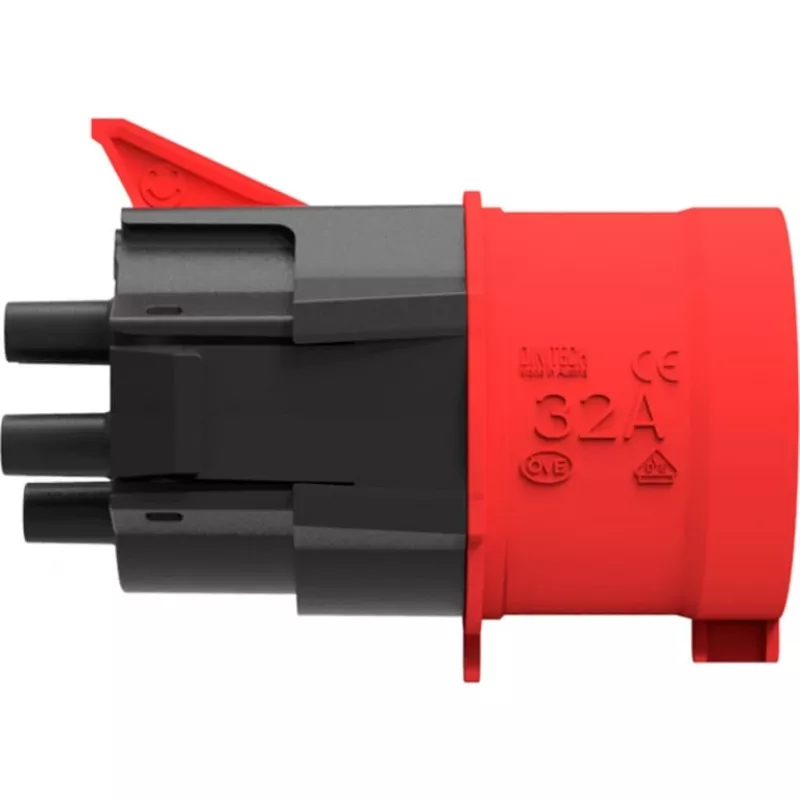

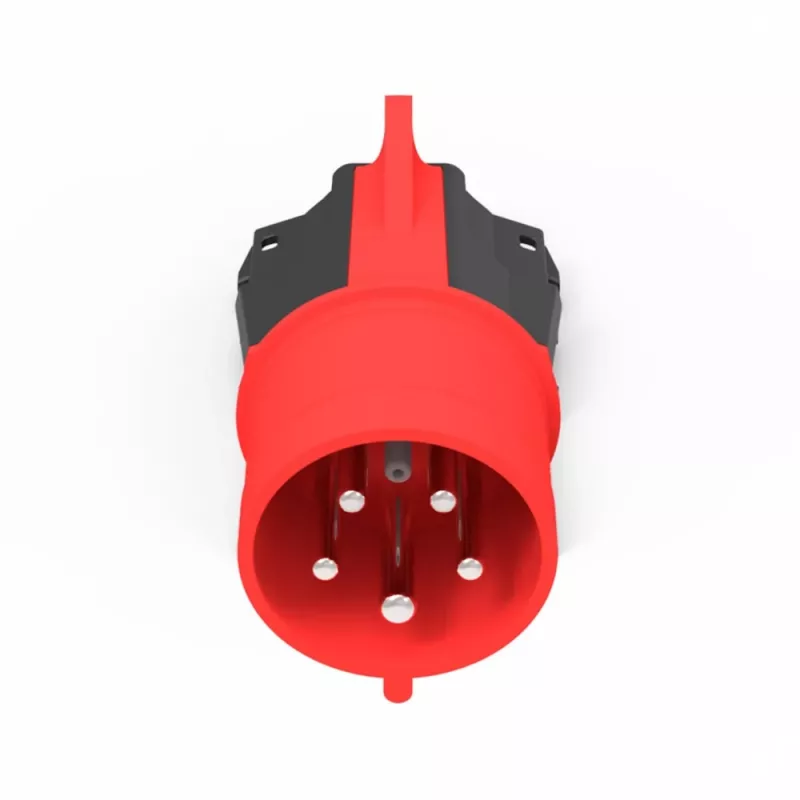

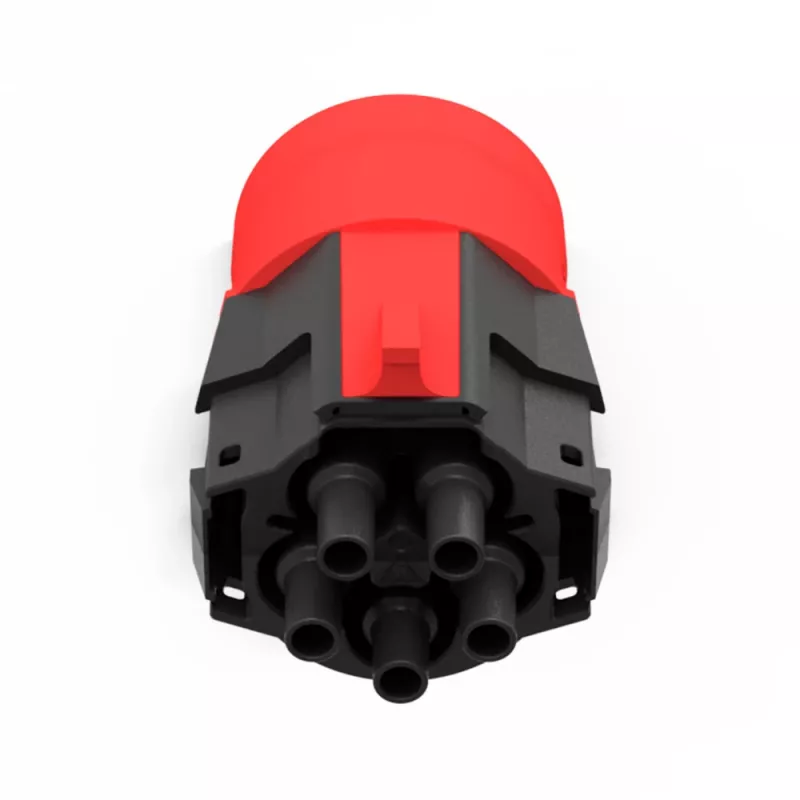

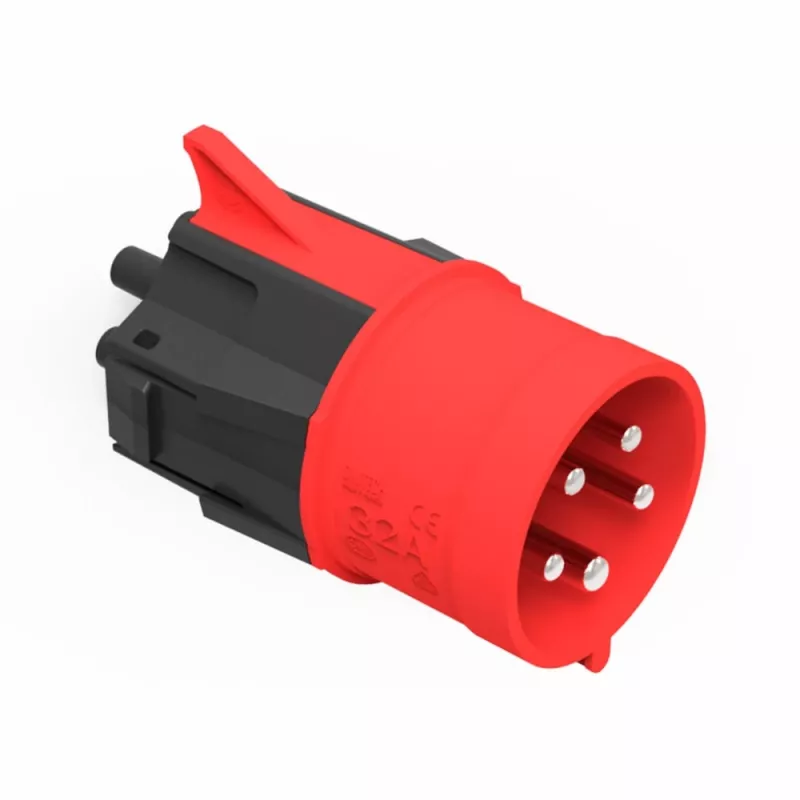

NRGkick smart attachment 32A 5pole
Smart attachment 32A 5‑pole for use with the NRGkick charging unit, allowing connection to three‑phase 32A sockets (max. 32A / 22 kW). This adapter enables the normally permanently connected NRGkick KfW charging unit to be used with compatible three‑phase sockets.

Advantages

The smart attachment continuously measures the temperature on each phase pin and communicates this data to the NRGkick unit, enabling automatic current regulation if a socket overheats. The connector system prevents arcing by interrupting current before contacts separate. Contact elements are silver‑plated to maintain reliable electrical contact over many mating cycles. The attachment is automatically recognised by the NRGkick unit and transmits country‑specific current limits and temperature information.

Suitable for

• Connecting NRGkick charging units to three‑phase 32A sockets
• Charging electric vehicles at up to 32A / 22 kW where a 5‑pole socket is available
• Situations requiring temperature monitoring and automatic current regulation for safer charging

Key specifications

• Type: Smart attachment 32A 5‑pole
• Maximum current: 32 A (max. 22 kW)
• Compatibility: NRGkick KfW charging units
• Features: Per‑phase temperature measurement, automatic attachment recognition, arcing prevention
• Contact finish: Silver‑plated contacts

How to use

Attach the smart 32A 5‑pole adapter to the NRGkick connector unit as instructed by the NRGkick user manual, then connect the adapter to a compatible three‑phase 32A socket. The NRGkick unit will automatically detect the attachment, read temperature and current limit data, and control charging accordingly. Ensure the socket and wiring are installed according to local electrical regulations before use.

Recommendations

Use only on properly installed and certified three‑phase 32A sockets. Regularly inspect the adapter and socket for visible damage or signs of overheating. If the socket becomes excessively warm, stop charging and have the installation checked by a qualified electrician.
