Pistosaha Einhell TC-JS 80/1 Kit

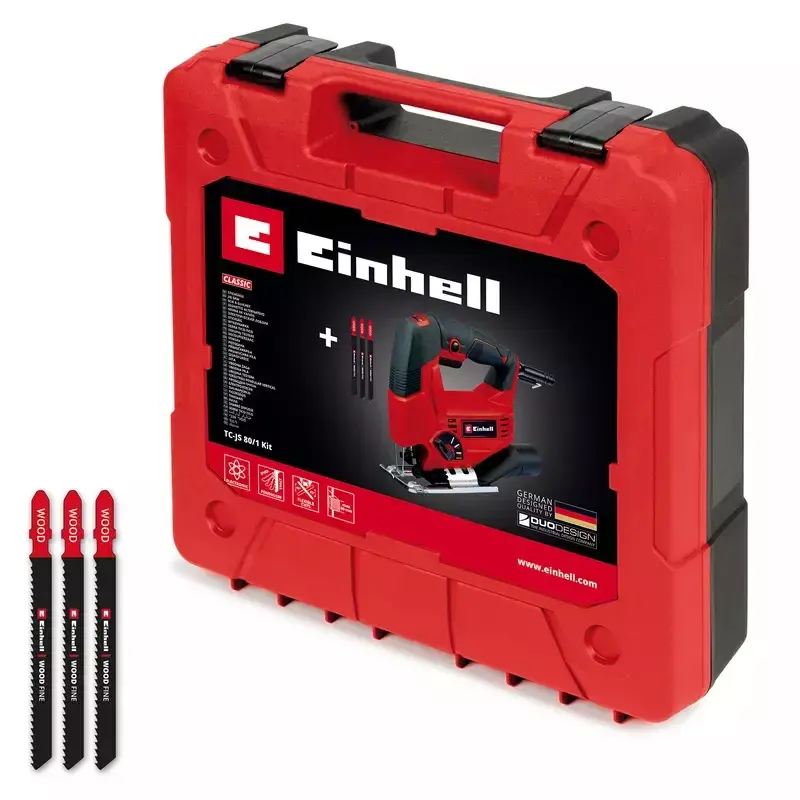

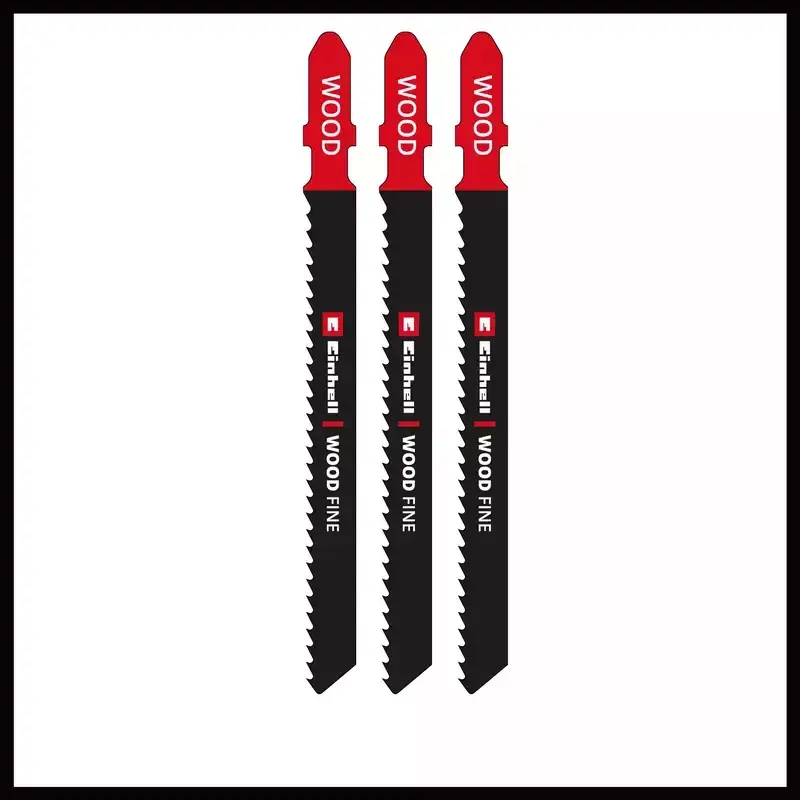

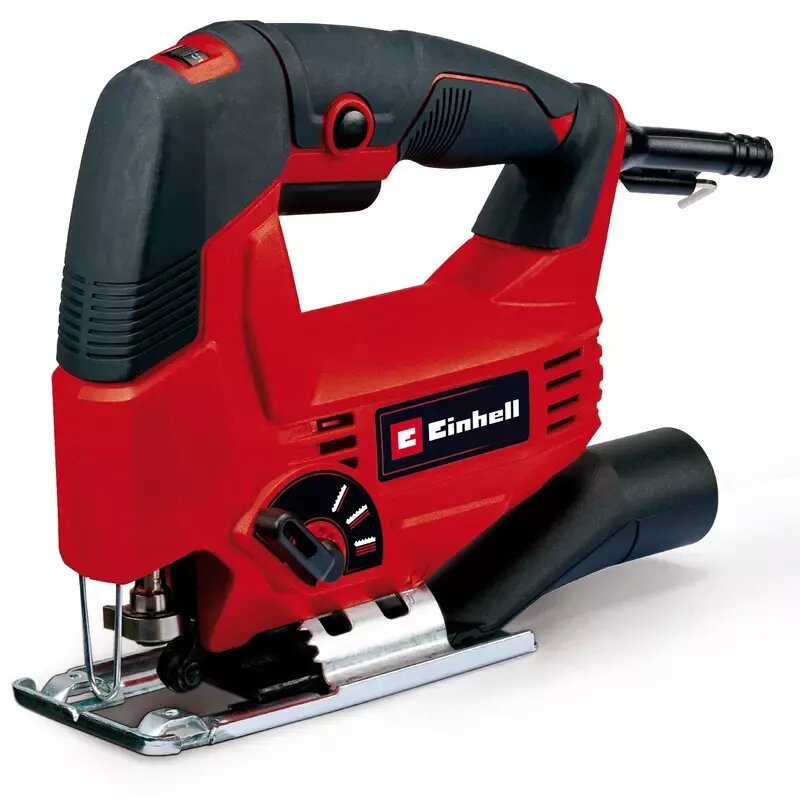

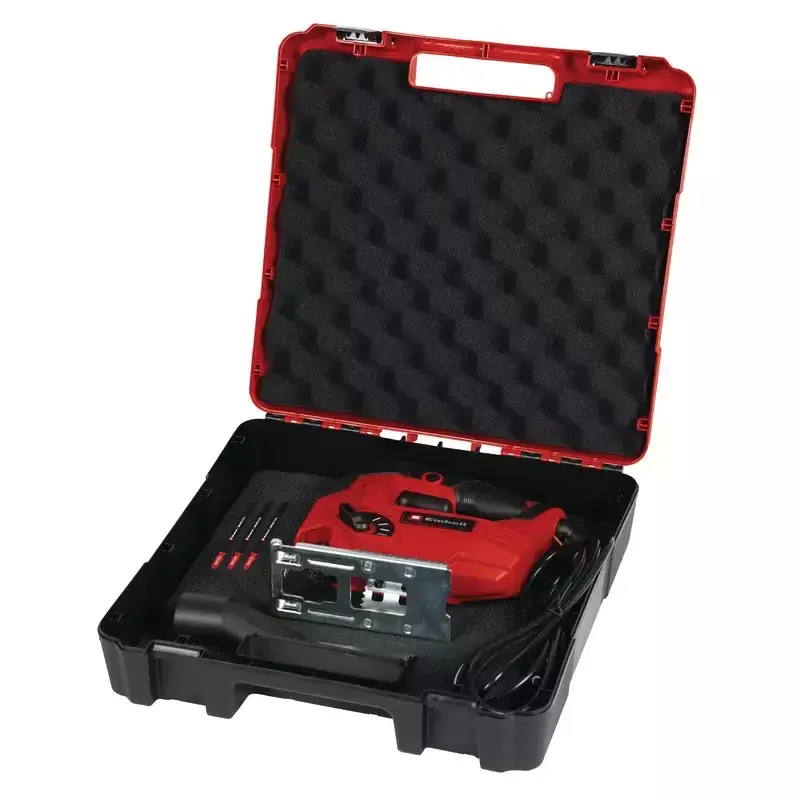

The Einhell jigsaw TC-JS 80/1 Kit is a compact, mains-powered jigsaw designed for workshop and home DIY tasks. Driven by a 550 W motor, it delivers a smooth running performance with a free-running speed up to 3,000 rpm and a stroke height of 20 mm. The jigsaw cuts up to 80 mm in wood and up to 10 mm in steel and features a pivoting saw shoe that allows mitre cuts up to 45°. Delivery includes three T-shank saw blades for wood and plastic and a practical transport and storage case.

Advantages

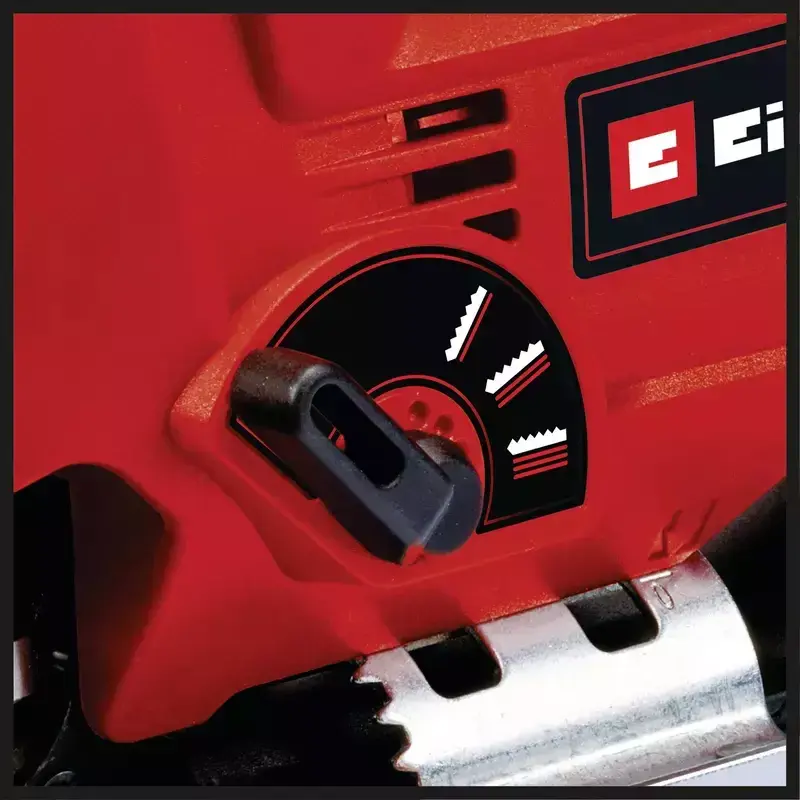

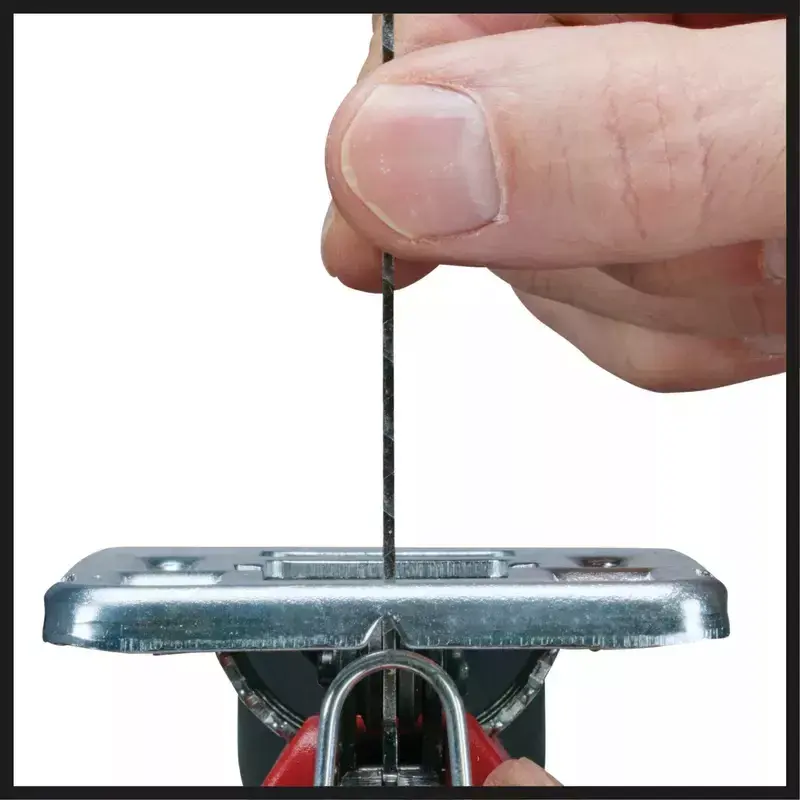

The tool offers an adjustable 4-step pendulum stroke for adapting cutting aggressiveness and speed to the material. A speed electronics system enables fine control of the cutting speed. The universal saw blade holder accepts both T- and U-shank blades for quick, tool-free blade changes. A 36 mm extraction connection allows connection of a wet/dry vacuum for clear visibility and effective dust removal. Ergonomic Softgrip surfaces, low weight (approx. 1.81 kg) and a compact top-handle design support comfortable handling during extended use.

Suitable for (tasks / use cases)

• General DIY wood cutting and trimming
• Cutting plastics and laminates
• Light metal cutting (up to 10 mm steel)
• Bevel and mitre cuts up to 45° for furniture and joinery work
• Workshop projects requiring dust extraction connection

Key specifications

• Brand: EINHELL
• Model: TC-JS 80/1 Kit (MPN 4321157)
• Power: 550 W
• No-load speed: up to 3,000 rpm
• Stroke height: 20 mm
• Cutting depth: 80 mm (wood), 10 mm (steel)
• Pendulum stroke: 4-step adjustable
• Bevel capacity: 0–45°
• Blade shank compatibility: T-shank and U-shank
• Extraction connection: 36 mm
• Weight: approx. 1.81 kg
• EAN: 4006825661668

How to use

Fit a suitable saw blade (T- or U-shank) into the universal blade holder and secure it with the quick-change mechanism. Select the appropriate pendulum stroke setting and speed according to the material, starting at a lower speed for metals and harder materials and a higher speed for softwood and plastics. Align the baseplate on the workpiece and, if required, set the shoe to the desired bevel up to 45°. Use the 36 mm extraction connection to attach a compatible vacuum cleaner for dust removal and improved visibility while cutting.

Recommendations

For prolonged precise work, use sharp blades matched to the material and connect a wet/dry vacuum to the 36 mm port to remove dust and chips. When cutting metal, use the lowest suitable speed and appropriate metal-cutting blades. Always secure the workpiece and wear suitable eye and hearing protection.
