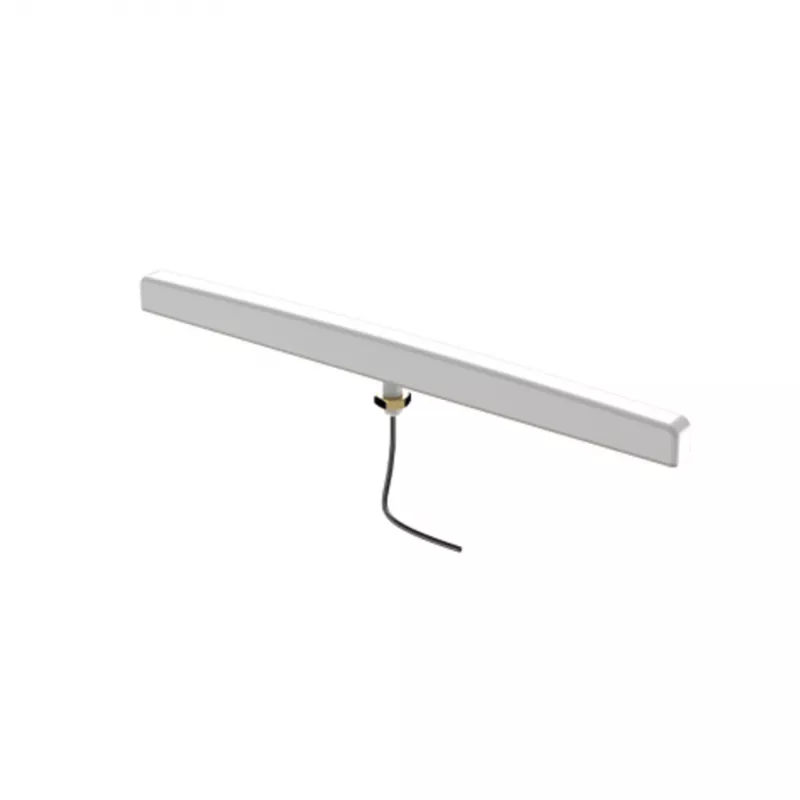

Poynting A-DASH-0003-V1 ultraohut LTE/GSM-antenni valkoinen SMA-pistoke

The Poynting A-DASH-0003-V1 is a high-performance, ultra-low profile LTE/GSM antenna designed for reliable connectivity in a compact form factor. With a sleek white finish and adhesive mounting, it integrates seamlessly into any environment, providing omnidirectional coverage for 2G, 3G, and 4G networks.

Advantages

This antenna offers exceptional versatility with its ultra-low profile design, making it ideal for applications where space is limited. The adhesive mounting ensures easy installation on flat surfaces, while the IP65 rating guarantees durability against dust and water ingress. With a wide frequency range covering 690-960 MHz and 1710-2700 MHz, it supports multiple cellular bands, ensuring robust signal reception.

Suitable for

• Routers and modems requiring external antenna connectivity
• IoT and M2M applications
• Vehicles and mobile installations
• Indoor and outdoor use where a discreet antenna is needed

Key specifications

• Antenna Type: LTE/GSM Antenna
• Frequency Range: 690-960 MHz (GSM/3G), 1710-2700 MHz (LTE)
• Peak Gain: 2 dBi (GSM/3G), 3 dBi (LTE)
• VSWR: < 2.5:1
• Polarization: Linear
• Radiation Pattern: Omni-directional
• Input Impedance: 50 Ohm
• Connector: SMA Male
• Cable: RG174, 2 meters
• Mounting: Adhesive (3M Tape)
• Enclosure Material: UV Stable ABS
• Color: White
• Operating Temperature: -40°C to +80°C
• Ingress Protection: IP65
• Max Input Power: 10 W

Recommendations

For optimal performance, mount the antenna on a clean, flat surface with the adhesive pad. Ensure the SMA connector is securely attached to your device. This antenna is compatible with most routers and modems that support external antennas with SMA Male connectors.
