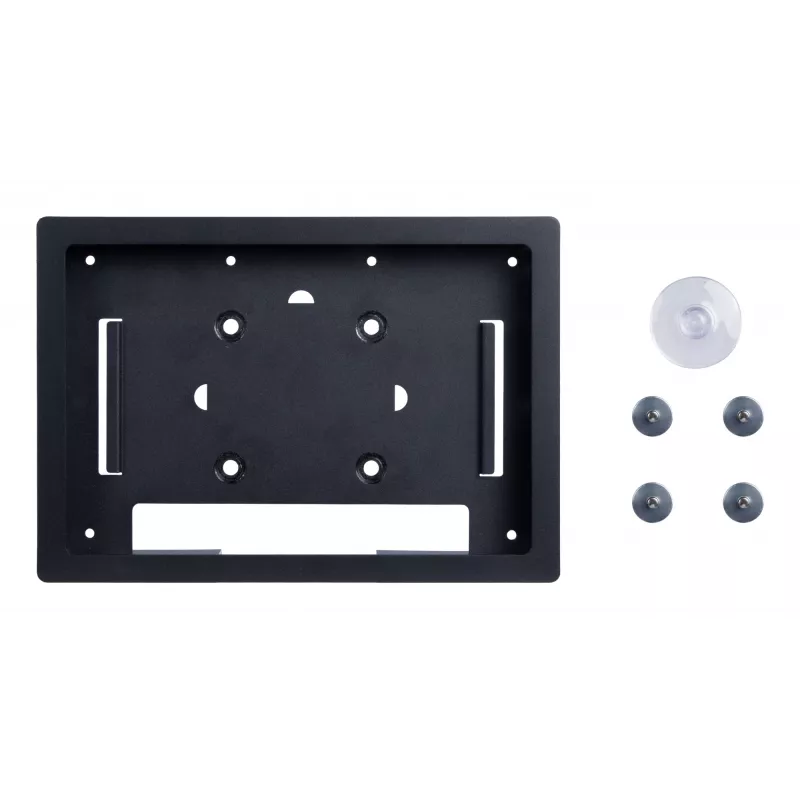

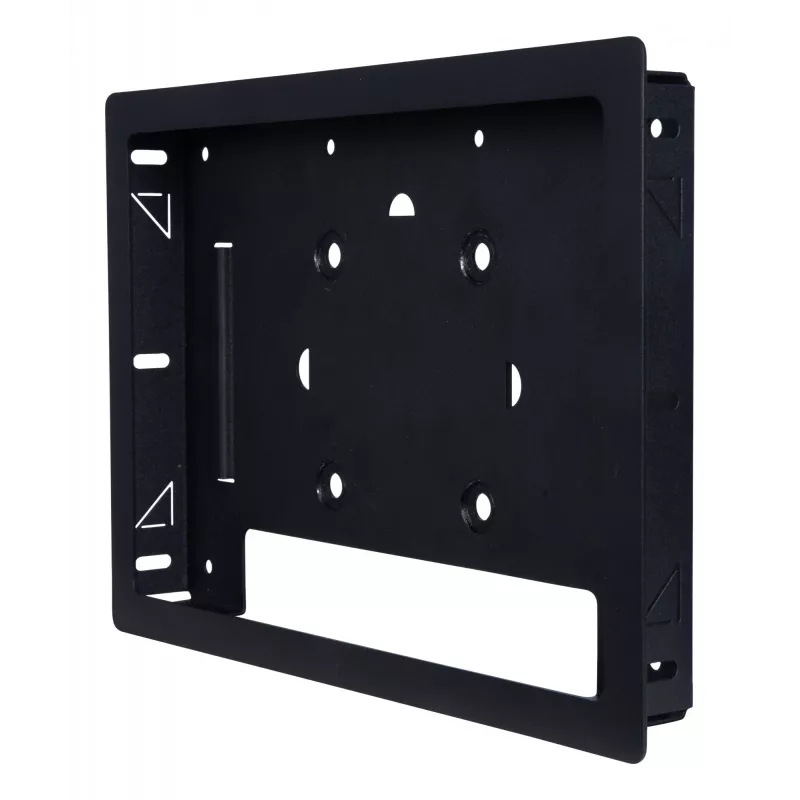

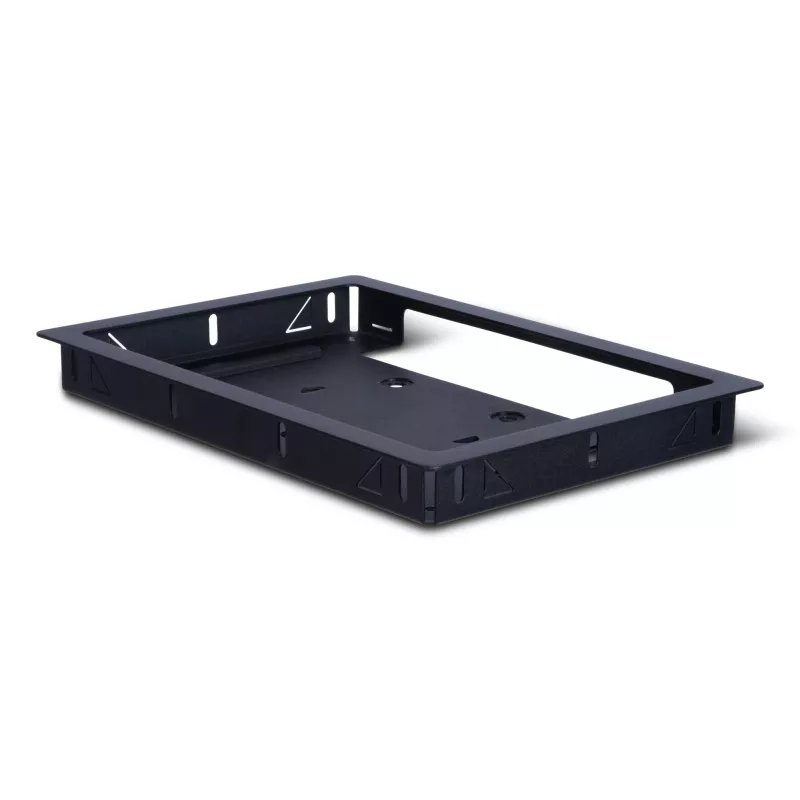

ProDVX FM-10S is a black metal flush monitor mount designed for fixed installations of compatible APPC-10S-series displays. The mount measures 270 × 188 × 27.4 mm and weighs 0.67 kg, and is supplied as a single unit with a 2-year warranty. Its low-profile design allows the screen to sit flush with the mounting surface, and the construction provides a secure and stable attachment for retail, kiosk, digital signage and POS environments.

Advantages

The FM-10S mount is made from metal for rigidity and long-term durability while maintaining a slim 27.4 mm depth for discreet installations. Predefined mounting holes and compatibility with drywall fixtures simplify installation in plasterboard or other substrates. The flush design reduces protrusion from the wall and keeps the display close to the mounting surface. The mount is removable to allow easy access for maintenance or replacement of the display without altering the installation.

Suitable for

• Fixed mounting of APPC-10S-series monitors in retail displays
• Installation of screens in self-service kiosks and terminals
• Digital signage applications in public and commercial spaces
• POS installations where a low-profile monitor fit is required

Key specifications

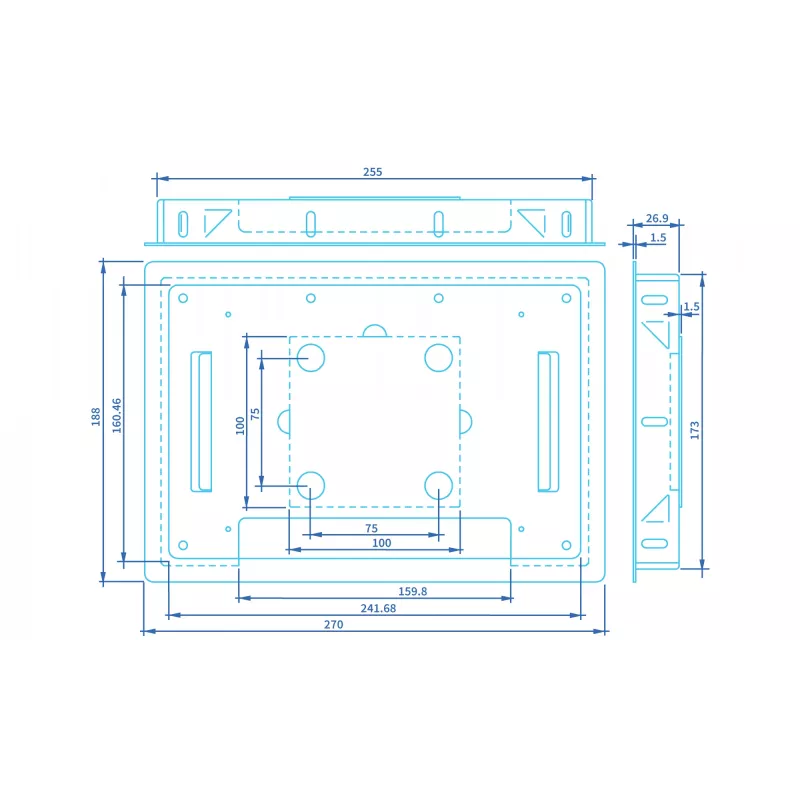

• Dimensions: 270 mm (width) × 188 mm (height) × 27.4 mm (depth)
• Weight: 0.67 kg
• Material: metal construction for secure mounting
• Colour: black
• Pack content: 1 piece per pack
• Warranty: 2 years
• Installation type: flush mount suitable for drywall and similar substrates
• Serviceability: removable for maintenance

How to use

Mark the cut-out and fixing points on the mounting surface according to the monitor and FM-10S dimensions. Prepare drywall or the chosen substrate and install appropriate fixtures for the mounting holes. Secure the FM-10S flush into the prepared opening using suitable screws and anchors for the substrate. Attach the compatible APPC-10S-series display to the mount following the monitor manufacturer’s instructions, then verify that the assembly is level and stable. To perform maintenance, detach the display and remove the mount as needed.

Recommendations

Use appropriate drywall anchors or structural supports matched to the wall material and load. Ensure the selected APPC-10S monitor model is compatible with the FM-10S mounting pattern before installation. For public or high-traffic locations, verify that screws and fixtures are tightened and periodically inspected to maintain a secure installation.
