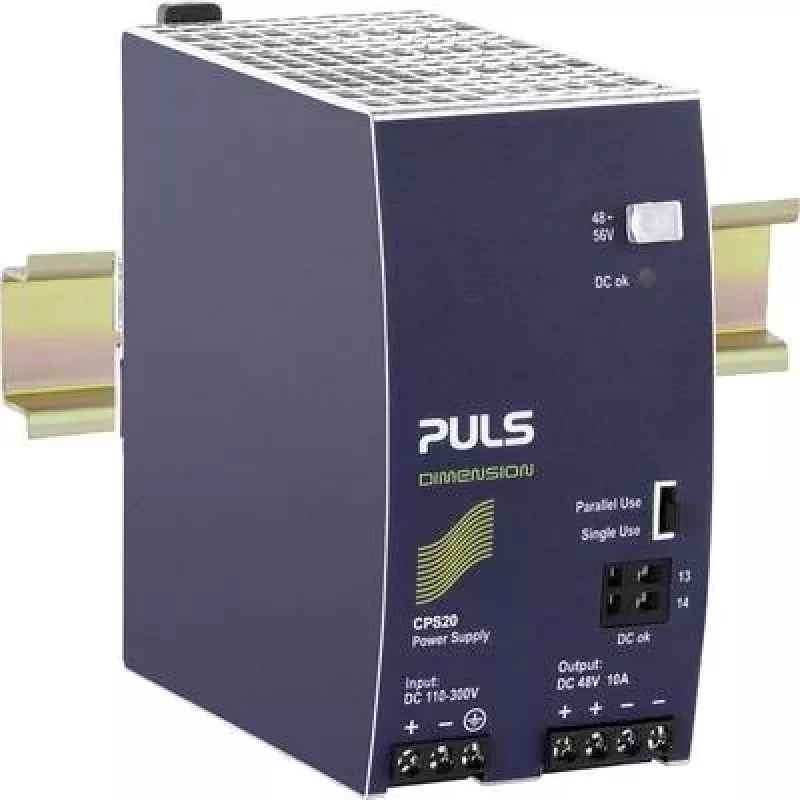

PULS DIMENSION CPS20.481-D1 DIN-kiskovirtalähde 48V DC 10A 480W

DIN rail power supply delivering 48 V DC at 10 A with 480 W output power, featuring active power factor correction and convection cooling.

Advantages

High efficiency up to 95.2% reduces energy costs and heat generation. Active PFC with power factor >0.99 ensures compliance with mains quality standards. Wide operating temperature range from -25°C to +70°C allows use in demanding environments. Adjustable output voltage from 48 V to 56 V DC provides flexibility for various applications. Robust protection features including overload, short-circuit, overvoltage, and overtemperature safeguard connected equipment.

Suitable for

• Industrial automation systems
• Process control cabinets
• Telecommunications equipment
• Building automation
• Test and measurement setups

Key specifications

• Output voltage: 48 V DC (adjustable 48-56 V DC)
• Output current: 10 A
• Output power: 480 W
• Input voltage: 100-240 V AC (auto-select) or 110-150 V DC
• Efficiency: up to 95.2%
• Ripple and noise: < 50 mVpp
• Hold-up time: > 20 ms at 230 V AC, 480 W
• Mounting: DIN rail TS35/7.5 or TS35/15
• Cooling: convection
• Connections: screw terminals for input and output

Recommendations

Verify that the input voltage range matches your mains supply. Ensure adequate ventilation around the unit to maintain performance at high ambient temperatures. Use appropriate wire gauges for the screw terminals to handle the rated current.
