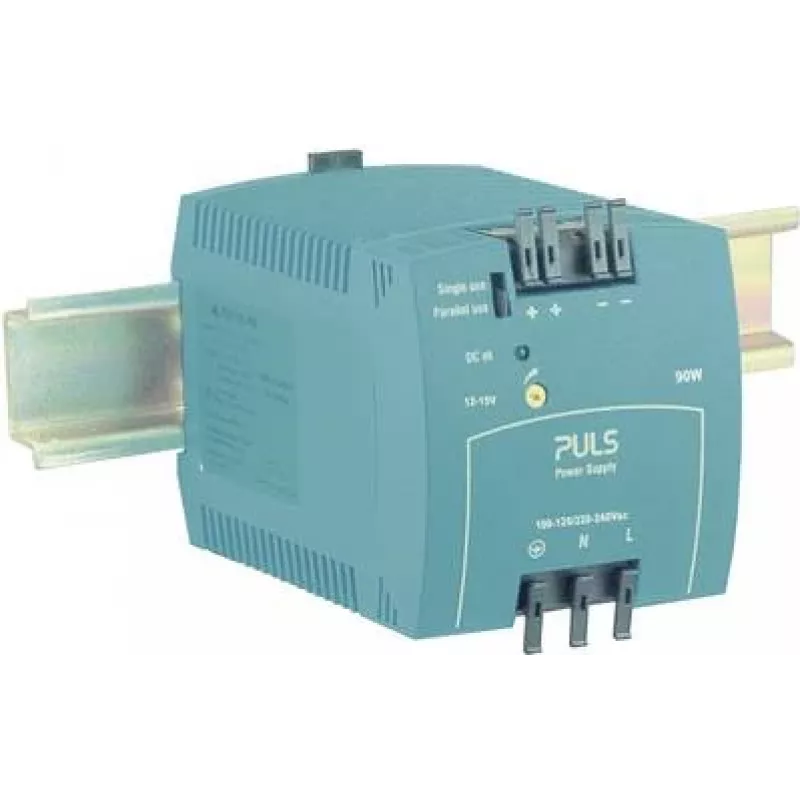

PULS MiniLine ML100.102 DIN-kiskovirtalähde 12V DC 7,5A 90W

In industrial control cabinets, the PULS MiniLine ML100.102 provides reliable 12V DC power for automation systems, sensors, and small machinery. Its DIN rail mounting and compact size make it a practical choice for panel builders and machine integrators.

Key specifications

• Output: 12V DC, 7.5A, 90W
• Input: 85-264V AC or 90-300V DC
• Efficiency: 90.5% at 230V AC
• Operating temperature: -10°C to +70°C
• Mounting: DIN rail TS35/7.5 or TS35/15
• Protection: overload (hiccup mode), short-circuit, overvoltage 13.8-15.0V
• Ripple & noise: <50 mVpp
• Hold-up time: >20 ms
• Connection: screw terminals
• Cooling: convection
• Housing: plastic
• Safety approvals: UL 60950-1, UL 508, IEC/EN 60950-1
• MTBF: >1,000,000 h at 40°C

Why choose it

The ML100.102 offers high efficiency and robust protection features in a compact DIN rail housing. Its wide input voltage range and convection cooling allow use in diverse industrial environments without forced airflow.

Ideal use cases

• Powering PLCs and I/O modules
• Supplying sensors and actuators
• Small motor drives and control circuits

Good to know

The unit operates with natural convection, so no internal fan is required. The plastic housing keeps weight low while providing adequate insulation for panel installation.
