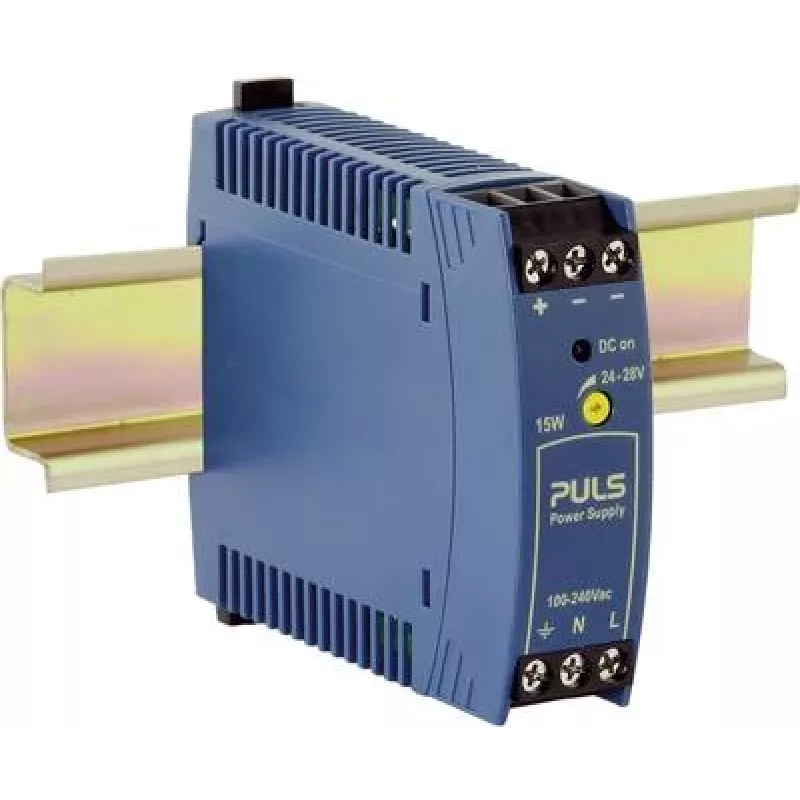

PULS MiniLine ML15.241 DIN-kiskokiinnitteinen virtalähde 24V DC 0,63A 15W

DIN rail power supply unit delivering a regulated 24 V DC output at up to 0.63 A (15 W) from a universal 85–264 V AC or 90–300 V DC input. Its high efficiency of 86.5% and compact plastic housing make it suitable for control cabinets and industrial automation applications.

Advantages

Wide-range input, adjustable output voltage (24–28 V DC), and comprehensive protection against overload, short circuit, overvoltage, and overtemperature. High MTBF of over 1,200,000 hours ensures long-term reliability. Screw terminals provide secure wiring.

Suitable for

• Industrial control systems
• Building automation
• Process instrumentation
• DIN rail installations requiring a compact 15 W power supply

Key specifications

• Output: 24 V DC, 0.63 A, 15 W
• Input: 85–264 V AC / 90–300 V DC, 50–60 Hz
• Efficiency: 86.5%
• Ripple & noise: <50 mVpp
• Operating temperature: -10°C to +70°C
• Hold-up time: >20 ms at 230 V AC full load
• Isolation voltage: 3 kV AC input/output
• Degree of protection: IP20
• Approvals: UL, cUL, CE, CB Scheme, RoHS

Recommendations

For reliable 24 V DC power in space-constrained DIN rail applications, the PULS MiniLine ML15.241 offers proven performance and robust protection.
