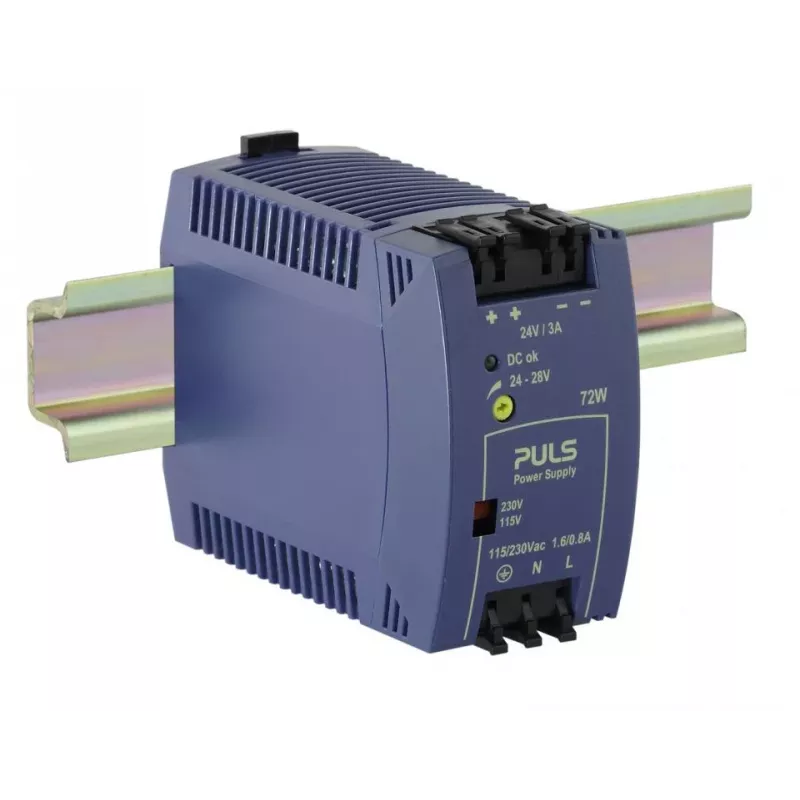

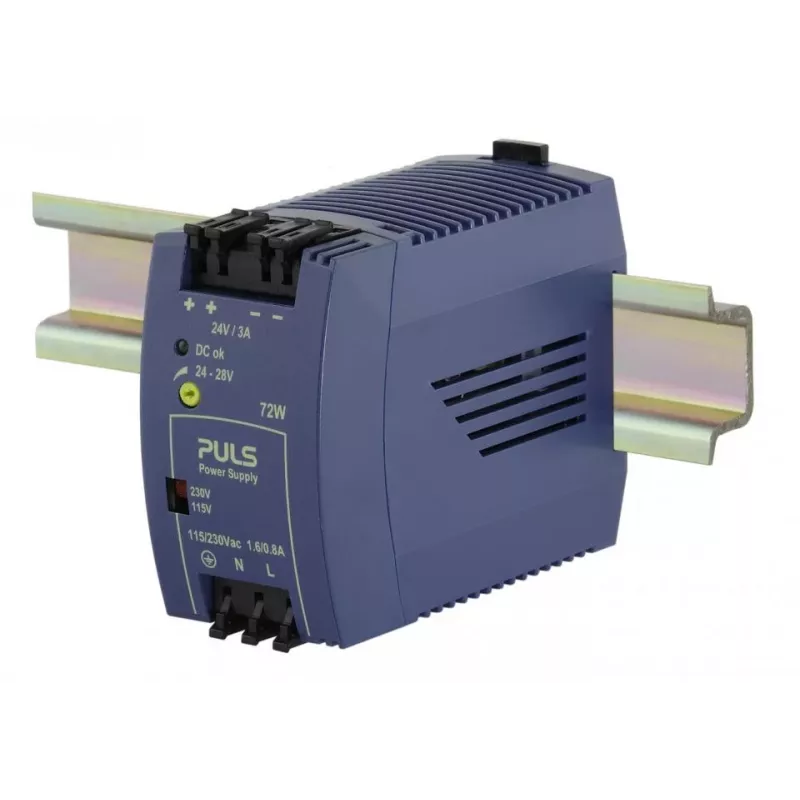

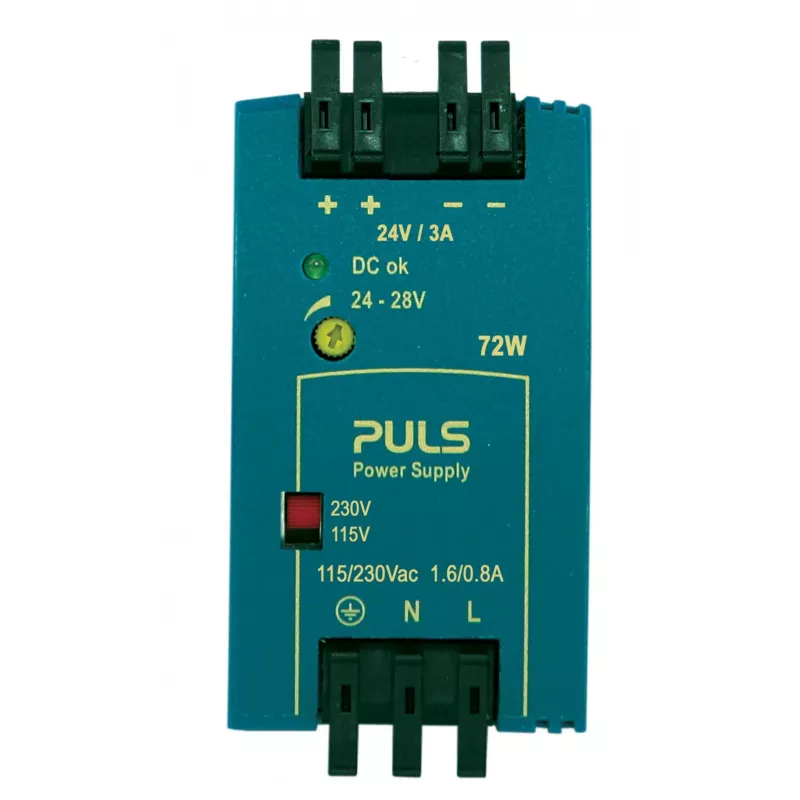

PULS MiniLine ML70.100 DIN-kiskovirtalähde 24V DC 3A 72W

In industrial control cabinets and building automation panels, the PULS MiniLine ML70.100 provides reliable 24 V DC power for sensors, actuators, and controllers. This DIN rail switching power supply delivers 3 A at 24 V DC, with a total output of 72 W, and is designed for efficient operation in compact spaces.

Key specifications

• Output voltage: 24 V DC
• Output current: 3 A
• Output power: 72 W
• Input voltage: 100–240 V AC (110–150 V DC)
• Efficiency: 90.5% at 230 V AC
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -10 to +70 °C
• Protection class: IP20
• Overload protection: constant current, auto-recovery
• Short circuit protection: yes
• Overvoltage protection: yes
• Connection: screw terminals
• Hold-up time: >20 ms at 230 V AC
• Output ripple and noise: <50 mVpp
• Cooling: convection
• Housing material: plastic

Why choose it

The ML70.100 combines high efficiency with a compact footprint, reducing heat generation and energy costs. Its wide input voltage range and robust protection features make it suitable for demanding industrial environments.

Ideal use cases

• Machine control systems
• Building automation
• Process instrumentation
• Test and measurement equipment

Good to know

The unit is convection cooled, eliminating the need for a fan and reducing maintenance. It is certified to UL 508, UL 60950-1, IEC 60950-1, CE, and RoHS.
