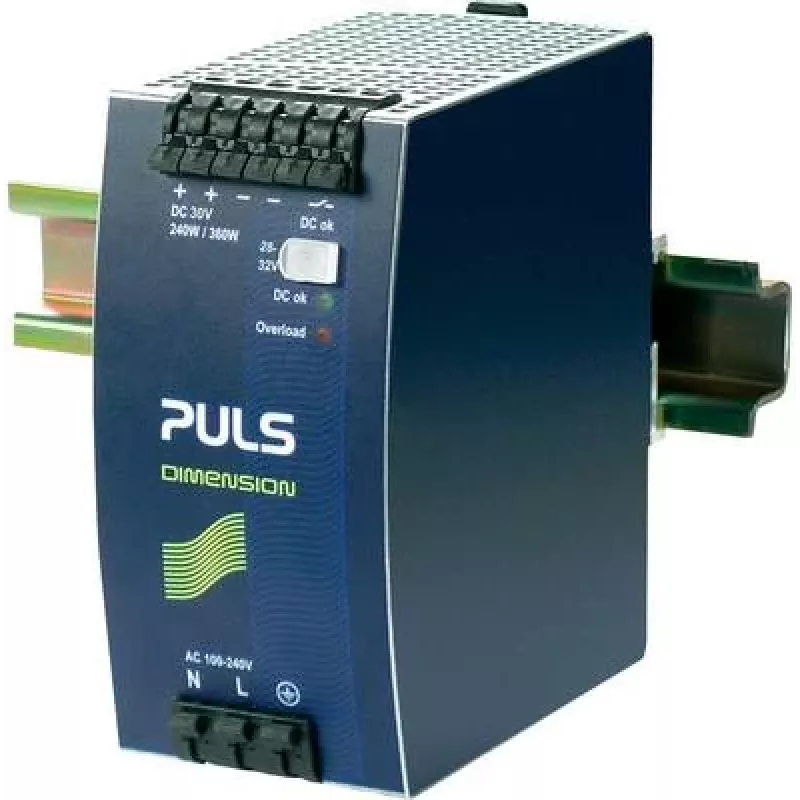

PULS QS10.301 DIN-kiskovirtalähde 30V 8,6A 240W

The PULS QS10.301 stands out as a high-efficiency DIN-rail power supply, delivering 240W at 30V with a compact design and active power factor correction. It is engineered for demanding industrial applications where reliability and space savings are critical.

Highlights

• Output: 30V DC, 8.6A, 240W
• Wide input range: 100-240V AC auto-select, 110-150V DC
• Efficiency up to 94.0% with active PFC (>0.99)
• Convection cooled, no fan for silent operation
• DIN-rail mountable on TS35/7.5 or TS35/15

In daily use

The QS10.301 provides stable 30V DC output with an adjustment range of 24-30V, making it versatile for various loads. Its hold-up time exceeds 20ms at 230VAC, ensuring uninterrupted operation during brief power interruptions. The unit operates reliably from -25°C to +70°C and includes comprehensive protection against overload, short-circuit, overtemperature, and output overvoltage.

Full specifications

• Input voltage (AC): 100-240 VAC (auto-select)
• Input voltage (DC): 110-150 VDC
• Output voltage (nominal): 30 VDC
• Output voltage adjustment range: 24-30 VDC
• Output current (nominal): 8.6 A
• Output power (nominal): 240 W
• Efficiency: up to 94.0%
• Power factor correction: active, >0.99
• Hold-up time: >20 ms (at 230VAC, 240W)
• Output ripple & noise: < 50 mVpp
• Mounting type: DIN-rail (TS35/7.5 or TS35/15)
• Operating temperature range: -25°C to +70°C
• Cooling method: convection cooled (no fan)
• Protection features: overload, short-circuit, overtemperature, output overvoltage
• Certifications & approvals: UL, cUL, CE, CB Scheme, ATEX, IECEx, Marine (GL, ABS, DNV, LR, RINA)

Final note

With its high efficiency and robust design, the PULS QS10.301 is an excellent choice for industrial control systems, automation, and other demanding applications.
