Pulsar AWO453 laajennuskotelo - valkoinen (RAL 9003)

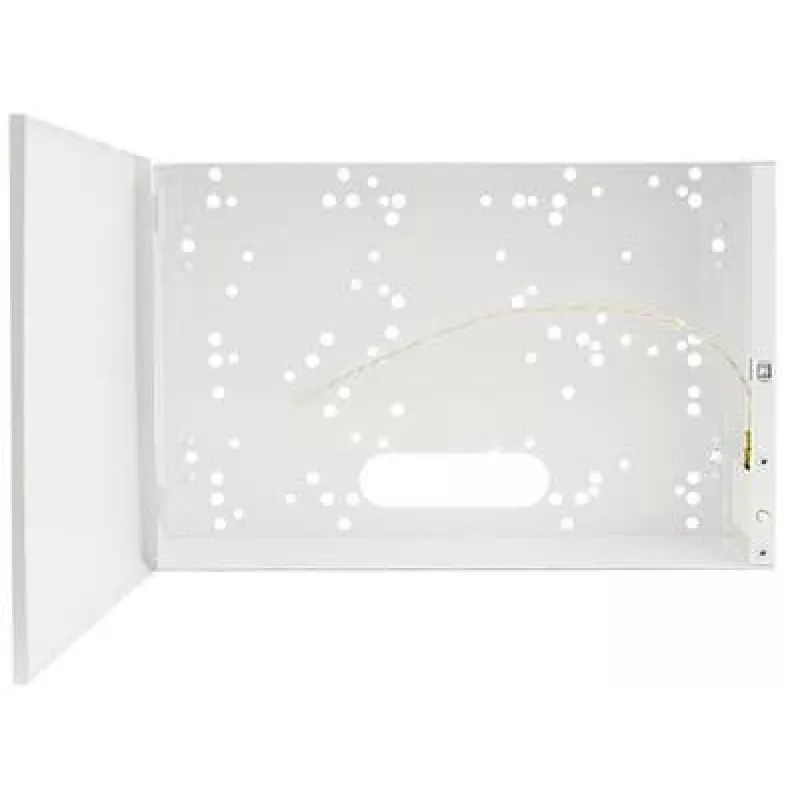

The Pulsar AWO453 is a robust metal enclosure designed for expanding security systems, access control, and CCTV installations. Manufactured from 0.8 mm thick steel with a white RAL 9003 finish, this surface/wall-mount enclosure provides a secure housing for expansion modules. It features a key lock with two keys, tamper protection via microswitch, ventilation openings, and multiple cable entries. The IP20-rated unit is suitable for indoor use in temperatures from -10°C to +40°C.

Advantages

Durable steel construction ensures long-lasting protection for sensitive electronics. The integrated tamper microswitch enhances security by detecting unauthorized access. Ventilation openings prevent overheating, while multiple cable entries simplify wiring. The key lock provides controlled access, and the universal compatibility makes it ideal for various expansion modules.

Suitable for

• Security system installers needing additional module housing
• Access control system expansions
• CCTV system component enclosures
• Indoor wall-mounted equipment protection

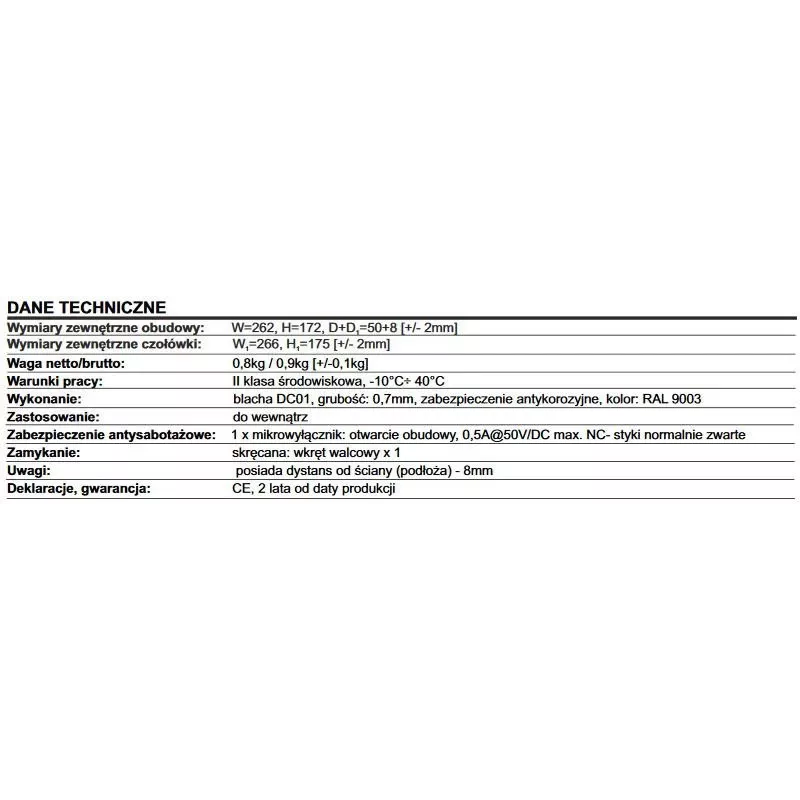

Key specifications

• Enclosure Type: Metal Enclosure
• Material: Steel
• Sheet Metal Thickness: 0.8 mm
• Color: White (RAL 9003)
• Mounting Type: Surface / Wall Mount
• Application: Security Systems, Access Control, CCTV
• Compatibility: Universal for Expansion Modules
• Tamper Protection: Yes (Microswitch)
• Lock Type: Key Lock
• Number of Keys: 2
• IP Protection Class: IP20
• Ventilation: Yes (Ventilation Openings)
• Cable Entries: Yes (Multiple)
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 20% to 90%
• Certifications: CE, RoHS
• Power Supply Included: No

Recommendations

For optimal security, mount the enclosure in a dry indoor location and use the included keys to lock it. Ensure all cable entries are properly sealed to maintain IP20 protection. Pair with compatible Pulsar expansion modules for seamless integration.
