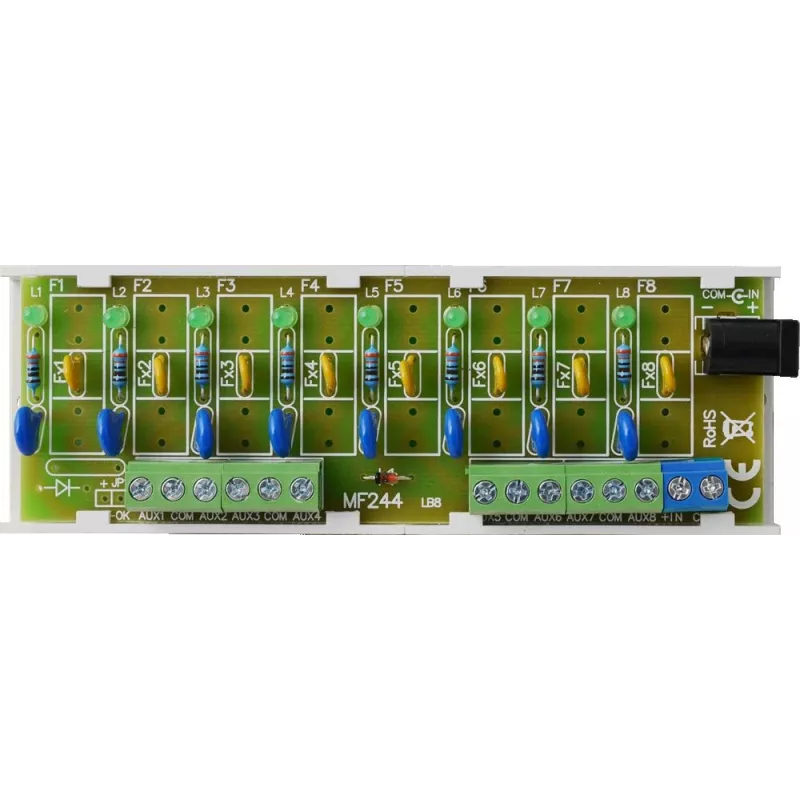

PULSAR AWZ577 sulakemoduuli 8-kanavainen 10-30V DC 8A

The PULSAR AWZ577 is a professional 8-channel fuse module designed for reliable power distribution in low voltage DC systems. It accepts an input voltage from 10V to 30V DC and provides unregulated output (equal to input voltage) across eight individually fused channels, each rated at 1A (with included F1A glass fuses). The total maximum output current is 8A. This module is ideal for CCTV, access control, alarm systems, and other security or automation applications requiring organized power distribution with overcurrent protection.

Advantages

Each channel is protected by a standard 5x20mm glass fuse, allowing easy replacement and clear visual indication of fuse status. The module features eight LED indicators, one per channel, for quick status monitoring. Screw terminals ensure secure and easy wiring. The compact ABS plastic housing with screw mounting simplifies installation in cabinets or on walls.

Suitable for

• CCTV systems
• Access control systems
• Alarm systems
• Low voltage DC power distribution

Key specifications

• Number of Output Channels: 8
• Input Voltage Range: 10V - 30V DC
• Output Voltage: Unregulated (equal to input voltage)
• Max Current per Channel: 1A (with included fuses)
• Total Max Output Current: 8A
• Fuse Type: Glass fuse (F 5x20mm)
• Included Fuse Rating: 1A (F1A)
• Protection Features: Short Circuit Protection (SCP), Overload Protection (OLP)
• Indicators: 8x LED indicators (one per channel)
• Terminal Type: Screw terminals
• Mounting Type: Screw mounting
• Operating Temperature: -10°C to +40°C
• Storage Temperature: -20°C to +60°C
• Relative Humidity: 20% to 90% (non-condensing)
• Housing Material: ABS Plastic
• Compliance: CE

Recommendations

Use with a regulated DC power supply within the input voltage range. Ensure total load does not exceed 8A. Replace blown fuses with identical 1A 5x20mm glass fuses only.
