Pulsar PSD12050 pöytämallinen hakkurivirtalähde 12V/5A 60W CCTV-käyttöön

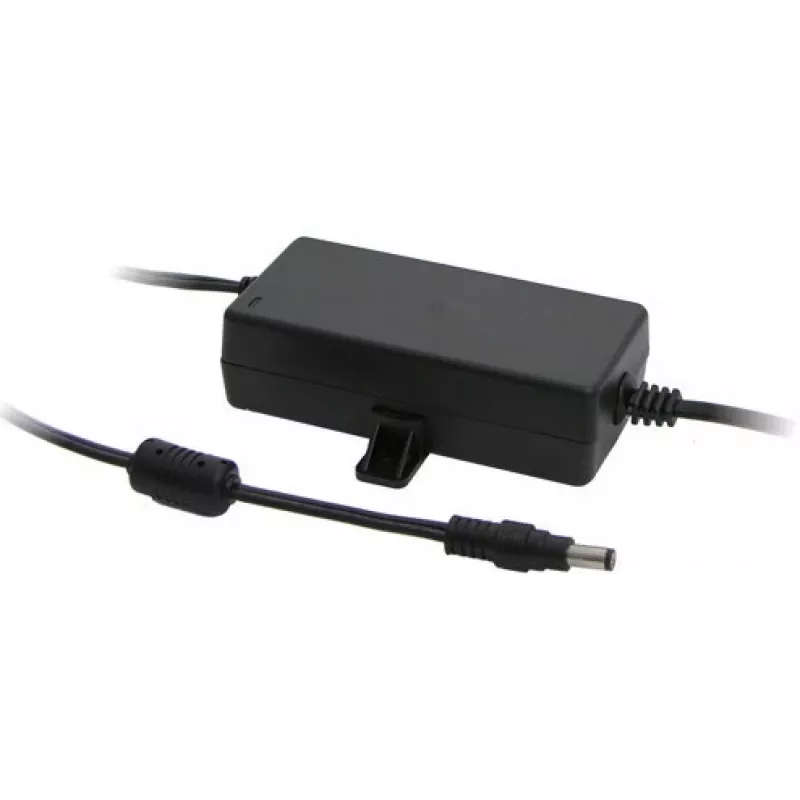

The Pulsar PSD12050 is a high-quality desktop switching power supply designed for CCTV systems and security equipment. It delivers a stable 12V DC output with a maximum current of 5A (60W), ensuring reliable power for your surveillance devices. The unit features a compact desktop enclosure with passive cooling for silent operation.

Advantages

High efficiency Level VI, low ripple and noise (<120mVp-p), and comprehensive protection features including short circuit, overload, and overvoltage protection. The 1.2m DC cable with 2.1/5.5mm plug provides easy connectivity.

Suitable for

• CCTV cameras and DVRs
• Security equipment
• 12V DC powered devices up to 5A

Key specifications

• Input: 100-240V AC, 50/60Hz
• Output: 12V DC, 5A, 60W
• Efficiency Level VI
• DC connector: 2.1/5.5mm center positive
• Input connector: IEC C14 socket
• Protection: SCP, OLP, OVP
• Cooling: Passive
• Operating temperature: 0°C to +40°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with compatible CCTV equipment. Ensure the total current draw does not exceed 5A.
