Räkkikaappi Lanview RDL20U88BL 20U musta 600 kg IP20

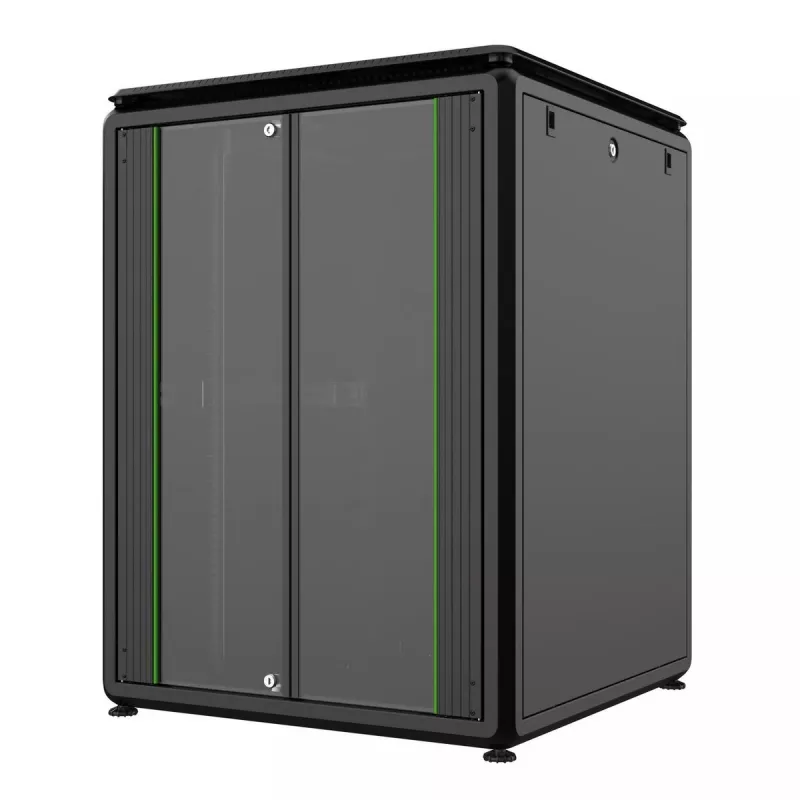

The Lanview RDL20U88BL is a free-standing 20U rack cabinet with external dimensions W:800 x D:800 x H:1075 mm and a maximum load capacity of 600 kg. Designed for indoor use (IP20) and weighing 43 kg, this black cabinet is intended for structured cabling and server installations in offices and system rooms. It features adjustable installation rails, removable panels and doors, and a flatpack option that reduces transport and storage volume.

Advantages

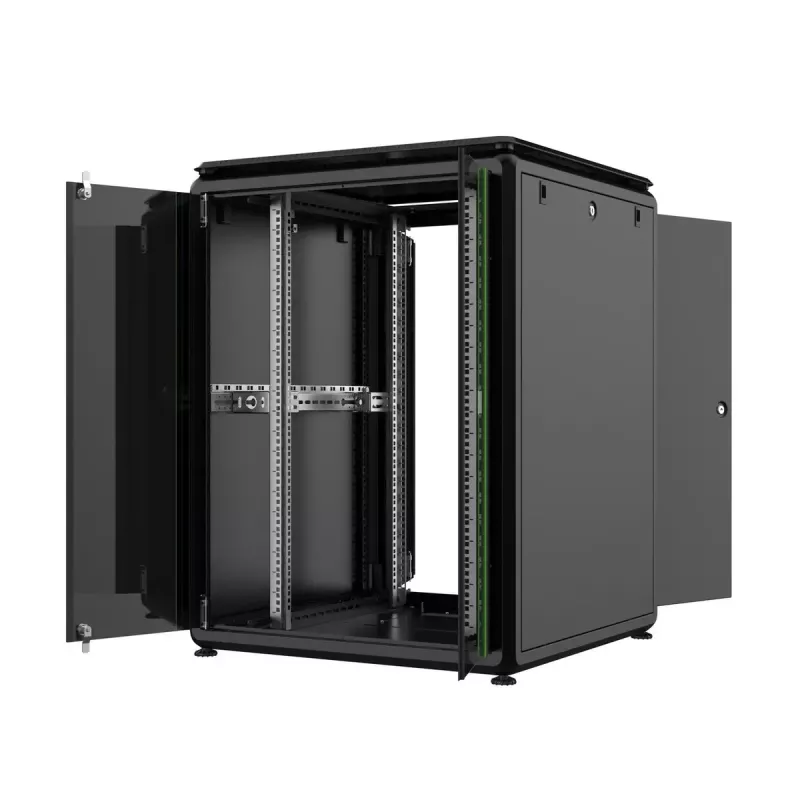

The cabinet combines a robust steel structure with a modern profile design and straightforward assembly that requires only simple tools. Adjustable installation rails allow depth adaptation to different equipment, while the flatpack version saves warehouse and transport space. Cable management is simplified via integrated vertical cable manager support, a wide bottom cable entry with a rubber-edged sliding module, and tie-up side brackets for securing cable runs. Access and security are provided by lockable split front glass doors, lockable metal side panels and a removable rear door with barrel locks.

Suitable for

• Server and network equipment mounting in small to medium-sized racks
• Office and server room structured cabling
• IT closets, telecommunications cabinets, and equipment storage where IP20 indoor protection is sufficient

Key specifications

• Model: Lanview RDL20U88BL (MPN: RDL20U88BL, EAN: 5420016845832)
• Rack capacity: 20U
• External dimensions: W 800 x D 800 x H 1075 mm
• Maximum load: 600 kg
• Weight: 43 kg
• Protection rating: IP20 (indoor use)
• Colour: Black
• 19" mounting standard

How to use

Place the cabinet on a level surface and assemble following the supplied instructions; simple hand tools are sufficient. Adjust the installation rails to the required depth for your equipment, route cables through the wide bottom entry and close the rubber-edged sliding module to protect cables and reduce dust ingress. Install equipment on the 19" rails, use the vertical cable manager integration points and tie-up brackets to secure cable bundles, and lock front, side and rear panels after installation for physical security.

Recommendations

Use the Lanview RDL20U88BL in indoor environments where IP20 protection is adequate; avoid exposure to moisture and dust beyond indoor office conditions. When moving or storing multiple cabinets, prefer the flatpack option to reduce space and transport costs. Ensure total installed equipment weight does not exceed the 600 kg maximum and distribute load evenly across rails.
