Räkkikaappi Lanview RDL36U68BL 36U musta 600 kg IP20

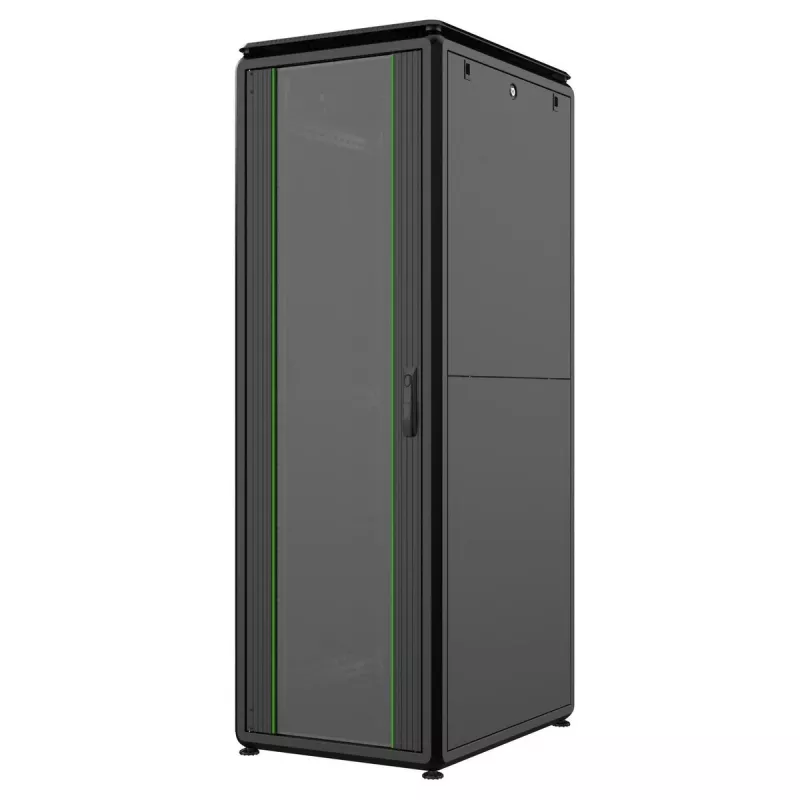

The Lanview RDL36U68BL is a free-standing 36U rack cabinet designed for indoor use with an IP20 protection rating. Constructed from a strong, robust profile, this black cabinet measures W:600 x D:800 x H:1786 mm, supports up to 600 kg of equipment and comes with adjustable installation rails to accommodate varying cabinet depths. The cabinet is supplied in a flatpack option for space-efficient storage and transport and can be assembled or disassembled using simple tools.

Advantages

The cabinet offers a durable structure with top-class profile design and easy assembly, which reduces installation time and warehouse space requirements. Cable management is simplified by structural integration of vertical cable manager modules, a wide bottom cable entry with a rubber-edged sliding module to protect and seal cables, and Tire-Up style side brackets for securing cable runs. Security and access are provided by lockable front doors with horizontally split tempered smoke glass and lockable rear and side panels with barrel-lock mechanisms. Removable, vertically split side panels on taller units enable access in confined spaces.

Suitable for

• Server and network equipment installations (19" rack-mount devices)
• Office IT rooms and system closets
• Telecommunications and network cabinets for small to medium data rooms
• Environments requiring organized cable routing and secure access

Key specifications

• Model: Lanview RDL36U68BL
• Rack capacity: 36U
• Maximum load: 600 kg
• Dimensions (W x D x H): 600 x 800 x 1786 mm
• Weight: 79 kg
• IP rating: IP20 (indoor use)
• Colour: Black
• Front door: Horizontally split, 4 mm tempered anti-static smoke glass with metal frame and handle lock

How to use

Place the flatpack cabinet components where assembly is convenient and follow the included instructions to assemble the frame, attach adjustable installation rails according to the depth required, and secure panels and doors using the barrel locks. Route cables through the wide bottom cable entry, guide them using the rubber-edged sliding module, then close and fix the sliding part to protect cables and limit dust ingress. Install 19" equipment into the rack rails using standard rack mounting hardware and distribute load evenly to maintain cabinet stability.

Recommendations

For best results, install the cabinet on a level surface and secure it to the floor if required for seismic or stability reasons. Use the integrated cable management features to separate power and data cables, and avoid exceeding the 600 kg rated load. Keep front and rear doors closed and locked when equipment is unattended to maintain physical security.
