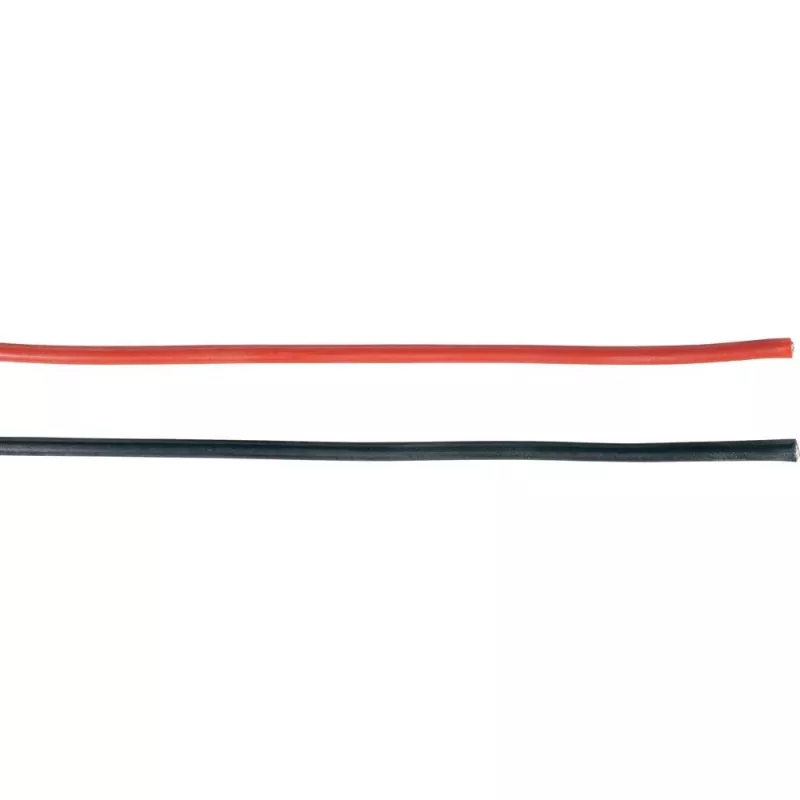

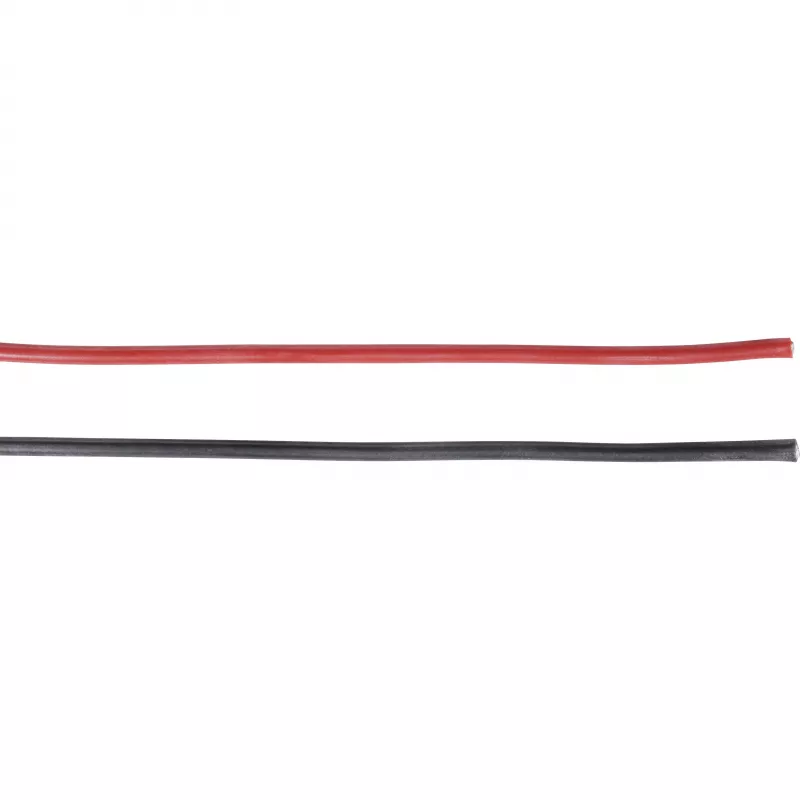

Reely johdin SIFF 1 x 2,5 mm² punainen 5 m

High-temperature wiring in model building and electronics often fails when standard insulation melts or cracks. This stranded wire uses silicone insulation to stay flexible and reliable from -60°C to +180°C, solving the problem of brittle, heat-damaged cables.

Who is it for

Modellers, hobbyists, and technicians who need a single-core, fine-stranded copper conductor for high-temperature environments such as heating elements, industrial electronics, or battery connections.

Main features

• 1 core, 2.5 mm² cross-section, fine-stranded Class 5 copper conductor
• Silicone (SIFF) insulation, red colour
• 5 m length on a coil
• Rated voltage 600 V, maximum current 25 A
• Temperature range -60°C to +180°C
• Outer diameter approx. 4.0 mm
• Resistant to UV, ozone, chemicals, oils, and solvents
• Flame retardant

Specifications

• Wire type: stranded
• Insulation material: silicone (SIFF)
• Conductor material: copper
• Number of cores: 1
• Cross-sectional area: 2.5 mm²
• AWG equivalent: approx. 14 AWG
• Colour: red
• Length: 5 m
• Rated voltage: 600 V
• Temperature range: -60°C to +180°C
• Conductor class: Class 5 (fine-stranded)
• Outer diameter: approx. 4.0 mm
• Max. current rating: 25 A
• Flexibility: high
• Resistance properties: UV, ozone, chemicals, oils, solvents
• Flame retardant: yes
• Application: model building, industrial electronics, high-temperature environments, heating elements
• Packaging: coil
• Max. conductor resistance: 7.98 Ω/km at 20°C

Tips

Strip the silicone insulation carefully with a sharp tool to avoid nicking the fine copper strands. For high-current applications, ensure proper termination and consider the 25 A maximum rating.
