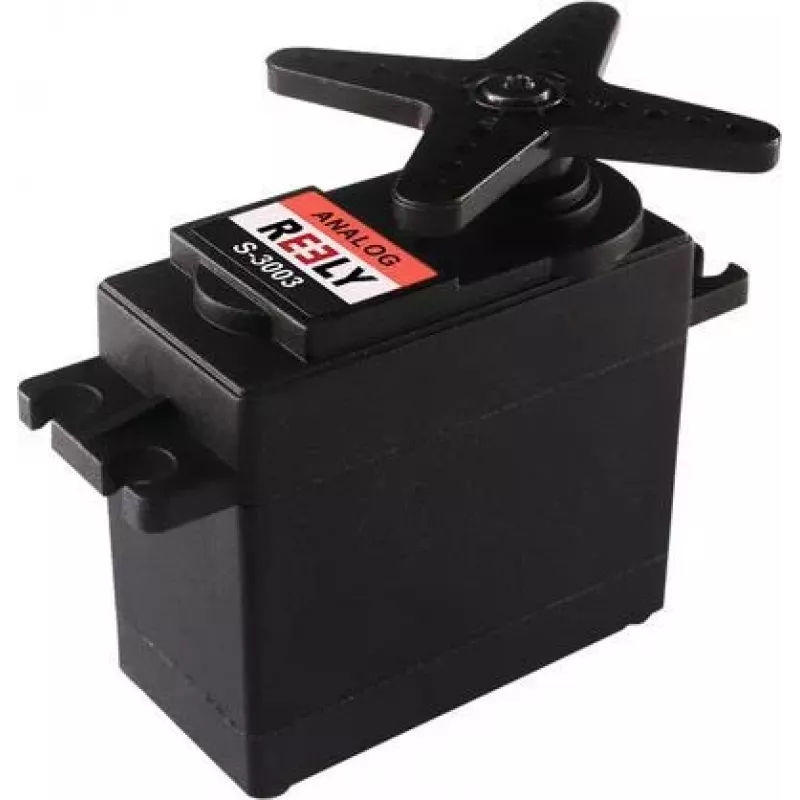

Reely vaki servo analoginen servo muovivaihteisto JR-liitin (RE-6751239)

Analog standard servo with plastic gear train and JR connector system, delivering reliable actuation for RC models. Its core strength is the balanced torque and speed across a 4.8–6 V DC range, making it a dependable choice for standard-size applications.

Advantages

Plastic gears keep the servo lightweight and cost-effective while providing smooth operation. The JR connector system ensures compatibility with a wide range of receivers and extension leads. Bushing bearings offer adequate support for moderate loads, and the brushed motor delivers consistent performance.

Suitable for

• Standard RC cars and trucks
• RC boats and airplanes with moderate control surface loads
• Robotics projects requiring a standard-size analog servo

Key specifications

• Servo type: Analog
• Gear material: Plastic
• Connector system: JR
• Operating voltage: 4.8–6 V DC
• Stall torque (4.8 V): 3.0 kg/cm
• Stall torque (6 V): 3.5 kg/cm
• Speed (4.8 V): 0.18 s/60°
• Speed (6 V): 0.16 s/60°
• Bearing type: Bushing
• Motor type: Brushed
• Control type: PWM

Recommendations

Verify the torque and speed requirements of your model before installation. Use a compatible JR receiver and ensure the operating voltage stays within the specified range.
