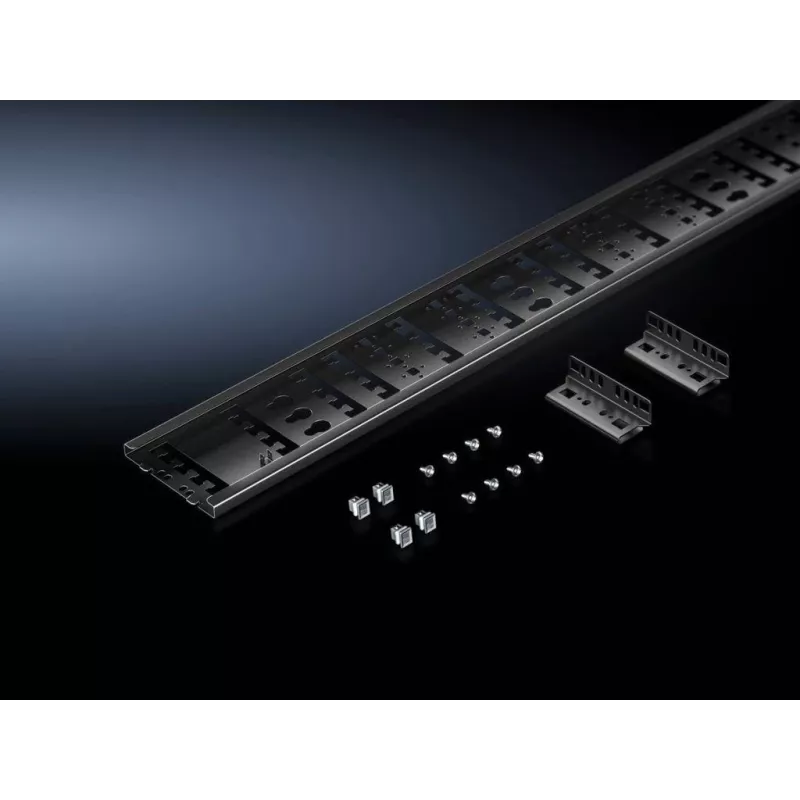

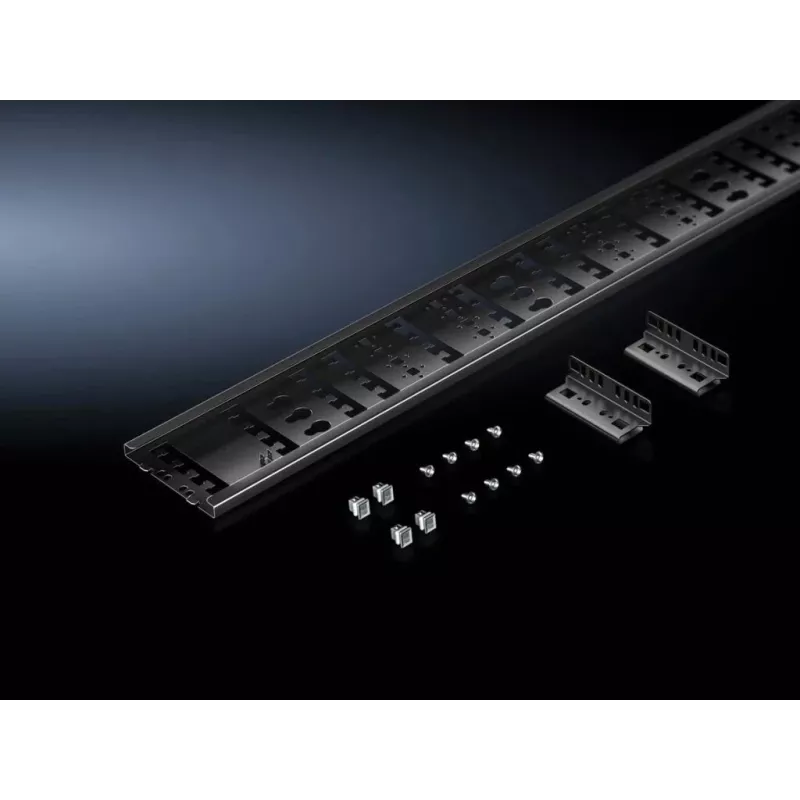

Rittal 5302.120 kaapelinhallintapaneeli 1U 19" RAL 9005

Unmanaged cabling in server racks leads to airflow blockages, difficult maintenance, and increased risk of accidental disconnections. The Rittal 5302.120 cable management panel provides a clean, professional solution for routing patch cables horizontally within 19-inch enclosures. Its integrated brush strip allows cables to pass through at any point while sealing the gap to maintain proper cooling and a tidy appearance.

Who is it for

This panel is ideal for IT administrators, data center technicians, and network installers who need to organize cabling in Rittal TS, TS IT, SE, PC, or IW enclosures. It suits both new installations and retrofits where cable chaos must be brought under control.

Main features

• 1U height with 19-inch mounting width for standard rack compatibility
• Integrated brush strip permits flexible cable entry across the full panel width
• Solid sheet steel construction with durable RAL 9005 jet black powder coating
• Provides strain relief and structured routing for horizontal cable runs
• Maintains airflow separation between front and rear of the rack
• Compatible with all Rittal 19-inch mounting levels

Specifications

• Product type: Cable management panel
• Rack units: 1U
• Mounting width: 19 inch
• Material: Sheet steel
• Colour: RAL 9005 (jet black)
• Panel dimensions: 482.6 mm width × 44.45 mm height × 120 mm depth
• Cable entry: Integrated brush strip
• Application: Horizontal cable routing
• Compatibility: Rittal TS, TS IT, SE, PC, IW enclosures
• Function: Structured cable routing, cable strain relief
• Packaging unit: 1 piece

Tips

For best results, install the panel at the top or bottom of each rack segment where cables transition between vertical managers and equipment. Pair with Rittal vertical cable managers for a complete cable management system. The brush strip can be easily replaced if damaged, extending the panel's service life.
