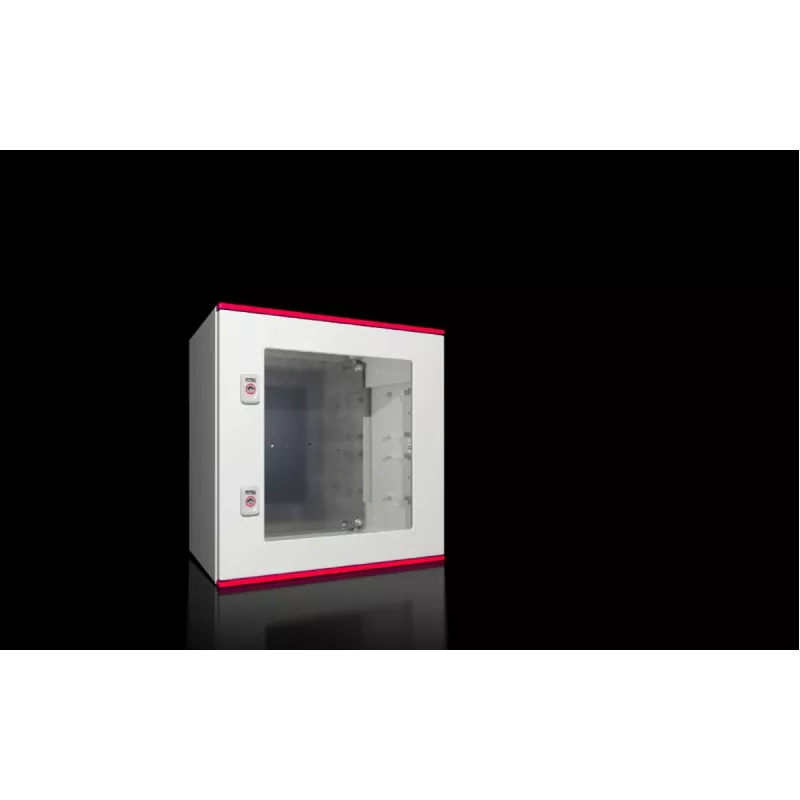

Rittal AX 1454.000 muovikotelo 500 x 500 x 300 mm vaaleanharmaa

The Rittal AX 1454.000 stands out with its robust fibreglass-reinforced polyester construction, offering superior corrosion resistance and durability for demanding industrial environments. Unlike standard sheet steel enclosures, this model provides excellent chemical and weather resistance, making it ideal for outdoor or washdown applications.

Highlights

• Material: Fibreglass-reinforced unsaturated polyester (enclosure and door)
• Mounting plate: Sheet steel
• Colour: RAL 7035 Light Grey
• Protection: IP66 and NEMA 4X
• Impact resistance: IK08
• Dimensions (W x H x D): 500 x 500 x 300 mm
• Operating temperature: -30 °C to +75 °C
• Flammability rating: UL 94 V-0
• Includes: Enclosure with door, mounting plate, double-bit lock insert 3 mm, gland plate

In daily use

The AX 1454.000 is designed for wall mounting and features a solid door with a double-bit lock (3 mm insert). Its textured surface finish provides a professional appearance while hiding minor scratches. The enclosure is suitable for a wide range of industrial applications, including machine building, process control, and outdoor installations.

Full specifications

• Enclosure type: Plastic Enclosure
• Series: AX
• Number of doors: 1
• Door type: Solid door
• Lock type: Double-bit lock (3 mm)
• Mounting type: Wall-mounted
• Certifications: UL, cUL, Germanischer Lloyd, VDE, EAC

Final note

A reliable, corrosion-resistant enclosure solution for harsh environments, backed by Rittal's AX series engineering.
