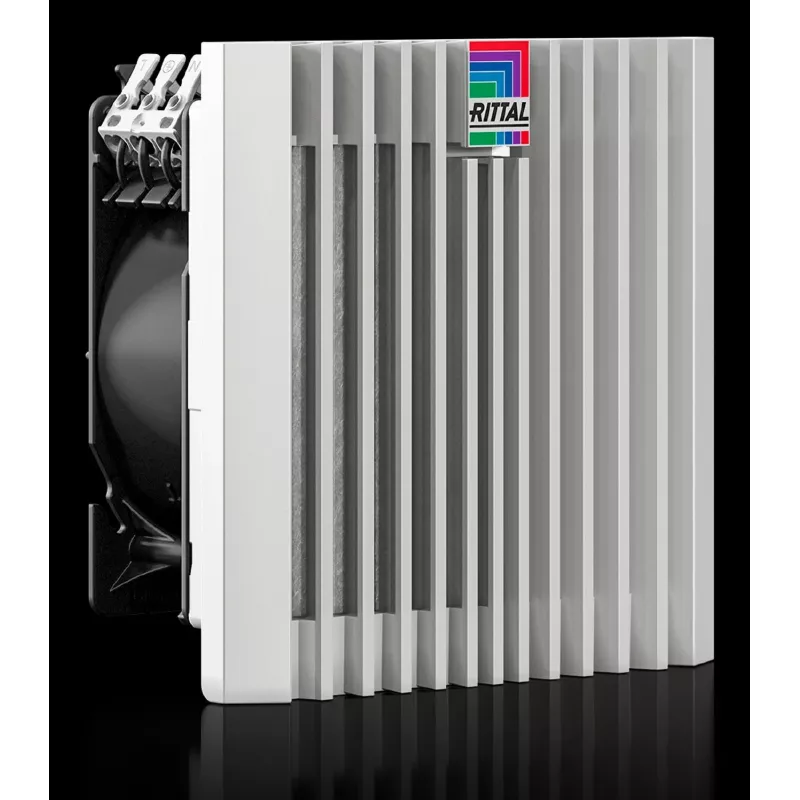

Rittal Blue e+ EMC-suodatintuuletin 53/64 m³/h 115 V RAL 7035 (3238810)

With an airflow of up to 64 m³/h at 60 Hz, the Rittal Blue e+ EMC Filter Fan efficiently cools enclosures while maintaining electromagnetic compatibility. Its light grey RAL 7035 housing integrates seamlessly into industrial environments.

Overview

This filter fan is part of the Rittal Blue e+ series, designed for reliable thermal management in electrical enclosures. It operates at 115 V AC, 50/60 Hz, and includes a filter mat for IP54 protection against dust and water. The fan's EMC shielding ensures it does not interfere with sensitive electronics, making it suitable for applications requiring electromagnetic compatibility.

What stands out

• High airflow: 53 m³/h at 50 Hz, 64 m³/h at 60 Hz (free-air)
• EMC compliance for interference-free operation
• IP54 protection with filter mat
• Low power consumption: 13 W at 50 Hz, 12 W at 60 Hz
• Compact design with 177 x 177 mm mounting cut-out
• Wide operating temperature range: -10 °C to +55 °C

Technical details

• Rated operating voltage: 115 V AC
• Rated frequency: 50/60 Hz
• Airflow with filter mat: 37 m³/h (50 Hz), 45 m³/h (60 Hz)
• Noise level: 46 dB(A) at 50 Hz, 49 dB(A) at 60 Hz
• Rated current: 0.12 A (50 Hz), 0.11 A (60 Hz)
• Material: ABS/PC plastic
• Connection: spring-type terminal
• Approvals: UL, cUL, TÜV, EAC, VDE

Our verdict

A robust and efficient cooling solution for enclosures requiring EMC shielding, offering reliable performance with low energy consumption.
