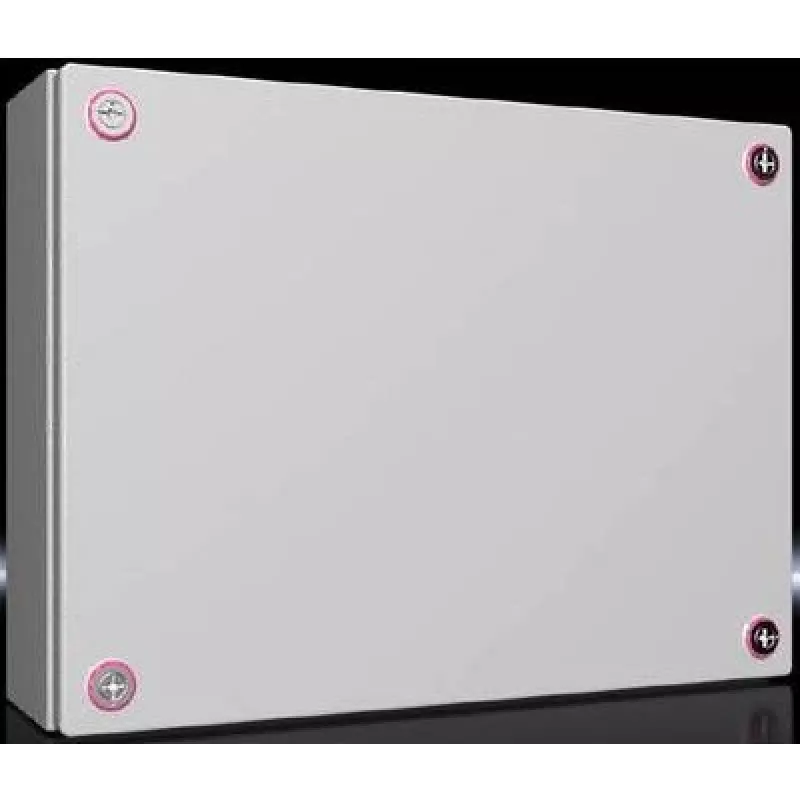

Rittal KX 1536.000 seinäkotelo, 400 x 300 x 120 mm, teräslevy, vaaleanharmaa, IP66

IP66-rated protection in a compact wall-mount enclosure: the Rittal KX 1536.000 keeps electrical components safe from dust, water jets, and harsh conditions. Its 1.25 mm sheet steel body and fully gasketed door offer NEMA 4-level sealing, while the included mounting plate simplifies installation.

Overview

Engineered for industrial control and distribution, this enclosure measures 400 mm high, 300 mm wide, and 120 mm deep. The light grey (RAL 7035) powder-coated finish resists corrosion and blends into any environment. A reversible hinged door with a 3 mm double-bit cam lock provides secure, convenient access.

What stands out

• IP66 and NEMA 4 protection against dust and powerful water jets
• Robust 1.25 mm sheet steel construction with textured powder coating
• Includes zinc-plated mounting plate (2.0 mm thick) for easy component layout
• Reversible door with cam lock for flexible installation
• Certified to UL 508A, IEC 62208, CSA, EAC, and VDE

Technical details

• Dimensions (H x W x D): 400 x 300 x 120 mm
• Material: Sheet steel, dip-primed and powder-coated
• Colour: Light grey (RAL 7035)
• Door: Hinged, right-hand (reversible), with 3 mm double-bit cam lock
• Gland plate: Included, with foam gasket
• Mounting plate: Included, zinc-plated, 2.0 mm thick
• Operating voltage: Max. 1000 V AC/DC
• Temperature range: -25 °C to +60 °C
• Certifications: UL 508A, IEC 62208, CSA, EAC, VDE

Our verdict

A compact, certified enclosure that delivers reliable protection for industrial controls. The Rittal KX 1536.000 is a solid choice for demanding environments where space is limited but performance cannot be compromised.
