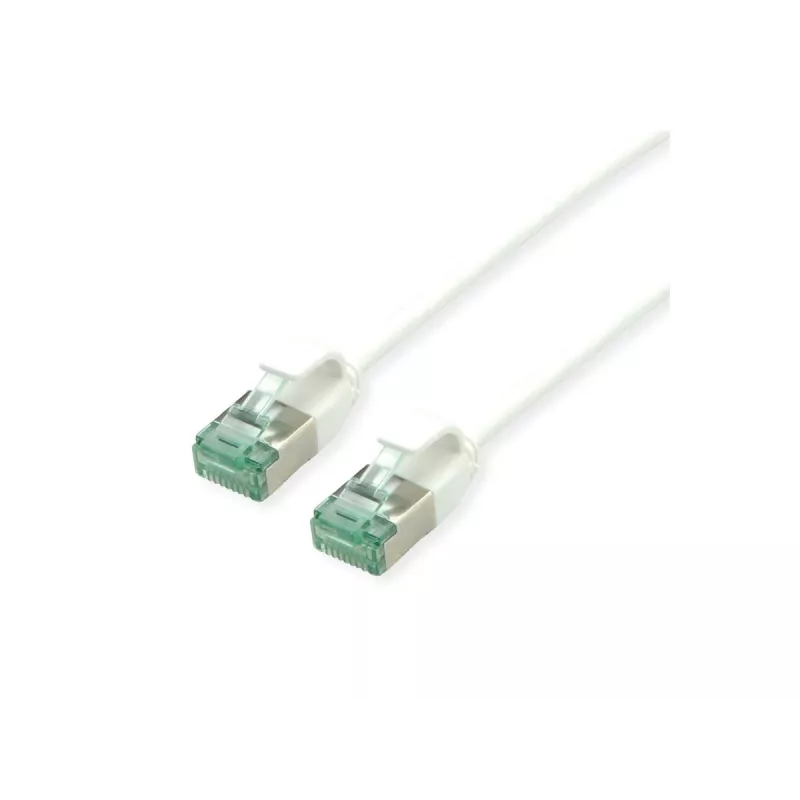

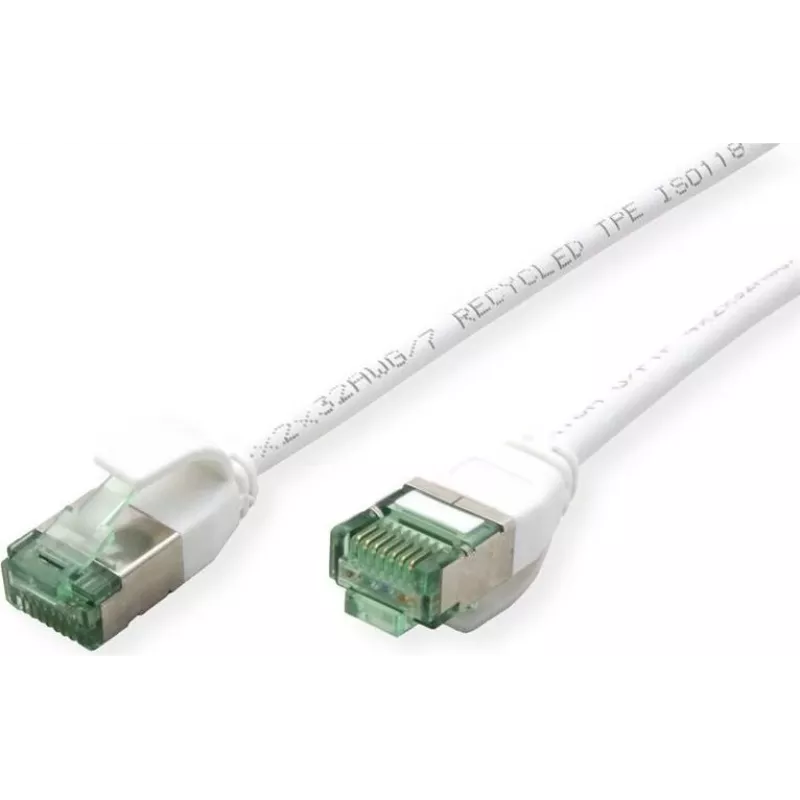

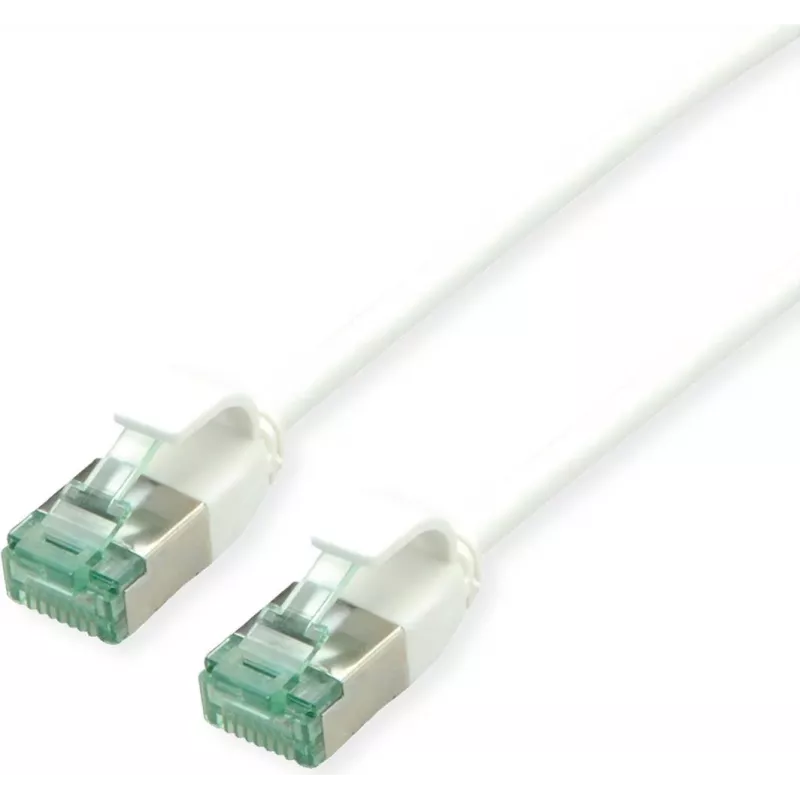

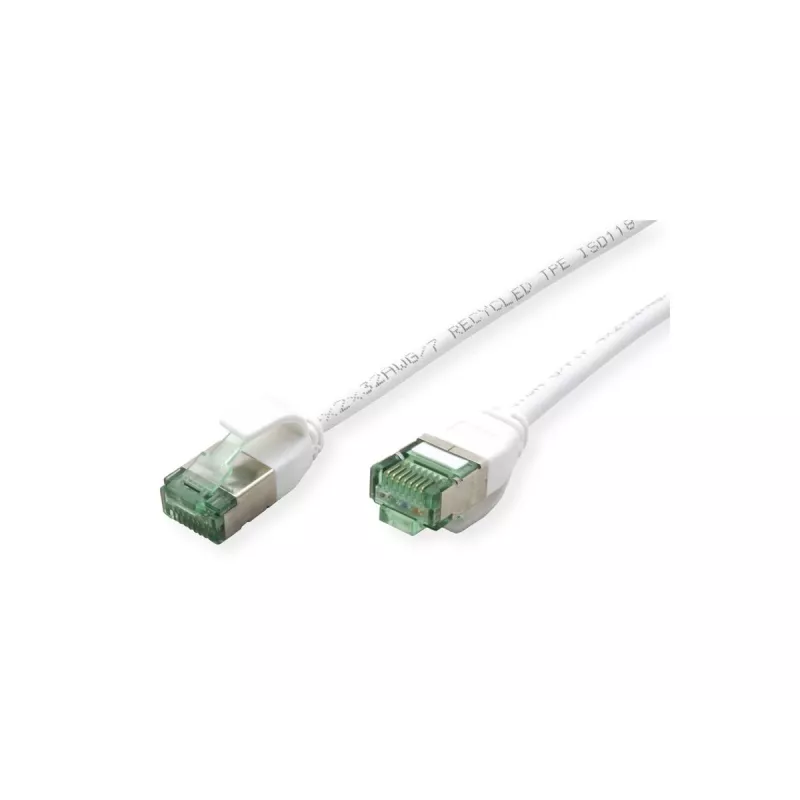

ROLINE RM U/FTP Cat.6A/Class EA Slim -verkkokaapeli, valkoinen, 0,15 m 21.45.3360

High-density network racks and cramped patch panels demand a cable that fits without sacrificing performance. This slim white patch cable solves that space problem while delivering full 10-Gigabit Ethernet over short links.

Who is it for

Network technicians and IT administrators who need reliable, high-speed connections in tight spaces—data centers, server rooms, and structured cabling installations where every millimeter counts.

Main features

• Cat.6A / Class EA performance with 500 MHz bandwidth for 10GBASE-T.
• U/FTP shielding: individually foiled twisted pairs reduce alien crosstalk.
• Slimline design (approx. 3.6 mm diameter) saves space and improves airflow.
• Snagless gold-plated RJ45 connectors (50 µm) for durable, corrosion-resistant contacts.
• LSZH (Low Smoke Zero Halogen) jacket for safety in enclosed spaces.
• Supports Power over Ethernet up to 4PPoE (PoE++).
• Stranded copper conductors, AWG 30, for flexibility in patch applications.
• Compliant with TIA/EIA 568-C.2, ISO/IEC 11801, and EN 50173-1.

Specifications

• Length: 0.15 m
• Colour: White
• Cable type: U/FTP (foiled twisted pairs)
• Category: Cat.6A / Class EA
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Stranded copper, AWG 30
• Jacket: LSZH
• Connector: RJ45 male to RJ45 male, gold-plated (50 µm)
• Boot: Snagless
• PoE: PoE, PoE+, 4PPoE (PoE++)
• Wiring: 1:1 (T568B)

Tips

Use this cable for short patching in high-density environments where standard cables would block airflow or make cable management difficult. Its slim profile allows more cables per cable manager and easier tracing.
