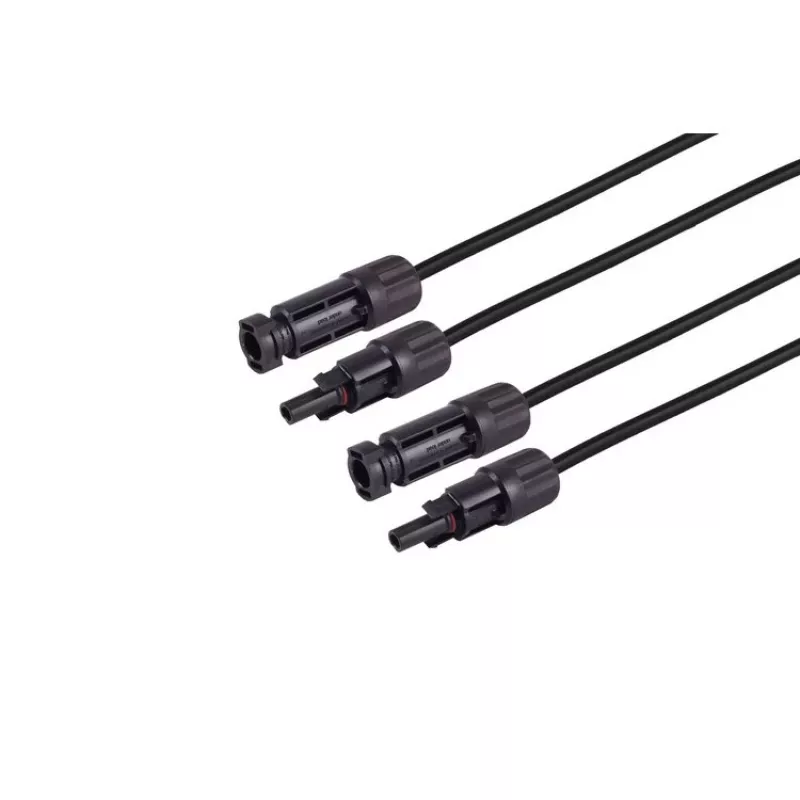

S CONN MAXIMUM CONNECTIVITY PV4-jatkokaapelisarja, 4 mm², 2 kpl:n pakkaus, 1 m, musta (02-32025)

Solar installations often require extending the reach of existing PV cables to connect panels over longer distances. This PV4 extension cable set provides a reliable solution for bridging gaps in photovoltaic systems, ensuring secure and efficient power transmission.

Who is it for

This set is ideal for solar installers and DIY enthusiasts who need to extend the cables of solar panels or connect components that are farther apart. It is suitable for both residential and commercial photovoltaic setups.

Main features

• Two 1-meter extension cables with PV4 connectors (MC4 compatible) for easy connection.
• 4 mm² tinned copper conductors for excellent conductivity and corrosion resistance.
• XLPE insulation rated for 1000 V DC and 30 A, with UV, ozone, and flame resistance.
• Connectors with IP67 weather resistance for outdoor durability.
• Operating temperature range from -40°C to +90°C for extreme environments.

Specifications

• Product Type: PV Extension Cable Set
• Cable Type: Solar Cable
• Connector Type: PV4 (MC4 Compatible)
• Cable Cross-Section: 4 mm²
• Cable Length: 1 m per cable
• Quantity: 2 cables
• Cable Colour: Black
• Conductor Material: Tinned Copper
• Insulation Material: XLPE
• Rated Voltage: 1000 V DC
• Rated Current: 30 A
• Operating Temperature: -40°C to +90°C
• UV Resistance: Yes
• Weather Resistance: IP67 (connectors)
• Flame Retardant: Yes
• Ozone Resistance: Yes
• Certification: TÜV Rheinland, CE
• Application: Photovoltaic Systems, Solar Installations
• Connector Configuration: Male to Female per cable

Tips

Ensure connectors are fully seated and locked to prevent moisture ingress. For longer runs, multiple sets can be daisy-chained, but verify total voltage drop remains within system limits.
