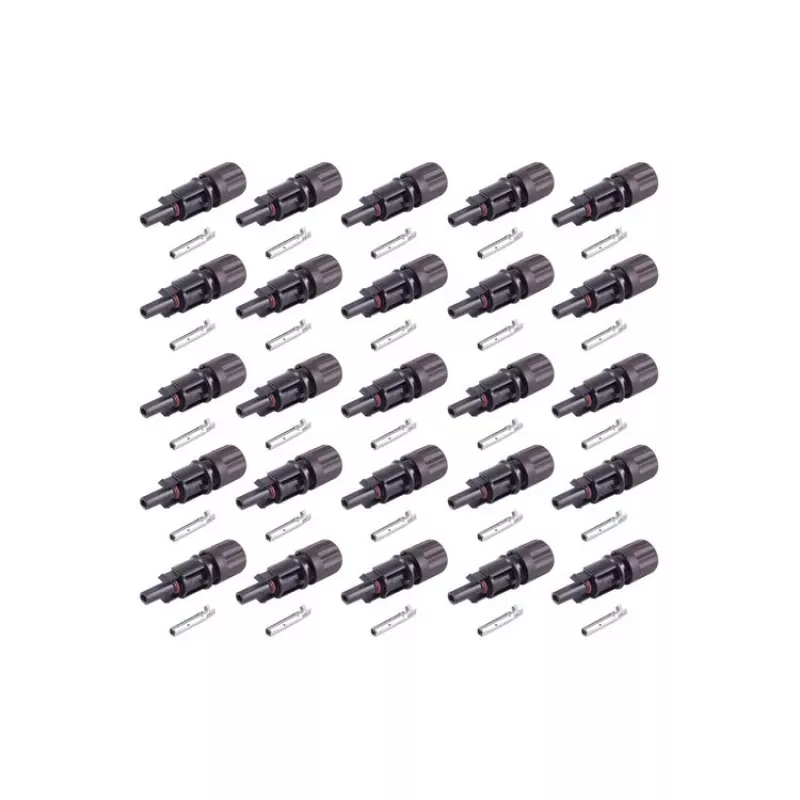

S CONN MAXIMUM CONNECTIVITY PV4 pistorasialiitin 2,5-6mm², IP68, 1500V, 50 kpl:n pakkaus (02-20016)

The S CONN MAXIMUM CONNECTIVITY PV4 female connector stands out with its robust IP68 sealing and high 1500V DC rating, making it a reliable choice for demanding photovoltaic installations. Designed for cables from 2.5mm² to 6mm², it ensures a secure and efficient connection in solar systems.

Highlights

• Compatible with MC4 connectors for seamless integration
• Supports up to 45A current with 6mm² cable
• Snap-in locking system for quick and secure mating
• Wide operating temperature range from -40°C to +90°C
• Tinned copper contacts for excellent conductivity

In daily use

This female connector is ideal for solar panel wiring, offering reliable performance in harsh outdoor environments. The crimp connection method ensures a durable and low-resistance joint, while the PPO insulation provides excellent flame retardancy (UL94-V0).

Full specifications

• Connector Type: PV4 (MC4 Compatible)
• Gender: Female
• Compatible Cable Cross-Section: 2.5 mm² - 6 mm²
• Maximum System Voltage: 1500 V DC
• Rated Current (4mm² Cable): 30 A
• Rated Current (6mm² Cable): 45 A
• Ingress Protection (IP) Rating: IP68
• Operating Temperature Range: -40°C to +90°C
• Contact Material: Tinned Copper
• Insulation Material: PPO (Polyphenylene Oxide)
• Flammability Rating: UL94-V0
• Contact Resistance: ≤ 0.5 mΩ
• Mating Cycles: ≥ 20
• Locking System: Snap-in
• Connection Method: Crimp
• Certification: TÜV, CE
• Quantity per Pack: 50 pieces
• Application: Photovoltaic (Solar) Systems

Final note

With its high current capacity and durable construction, this connector is a dependable component for long-term solar energy systems.
