S-VGA-kaapeli InLine 17805 15 HD uros/uros harmaa 0,5 m

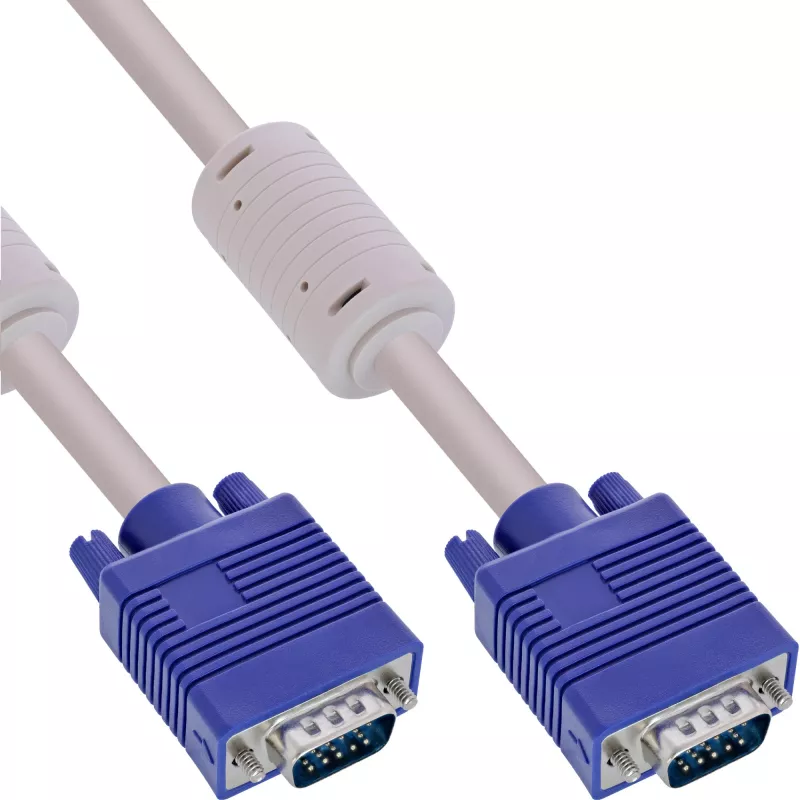

The InLine S-VGA Cable 17805 is a 0.5 m beige VGA (D-Sub) cable designed for reliable video signal transmission between VGA-compatible devices. It uses three single-shielded coaxial conductors for RGB signals and seven data lines, and is fitted with 15-pin SVGA male-to-male connectors wired 1:1 (PIN 9 not connected). The connector housings are blue in accordance with the PC99 standard for easy port identification.

Advantages

Double shielding and individual coaxial conductors for RGB provide reduced interference and stable picture quality. The 1:1 wiring preserves standard VGA pinout compatibility, and the short 0.5 m length is convenient for close-range setups where cable clutter should be minimised. Blue connector housings follow the PC99 colour convention for straightforward connection.

Suitable for

• Connecting desktop monitors to VGA outputs
• Short-distance connections between projectors and laptops with VGA ports
• Workstations and POS systems requiring a compact VGA cable

Key specifications

• Length: 0.5 m
• Connectors: 15-pin VGA (D-Sub) male — male
• Conductors: 3 single-shielded coaxial lines (RGB) + 7 data lines
• Wiring: 1:1 (PIN 9 not connected)
• Colour: Beige housing with blue connector shells (PC99)
• Brand / MPN: InLine / 17805

How to use

Connect one 15-pin VGA male connector to the VGA output of the source device and the other connector to the VGA input of the display device. Tighten the connector screws by hand to secure the connection. Use the cable for short-distance video links up to 0.5 m; avoid excessive bending near the connectors to maintain signal integrity.

Recommendations

For best results, route the cable away from strong electromagnetic sources (large power supplies, motors) and avoid running it in parallel with power cables. If longer runs or digital signals are required, consider using appropriate extenders or digital interfaces such as DVI/HDMI.
