Sähkökotelo Rittal 9515.000 — polyamidi/polykarbonaatti, 180×111×110 mm, IP66

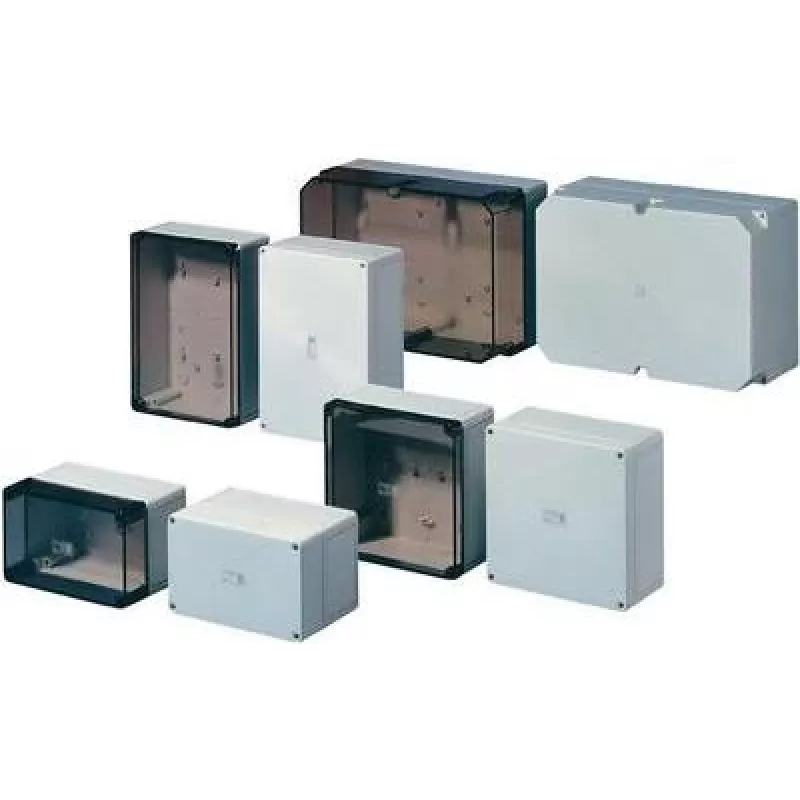

Rittal 9515.000 is a compact electrical enclosure made from fibre-glass reinforced polycarbonate body and available with either a grey or a transparent polycarbonate cover. With nominal external dimensions of 180 × 111 × 110 mm and an IP66 rating, the enclosure is engineered to protect small electrical and electronic components, junctions and terminals from dust, strong jets of water and harsh environmental conditions in both indoor and outdoor installations.

Advantages

The enclosure combines a robust polycarbonate construction with fibre-glass reinforcement for increased mechanical strength and impact resistance while keeping the unit lightweight. The IP66 protection level ensures dust-tight sealing and protection against powerful water jets, suitable for exposed locations. The option of a transparent cover allows visual inspection of internal components without opening the enclosure, and the grey cover offers a discreet, uniform appearance. Compact dimensions make the enclosure suitable for installations with limited space.

Suitable for

• Small junction boxes and terminal connections
• Housing of compact electronic modules and sensors
• Control and signal distribution in machinery and equipment
• Outdoor and indoor installations requiring IP66 protection

Key specifications

• Material: fibre-glass reinforced polycarbonate body; polycarbonate cover (grey or transparent)
• External dimensions (W × D × H): 180 × 111 × 110 mm
• Protection class: IP66 (dust-tight, protection against powerful water jets)
• Mounting: enclosure designed for wall or panel mounting (mounting possibilities depend on selected accessories)
• Access: removable cover for internal access and maintenance

How to use

Mount the enclosure on a clean, stable surface using appropriate mounting accessories and fasteners compatible with the enclosure material. Install internal components such as terminals, DIN-rail adapters or custom mounting plates as required, ensuring all wiring and connections comply with applicable electrical standards. Close and fasten the cover to maintain IP66 protection; if a transparent cover is used, visual checks can be performed without removal. Ensure cable entries and any grommets or glands are correctly sealed to preserve ingress protection.

Recommendations

For best results, select cable glands and mounting hardware rated for IP66 and compatible with polycarbonate to avoid chemical interaction. When installing outdoors, avoid prolonged exposure to aggressive chemicals or direct UV without additional protective measures; periodic inspection of seals and fastening points will help maintain protection over time.
