Sähköverkko-pistoke Bachmann 910.175 musta 3P

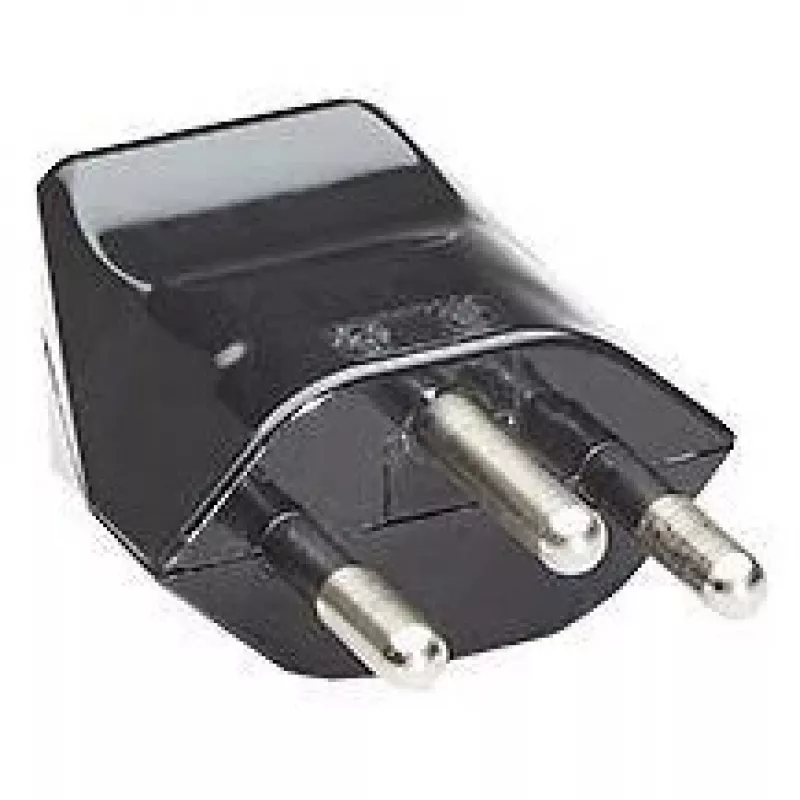

The Bachmann 910.175 is a black 3-pole electrical power plug made from durable thermoplastic. It is designed for reliable connections in residential and light commercial electrical installations, supporting an AC input voltage of 250 V and a maximum current of 10 A. The plug accepts cables up to 3G 1.00 mm² and features integrated strain relief for secure cable fastening.

Advantages

The thermoplast construction offers good mechanical strength and electrical insulation. Compatibility with cables up to 3G 1.00 mm² makes the plug suitable for common wiring situations. Built-in strain relief reduces stress on the conductors and terminals, improving long-term connection stability.

Suitable for

• General household appliances and equipment
• Light commercial electrical devices
• Temporary power connections and repair work

Key specifications

• Brand: Bachmann
• Model/MPN: 910.175
• EAN: 4016514014378
• Poles: 3P (three poles)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Cable compatibility: up to 3G 1.00 mm²
• Material: thermoplastic
• Feature: strain relief

How to use

Prepare the cable by stripping the outer sheath and individual conductors to the appropriate lengths. Insert the conductors into the corresponding terminals of the Bachmann 910.175 plug according to polarity and secure them with the terminal screws. Ensure the cable is positioned in the integrated strain relief and tighten the clamp to prevent conductor movement. After assembly, verify correct electrical continuity and insulation before applying power.

Recommendations

Use the plug with cables no larger than 3G 1.00 mm² and do not exceed the rated 250 V/10 A. Follow local electrical codes and, if unsure, consult a qualified electrician for installation and testing.
