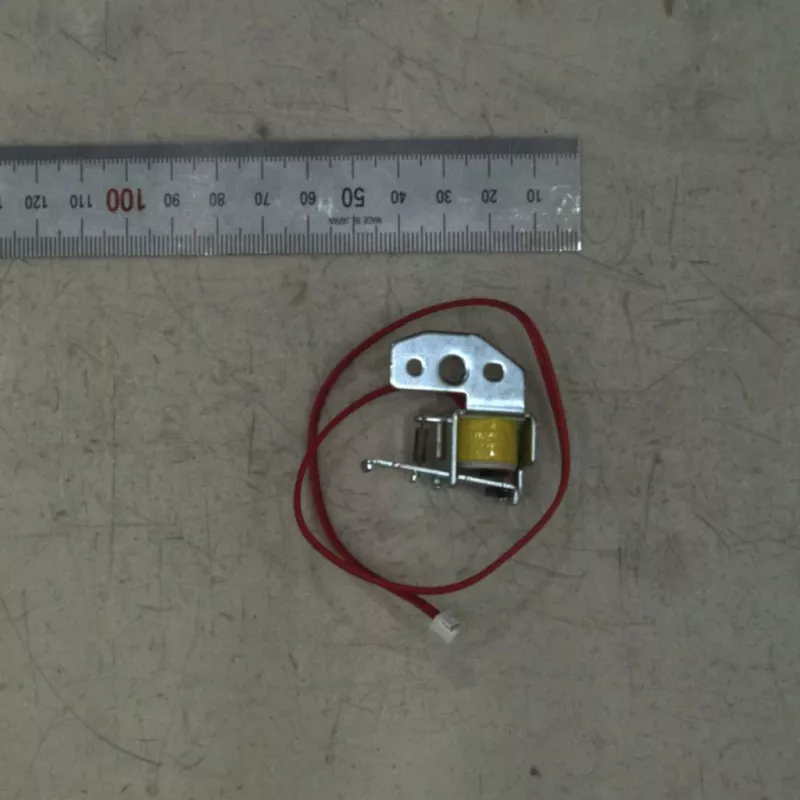

Samsung solenoidikela CF-560 24 V DC 120 ohmia manuaalinen ohitus JC33-00025A

The Samsung Solenoid Coil CF-560 (JC33-00025A) is a high-quality, encapsulated coil designed for continuous duty in refrigeration, air conditioning, and industrial fluid control solenoid valves. With a robust 24V DC operating voltage and 120 Ohm resistance, it delivers reliable performance in demanding environments.

Advantages

This solenoid coil features a manual override function for easy operation and maintenance. Its IP65 protection rating ensures resistance to dust and water ingress, while Class F insulation provides excellent thermal stability. The thermoplastic encapsulation offers durability and long service life.

Suitable for

• Refrigeration solenoid valves
• Air conditioning systems
• Industrial fluid control applications
• Replacement for CF-560 series coils

Key specifications

• Product Type: Solenoid Coil
• Coil Series: CF-560
• Operating Voltage: 24V DC
• Coil Resistance: 120 Ohm
• Power Consumption: 4.8 W
• Manual Override: Yes
• Electrical Connection: Spade Terminals (for plug connector)
• Enclosure Protection: IP65
• Insulation Class: Class F
• Duty Cycle: 100% ED (Continuous)
• Ambient Temperature: -40 to +50 °C
• Mounting Type: Clip-on / Slide-on
• Coil Material: Copper
• Housing Material: Thermoplastic Encapsulated
• EAN: 5711045442223

Recommendations

Ensure compatibility with your valve model before purchase. This coil is designed for CF-560 series valves and similar applications. For technical support, consult the manufacturer's documentation.
