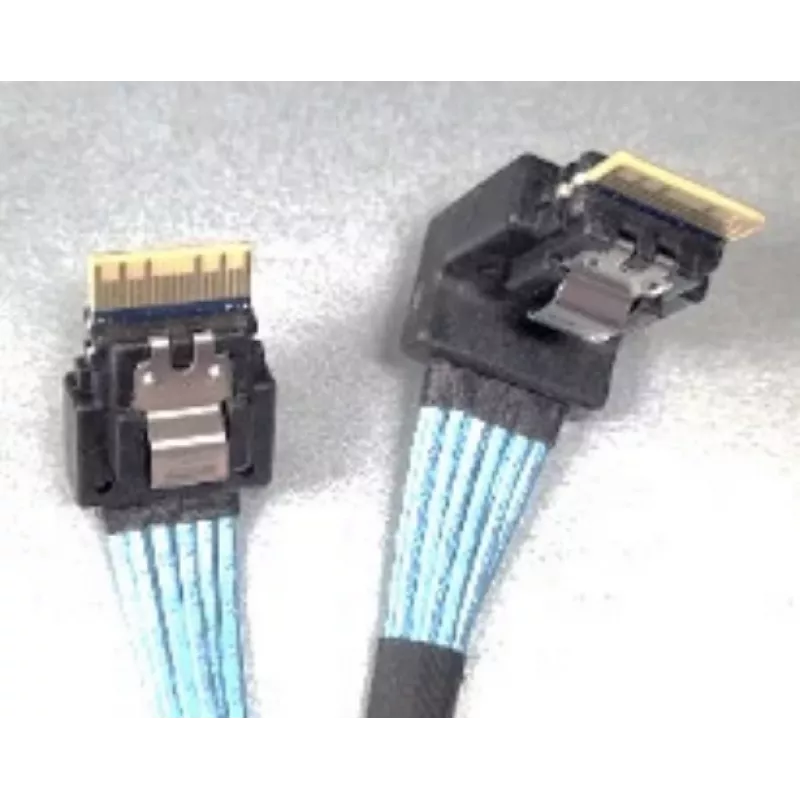

SAS Cable Intel CYPCBLSL216KIT SlimSAS to SlimSAS is a set of SlimSAS splitter cables designed for Intel server systems (compatible with Intel Server M50CYP and Intel Server Board M50CYP). The kit enables routing of PCIe NVMe storage to front drive bays in a 2U M50CYP2UR x16 front drive bay system by connecting CPU SlimSAS outputs to HSBP SlimSAS SSD inputs.

Advantages

The kit includes four dedicated SlimSAS splitter cables with different lengths to match internal server routing needs and ensure proper connection between server board CPU SlimSAS ports and HSBP SlimSAS SSD inputs. Using SlimSAS-to-SlimSAS connections preserves signal integrity for PCIe NVMe storage and is intended for direct compatibility with the referenced Intel server models.

Suitable for

• Routing PCIe NVMe storage to front drive bays in 2U Intel M50CYP systems
• Connecting Intel Server Board M50CYP SlimSAS CPU ports to HSBP SlimSAS SSD inputs
• Server maintenance or upgrades requiring multiple internal SlimSAS connections

Key specifications

• Model: Intel CYPCBLSL216KIT
• Connector type: SlimSAS to SlimSAS (splitter cables)
• Included cables and lengths (approx.): 275/255 mm splitter, 305/325 mm splitter, 360/340 mm splitter, 240/260 mm splitter
• Compatibility: Intel Server M50CYP and Intel Server Board M50CYP; designed for 2U M50CYP2UR x16 front drive bay systems
• MPN: CYPCBLSL216KIT
• EAN: 5032037213103

How to use

Identify the corresponding CPU SlimSAS ports on the server board (CPU0 and CPU1) and the HSBP SlimSAS SSD inputs (left and right) listed for SSD positions. Connect each splitter cable between the specified CPU x4 SlimSAS port and the matching HSBP x8 SlimSAS SSD input, taking care to match the cable lengths and routing to avoid tight bends. Secure cables as needed inside the chassis and verify connections before powering the system.

Recommendations

Install and route cables while the server is powered off and grounded to prevent ESD. Use the cable length variations included to minimize interference and maintain proper airflow. Verify compatibility with your specific Intel M50CYP system revision and follow server manufacturer guidelines for NVMe drive configuration.
