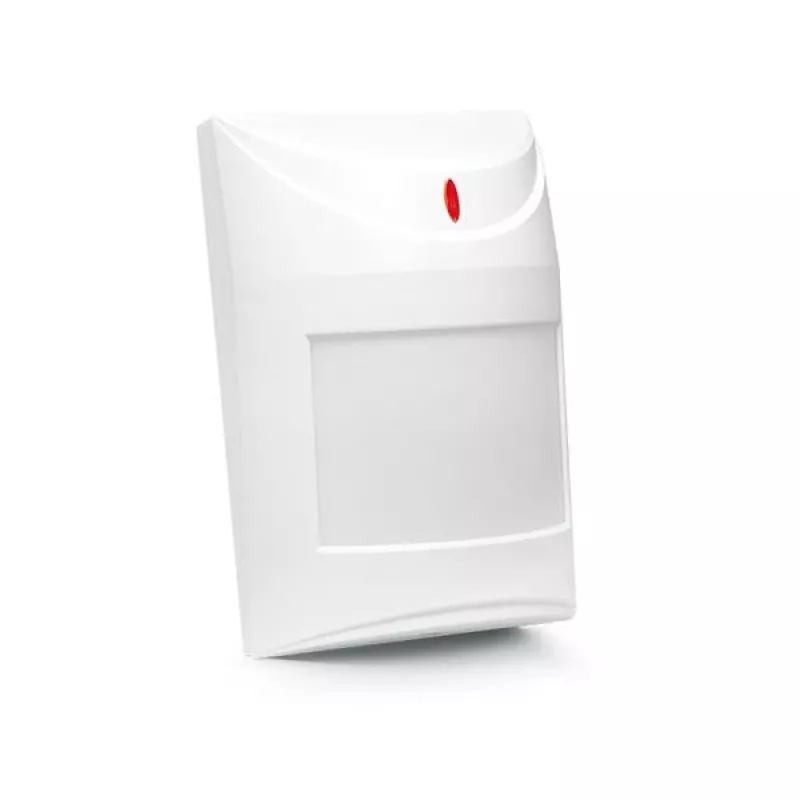

SATEL AQUA Plus digitaalinen passiivinen infrapunatunnistin

The SATEL AQUA Plus is a digital passive infrared (PIR) detector designed for indoor security applications. It features a dual-element PIR sensor and digital signal processing for reliable motion detection with a range of 15 m x 15 m and a 90-degree detection angle. The detector is EN 50131 Grade 2 compliant, making it suitable for professional alarm systems.

Advantages

Digital signal processing ensures high immunity to false alarms. The detector includes digital temperature compensation and creep zone protection for consistent performance across varying conditions. Two-level sensitivity adjustment allows customization to the environment.

Suitable for

• Indoor security systems in residential and commercial premises
• Integration with wired alarm control panels
• Areas requiring pet-friendly detection (no pet immunity)

Key specifications

• Detection Technology: Digital Passive Infrared (PIR)
• Sensor Type: Dual Element PIR
• Detection Range: 15 m x 15 m
• Detection Angle: 90 degrees
• Alarm Output: NC (Normally Closed) Relay
• Tamper Protection: Enclosure Opening
• Power Supply: 9-15 V DC
• Max Current Consumption: 12 mA
• Operating Temperature: -10°C to +55°C
• Recommended Mounting Height: 2.1 - 2.4 m
• Compliance: EN 50131 Grade 2

Recommendations

For optimal performance, mount at the recommended height and avoid direct sunlight or heat sources. Use with a compatible alarm panel supporting NC inputs and EOL resistors.
