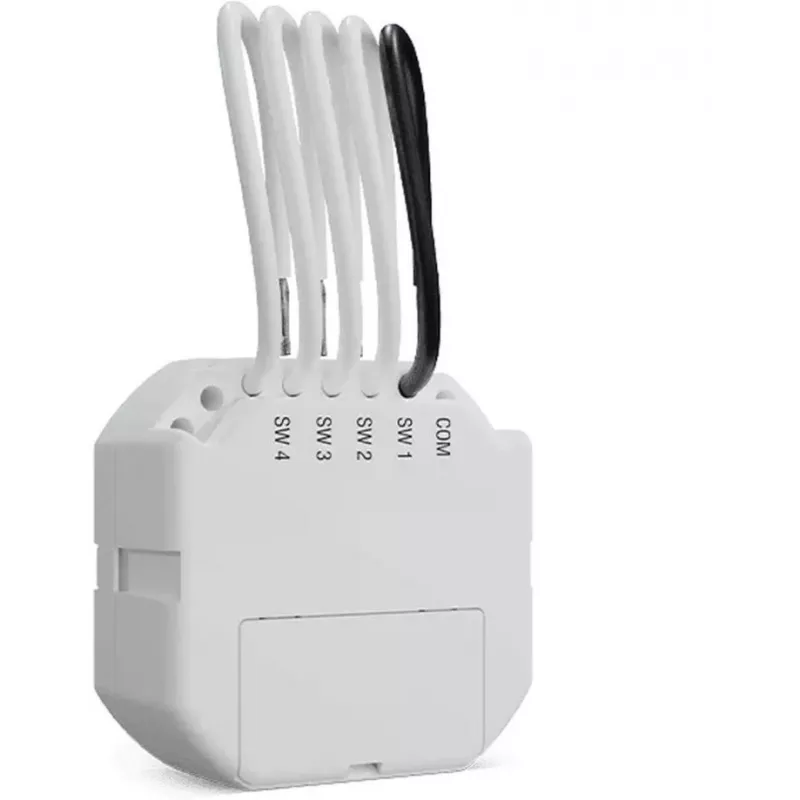

SATEL BE WAVE langaton kytkimen ohjausmoduuli (uppoasennettava laitetyyppi ATX-200) älykytkin C

The SATEL BE WAVE Wireless Switch Control Module (flush-mounted device type ATX-200) Smart Switch C is a reliable and compact device designed for remote control of lighting and electrical appliances. Operating at 433 MHz RF, it offers a wireless range of up to 30 m indoors and 100 m outdoors, making it ideal for home and office automation. The module is flush-mounted in a standard electrical box (Ø60 mm) and supports resistive loads up to 2300 W (10 A).

Advantages

Easy installation in standard flush-mounted boxes, robust 433 MHz RF communication, compatibility with BE WAVE RF remote controls, and reliable switching of resistive loads up to 10 A.

Suitable for

• Wireless control of lighting circuits
• Remote switching of electrical appliances
• Home and office automation systems
• Integration with BE WAVE RF remote controls

Key specifications

• Device Type: Wireless Switch Control Module
• Installation: Flush-mounted (in-wall)
• Wireless Technology: RF 433 MHz
• Number of Channels: 1
• Input Voltage: 230V AC, 50 Hz
• Max Load Current: 10 A
• Max Load Power: 2300 W (resistive)
• Indoor Range: Up to 30 m
• Outdoor Range: Up to 100 m (line of sight)
• Protection Rating: IP20
• Operating Temperature: -10°C to +50°C
• Housing Material: Plastic
• Mounting: Standard electrical box (Ø60 mm)

Recommendations

For optimal performance, use with SATEL BE WAVE RF remote controls. Ensure the module is installed in a dry indoor location within the specified temperature range. Do not exceed the maximum load rating.
