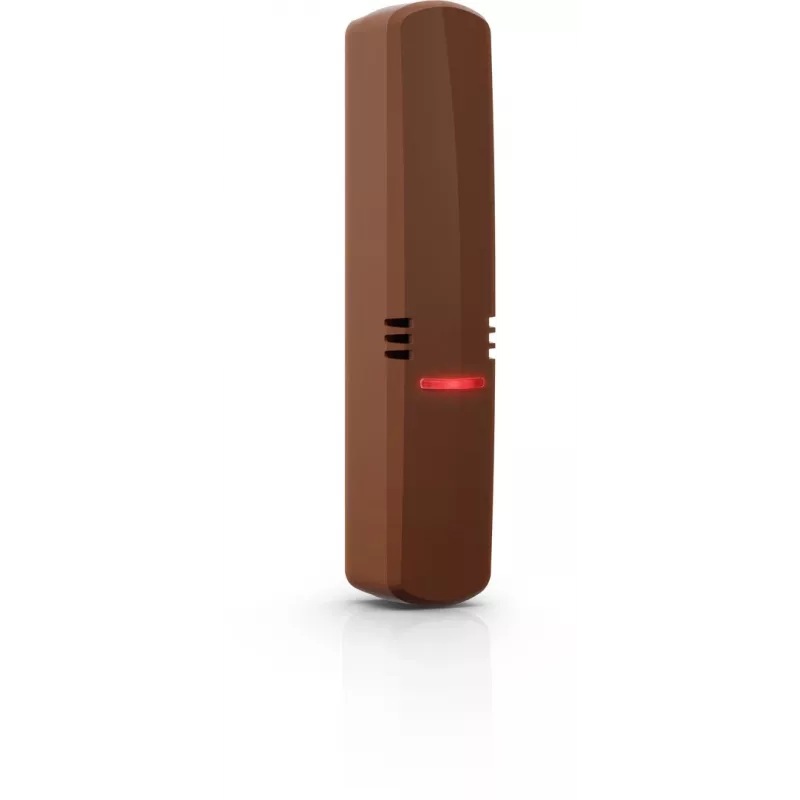

SATEL BE WAVE langaton lämpötila-, paine- ja kosteusanturi - ruskea monianturi BR ATP

The SATEL BE WAVE Multi Sensor BR ATP is a wireless, battery-powered sensor designed for indoor use within the ABAX 2 system. It accurately measures temperature, atmospheric pressure, and relative humidity, making it ideal for environmental monitoring in residential, commercial, and industrial applications. The sensor communicates with SATEL ABAX 2 controllers (ACU-220, ACU-280) over a secure 868 MHz wireless link, offering a range of up to 2000 m in open areas.

Advantages

This multi-sensor combines three critical measurements in a single compact device, reducing installation complexity and cost. Its long battery life (up to 2 years) and reliable wireless range ensure minimal maintenance. The tamper protection features (enclosure opening and detachment detection) enhance security, making it suitable for alarm and monitoring systems.

Suitable for

• Environmental monitoring in smart homes and buildings
• Temperature and humidity control in server rooms, warehouses, and greenhouses
• Integration with SATEL ABAX 2 security and automation systems
• Remote monitoring of pressure-sensitive environments

Key specifications

• Wireless System: ABAX 2
• Operating Frequency: 868 MHz
• Sensor Type: Temperature, Pressure, Humidity
• Temperature Measurement Range: -10°C to +55°C
• Temperature Measurement Accuracy: ±0.5°C (0°C to +40°C)
• Humidity Measurement Range: 0% to 100% RH
• Humidity Measurement Accuracy: ±2% RH (20% to 80% RH)
• Pressure Measurement Range: 300 hPa to 1100 hPa
• Pressure Measurement Accuracy: ±1 hPa (900 hPa to 1100 hPa)
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 2 years
• Tamper Protection: Enclosure opening, Detachment from mounting surface
• Environmental Class: II (EN 50130-5)
• Color: Brown
• Compatibility: SATEL ABAX 2 Controllers (ACU-220, ACU-280)
• Wireless Range (Open Area): Up to 2000 m
• Installation Environment: Indoor
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, install the sensor in a location with stable temperature and humidity, away from direct sunlight, drafts, and heat sources. Use only SATEL ABAX 2 controllers for communication. Replace the battery when low to ensure uninterrupted operation.
