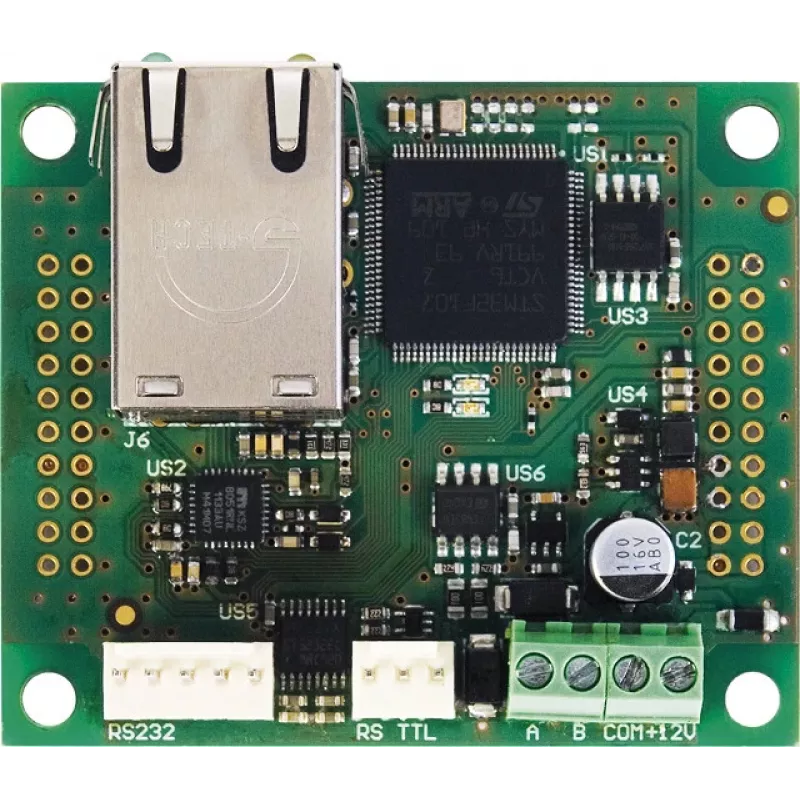

SATEL CSP-ETH Ethernet-tiedonsiirtomoduuli INTEGRA/VERSA-keskuksille

The SATEL CSP-ETH is a high-performance Ethernet communication module designed for seamless integration with SATEL INTEGRA, INTEGRA Plus, VERSA, and VERSA Plus control panels. It enables remote control, programming, and event monitoring via TCP/IP networks, providing encrypted communication for enhanced security. Ideal for residential and commercial security systems, this module supports DHCP, NAT, and email notifications, ensuring reliable and flexible connectivity.

Advantages

• Enables remote control via GUARDX mobile app and remote programming via DLOADX software
• Encrypted communication ensures data security
• Supports DHCP and NAT for easy network integration
• Low power consumption (max 100 mA) powered directly from the control panel
• Compact PCB design for internal installation

Suitable for

• SATEL INTEGRA control panels
• SATEL INTEGRA Plus control panels
• SATEL VERSA control panels
• SATEL VERSA Plus control panels
• Residential and commercial security systems requiring remote access

Key specifications

• Product Type: Ethernet Communication Module
• Communication Interface: Ethernet (RJ-45), RS-232
• Network Protocols: TCP/IP
• Remote Control: Via GUARDX Mobile Application
• Remote Programming: Via DLOADX Software
• Event Monitoring: Yes
• Notification Type: Email Notifications
• DHCP Support: Yes
• NAT Support: Yes
• Security Features: Encrypted Communication
• Power Supply: 12 V DC (from control panel)
• Current Consumption: Max. 100 mA
• Operating Temperature: -10°C to +55°C
• Installation Type: Internal Module (PCB)
• Firmware Update: Via DLOADX Software

Recommendations

For optimal performance, ensure your control panel firmware is up-to-date and use a stable Ethernet connection. The CSP-ETH is a reliable solution for expanding your security system with remote capabilities.
