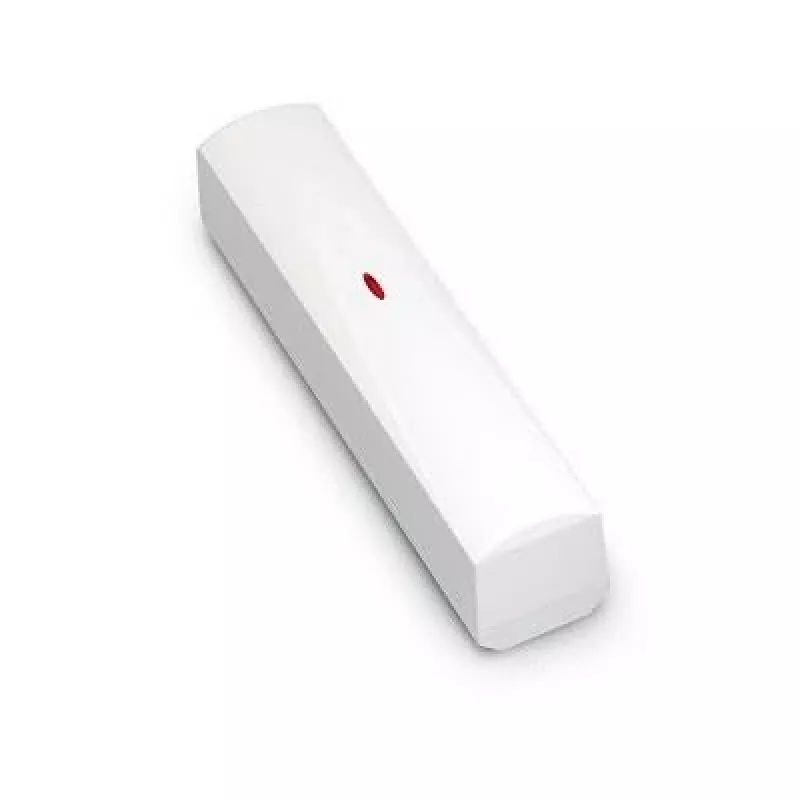

Satel VERSA-MCU GSM/GPRS-tiedonsiirtomoduuli VERSA-hälytyskeskuksille

The Satel VERSA-MCU is a GSM/GPRS communication module designed to enhance Satel VERSA series alarm control panels with cellular connectivity. It enables remote monitoring, control, and event reporting via SMS, CLIP, and GPRS (SIA-IP protocol). Ideal for installations where a wired telephone line is unavailable or as a backup communication channel.

Advantages

Reliable cellular communication for alarm systems; supports quad-band GSM for global compatibility; remote programming and firmware updates via GPRS; encrypted GPRS communication for security; easy plug-in installation directly onto the control panel mainboard.

Suitable for

• Satel VERSA 5, VERSA 10, and VERSA 15 alarm control panels
• Residential and commercial security systems requiring cellular backup or primary communication
• Remote management of alarm systems via SMS or DLOADX software

Key specifications

• Product Type: GSM/GPRS Communication Module
• Compatibility: Satel VERSA series (VERSA 5, VERSA 10, VERSA 15)
• Communication Technology: GSM, GPRS
• GSM Frequency Bands: Quad-band 850/900/1800/1900 MHz
• SIM Card Support: Single SIM card slot
• Monitoring Features: SMS/CLIP event reporting, GPRS monitoring (SIA-IP)
• Remote Control: Via SMS messages
• Remote Programming: Yes, via GPRS (DLOADX software)
• Firmware Update: Remote firmware updates via GPRS
• Antenna Connector: SMA (for external GSM antenna)
• Event Reporting Formats: SMS, CLIP, SIA-IP (GPRS)
• Power Supply: From control panel
• Installation: Plugs directly into the control panel mainboard
• Data Transmission Speed: GPRS Class 10
• Security: Encrypted GPRS communication

Recommendations

For optimal performance, use a high-quality external GSM antenna (not included). Ensure the control panel firmware is up-to-date to support all features of the VERSA-MCU module.
