SATEL IPX-SMA adapterikaapeli 15 cm viestintämoduulille

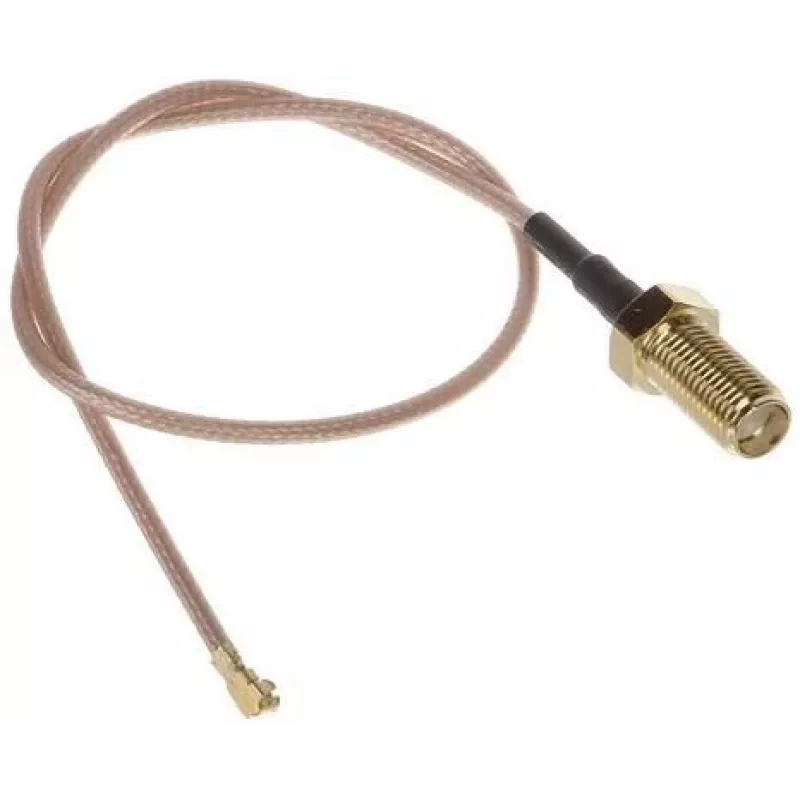

The SATEL IPX-SMA adapter cable is a high-quality coaxial cable designed to connect communication modules with an IPX (U.FL/MHF) connector to an SMA female bulkhead connector. This 15 cm (150 mm) cable is ideal for extending antenna connections in Wi-Fi, Bluetooth, GPS, GSM, LoRa, and IoT applications. Manufactured with RG178 coaxial cable and 50 Ohm impedance, it ensures reliable signal transmission with low loss.

Advantages

This adapter cable offers a compact and flexible solution for integrating external antennas with SMA connectors to modules that feature an IPX connector. The gold-plated IPX connector ensures excellent conductivity and corrosion resistance, while the nickel-plated SMA connector provides a secure panel-mount connection. The cable's FEP jacket and PTFE dielectric deliver stable performance across a wide temperature range (-40°C to +85°C).

Suitable for

• SATEL communication modules and other devices with IPX (U.FL/MHF) connectors
• Wi-Fi, Bluetooth, GPS, GSM, LoRa, and IoT applications requiring external antenna connection
• Panel-mount installations where a secure SMA female bulkhead connector is needed

Key specifications

• Connector 1: IPX (U.FL/MHF) Male
• Connector 2: SMA Female (Bulkhead/Panel Mount)
• Cable Length: 15 cm (150 mm)
• Cable Type: RG178 Coaxial
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• VSWR: < 1.5:1
• Insertion Loss: < 0.5 dB @ 2.4 GHz
• Connector 1 Material: Brass (Gold Plated)
• Connector 2 Material: Brass (Nickel Plated)
• Dielectric Material: PTFE
• Operating Temperature: -40°C to +85°C
• Cable Jacket Material: FEP
• Center Conductor Material: Silver-plated Copper

Recommendations

Ensure that the IPX connector is properly mated to the module's U.FL/MHF port. The SMA bulkhead connector is designed for panel mounting with included nut and washer. For optimal performance, use with antennas and modules that support 50 Ohm impedance.
