SATEL SLIM-R-PIR-LUNA BUS katto-PIR-liiketunnistin

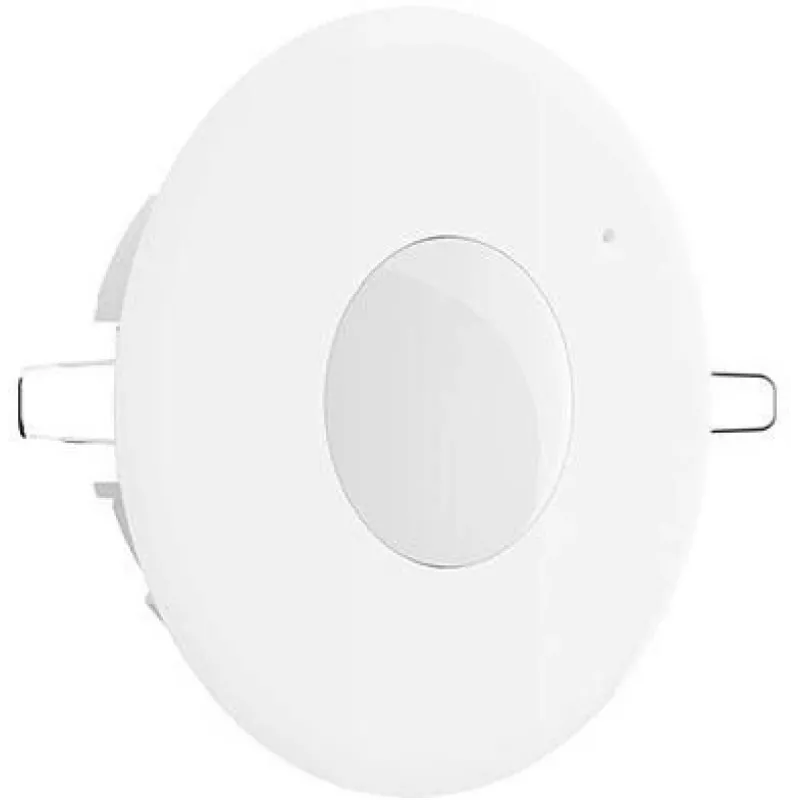

The SATEL SLIM-R-PIR-LUNA BUS is a ceiling-mounted passive infrared (PIR) motion detector designed for integration with SATEL INTEGRA and VERSA alarm systems. It features a 360° detection angle and a maximum detection range of 10 meters in diameter, making it ideal for indoor security applications. The detector communicates via the SATEL BUS, ensuring reliable data transmission and easy configuration through DLOADX software.

Advantages

This detector offers remote sensitivity adjustment, digital signal processing (DSP) for false alarm reduction, and a tamper protection switch for enhanced security. Its low standby current consumption (12 mA) and compact design make it suitable for discreet installation in residential and commercial environments.

Suitable for

• Indoor ceiling mounting in rooms, corridors, and open spaces
• Integration with SATEL INTEGRA and VERSA control panels
• Security systems requiring 360° coverage

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Detection Angle: 360°
• Maximum Detection Range: 10 m (diameter)
• Communication Interface: SATEL BUS
• Power Supply: 12 V DC (from bus)
• Standby Current Consumption: 12 mA
• Maximum Current Consumption: 15 mA
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-2-2)
• Tamper Protection: Yes (enclosure opening)
• Digital Signal Processing: Yes
• Sensitivity Adjustment: Remote (via DLOADX software)
• LED Indicator: Yes (status and test mode)
• Lens Type: Fresnel
• Housing Material: ABS Plastic
• Color: White

Recommendations

For optimal performance, install the detector at a height of 2.5–4 meters and avoid areas with direct sunlight or heat sources. Use DLOADX software to configure sensitivity and test mode.
