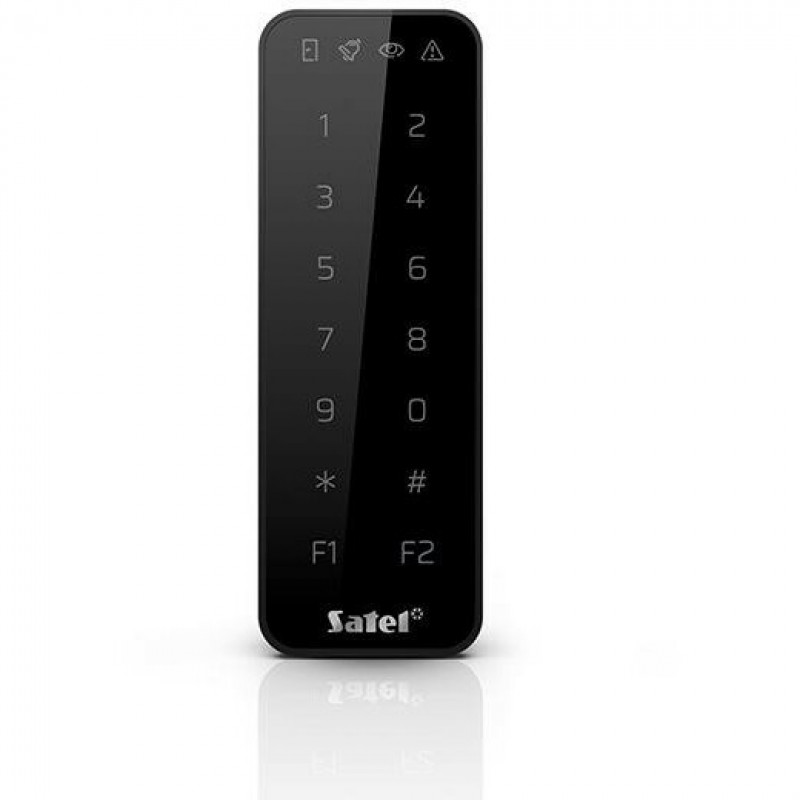

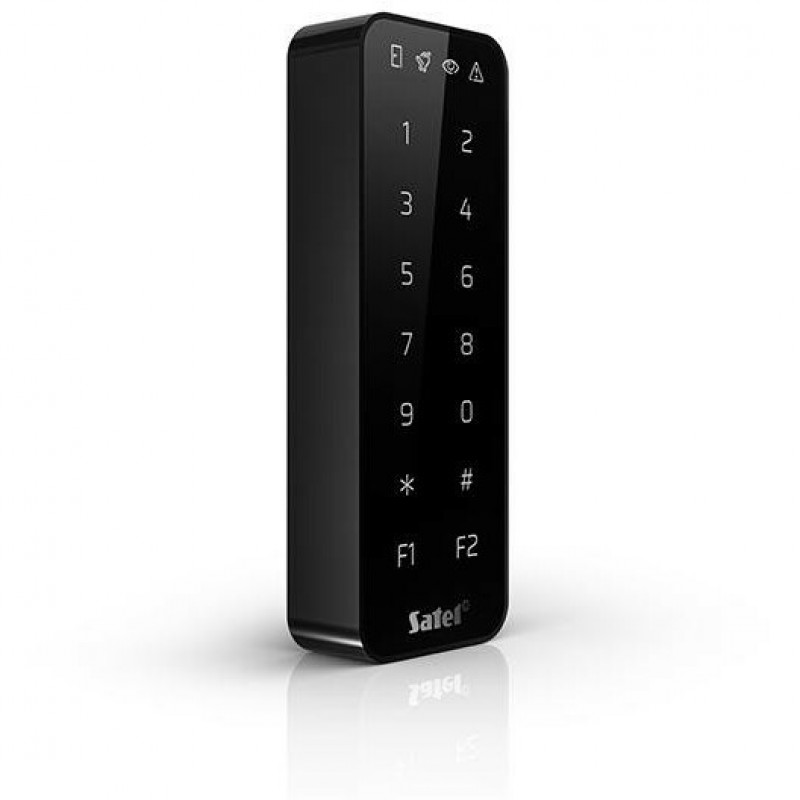

Satel SO-MF5-B näppäimistö MIFARE-lähikortinlukijalla, musta

The Satel SO-MF5-B is a black keyboard with a built-in MIFARE® proximity card reader. It can operate as an INT-SCR zone keyboard in the INTEGRA alarm system, as an ACCO-SCR keyboard with card reader in ACCO NET or ACCO access control systems, as a keyboard with card reader in third-party systems (OSDP, Wiegand), or as a standalone passage control module.

Key features

• User identification by code and/or MIFARE® proximity card
• Touch keyboard with white backlight: 12 keys for code entry, 2 function keys F1 and F2
• Built-in MIFARE® proximity card reader (13.56 MHz): Ultralight CSN/SSN, Classic CSN/SSN/MSN, DESFire (EV1/EV2/EV3) CSN/MSN
• OSDP protocol support (OSDP version 2.2; RS-485 bus)
• Additional communication interface: INT-SCR (operation in INTEGRA system), ACCO-SCR (operation in ACCO NET or ACCO system), Wiegand (operation in third-party system)
• Programming using CR Soft software
• LED indicators (4 pcs)
• OC type output (BELL) controlled by function key F1
• Built-in sounder (adjustable volume)
• Optical tamper protection against opening the housing and against detachment from the wall
• Can be mounted indoors or outdoors

Specifications

• Brand: Satel
• MPN: SO-MF5-B
• Product colour: Black
• Supply voltage: 12 V DC ±15%
• Operating temperature range: -25°C...+55°C
• Standby current consumption: 65 mA
• Maximum current consumption: 120 mA
• Weight: 93 g
• Maximum humidity: 93±3%
• Dimensions: 45 x 128 x 21 mm
• Relay output (resistive load): 1 A / 30 V DC
• BELL output, OC type: 30 mA / 12 V DC
• Reader operating frequency: 13.553...13.567 MHz
• Reading range for encrypted card MC-DF3-2: up to 55 mm
