Satelliittimonikytkin Televes 714112 5 tuloa 4 lähtöä

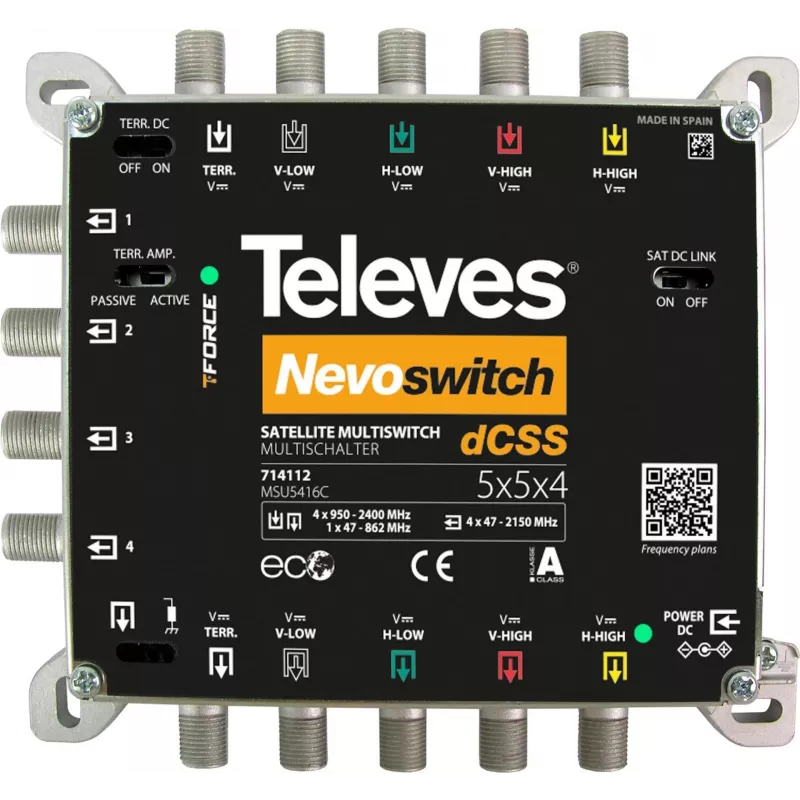

The Televes 714112 satellite multiswitch features five inputs (one terrestrial and four satellite polarities) and four user outputs. It supports SCR I (EN50494), SCR II (EN50607) and legacy modes, and accepts input frequencies from 950 to 2150 MHz with an input voltage range of 11–20 V. The unit can be used as a terminal in a star topology or installed in cascade using a simple switch. The built-in DCFLEX functionality allows the multiswitch to be powered from any point in the system, giving installers flexibility when choosing the powering method.

Advantages

The multiswitch supports both modern SCR standards and legacy receivers, ensuring compatibility with a wide range of set-top boxes. Its five-input design (including one passive terrestrial input) and four outputs enable reliable distribution of satellite and terrestrial signals. DCFLEX provides adaptable powering options and the device can be isolated from or connected to the cascade in terms of current, simplifying installation in varied system architectures.

Suitable for

• Small satellite TV installations with up to four receivers
• Setups requiring SCR I (EN50494) or SCR II (EN50607) support
• Installations combining terrestrial and satellite signals
• Star or cascaded multiswitch topologies

Key specifications

• Brand: Televes
• Model: 714112 (MPN MSU5416C, EAN 8424450186695)
• Inputs: 5 (1 terrestrial passive + 4 satellite polarities)
• Outputs: 4 user outputs
• Supported modes: SCR I (EN50494), SCR II (EN50607), legacy
• Frequency range: 950–2150 MHz
• Input voltage: 11–20 V

How to use

Connect the satellite LNB polarities and the terrestrial antenna to the corresponding inputs, then link the four user outputs to receivers or distribution points. Choose star or cascade topology according to the installation layout; if cascading, set the device switch to the cascade mode. Configure receiver settings as required for SCR I, SCR II or legacy operation. Provide power to the multiswitch from any convenient point in the system, taking advantage of DCFLEX to select the preferred powering location.

Recommendations

Verify receiver compatibility with SCR standards before installation and ensure cable lengths and connectors comply with satellite distribution best practices. When using cascade mode, confirm proper isolation or connection of the multiswitch current path to avoid supply conflicts.
