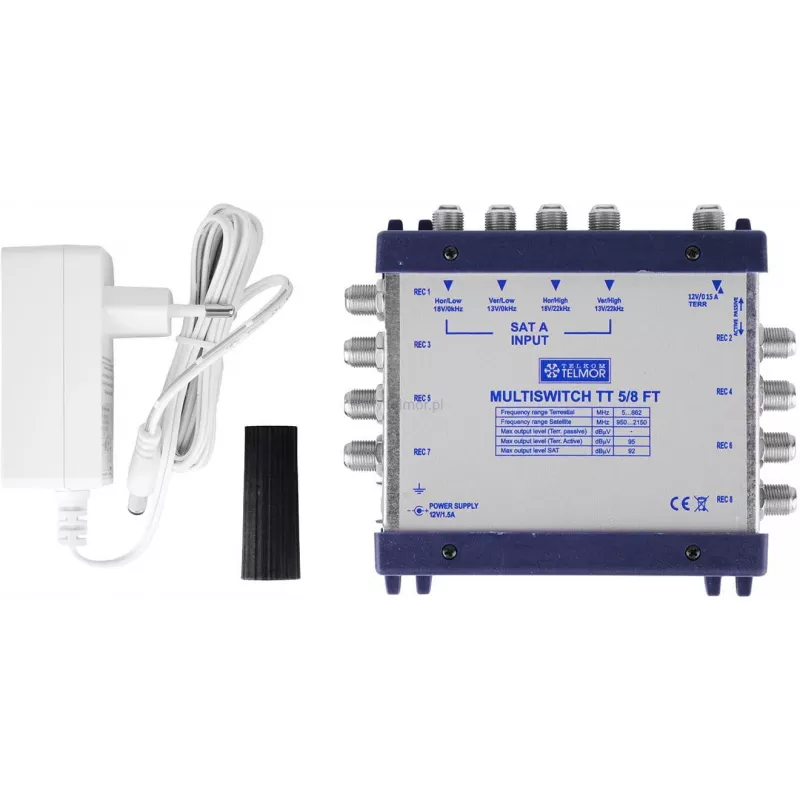

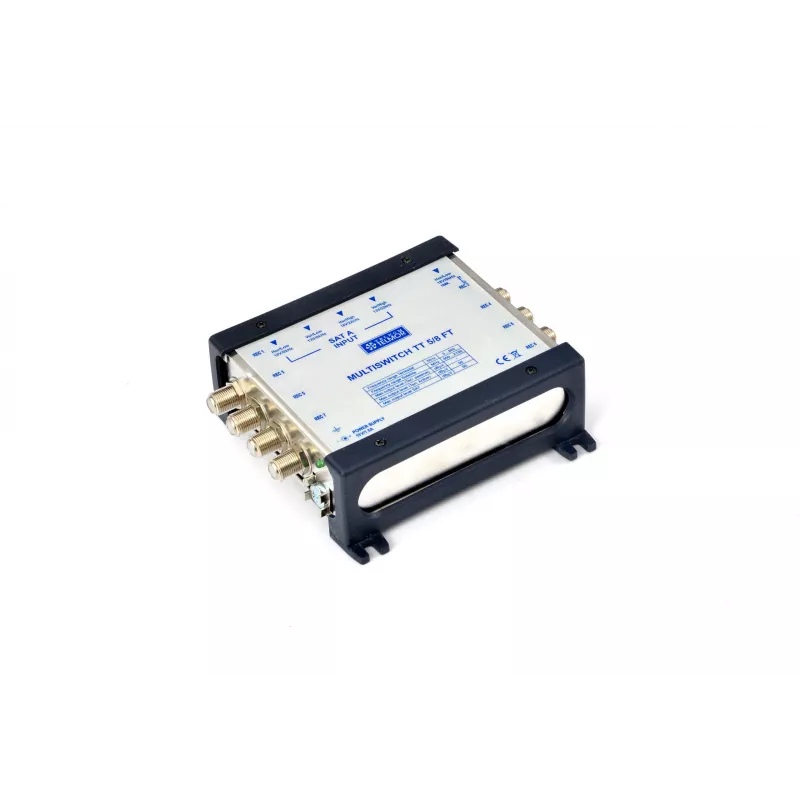

Telmor TT 5/8 pääte-multiswitch

The Telmor TT 5/8 is a terminal multiswitch with 8 RTV/SAT subscriber outputs, compatible with DAB, DVB-T/T2 and DVB-S/S2. It features an RTV input mode switch (active/passive), a compact housing, external SMPS power supply and a built-in LED operation indicator.

Key features

• 8 RTV/SAT subscriber outputs
• Compatible with DAB, DVB-T/T2, DVB-S/S2
• RTV input mode switch – active/passive
• Compact housing
• External SMPS power supply
• Built-in LED operation indicator
• A-class compliant

Specifications

• Brand: Telmor
• MPN: WSM-0103-011-01
• Frequency range RTV (TERR.) path: 5-860 MHz
• Frequency range SAT path: 950-2150 MHz
• Number of RTV (TERR.) inputs: 1
• Number of SAT inputs: 4
• Number of subscriber outputs RTV+SAT: 8
• Attenuation in RTV path for subscriber outputs: passive mode -22…-18 dB, active mode -3…+1 dB
• Attenuation in SAT path for subscriber outputs: -2…+2 dB
• Mismatch attenuation – RTV path: >10 dB
• Mismatch attenuation – SAT path: >8 dB
• Isolation RTV – SAT: >24 dB
• Isolation SAT – RTV: >60 dB
• Isolation between H/V polarisations: >30 dB
• Maximum output level RTV – active mode: 96 dBμV
• Maximum output level SAT: 100 dBμV
• Power supply – external power adapter: +12 VDC / 1500 mA
• Current consumption from SAT receiver: 40 mA
• Switching commands: DiSEqC 2.0 (+13V/+18V, 0/22kHz, tone)
• Product dimensions: 110x130x40 mm
• Net weight: 0.26 kg
