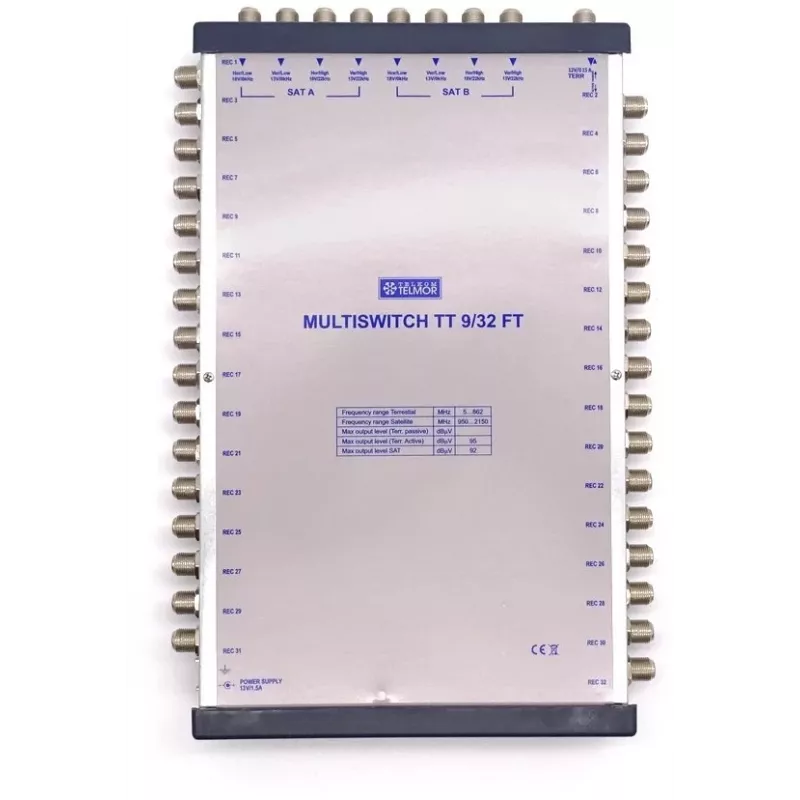

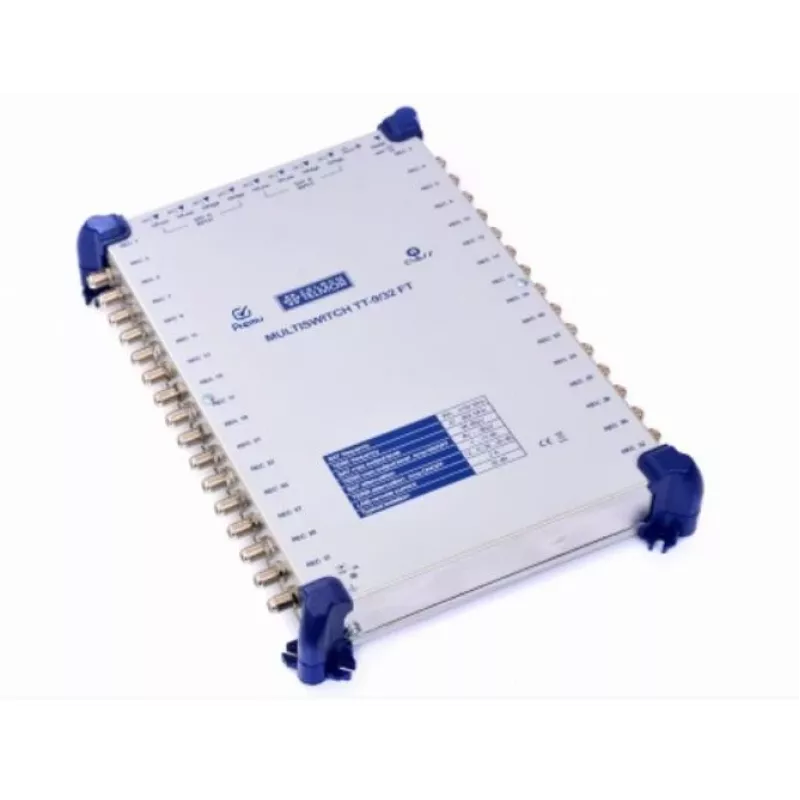

Telmor TT 9/32 FT Classic terminaalimultiswitch integroidulla virtalähteellä

Distribute satellite and terrestrial signals to up to 32 receivers with the Telmor TT 9/32 FT Classic terminal multiswitch. Featuring 8 satellite inputs and 1 terrestrial input, it delivers a full 950–2150 MHz satellite IF range and 5–862 MHz terrestrial band, making it ideal for large residential or commercial installations.

Overview

The Telmor TT 9/32 FT Classic is a non-cascadable terminal multiswitch designed to feed multiple receivers from a single Quattro LNB and terrestrial antenna. Its 32 outputs allow extensive distribution, while the integrated 230V AC power supply ensures stable operation without external power inserters. The metal housing provides durability for indoor installations.

What stands out

• 32 receiver outputs for large-scale distribution
• 8 satellite inputs compatible with Quattro LNB
• Integrated AC power supply for hassle-free setup
• Wide frequency range covering satellite IF and terrestrial bands
• High isolation between outputs to prevent interference
• DiSEqC 2.0 control protocol for advanced switching

Technical details

• Satellite frequency range: 950–2150 MHz
• Terrestrial frequency range: 5–862 MHz
• Satellite gain: 0 ± 2 dB; Terrestrial gain: -2 ± 2 dB
• Max output level: 95 dBµV (SAT), 85 dBµV (TER)
• LNB power: 18V DC, 500mA max
• Isolation: >30 dB (SAT-SAT and output-output)
• Connectors: F-type
• Power supply: 230V AC, 50/60 Hz, max 20W
• Housing: metal, indoor use

Our verdict

A robust and reliable multiswitch for extensive satellite distribution, offering high output count and integrated power for straightforward installation.
