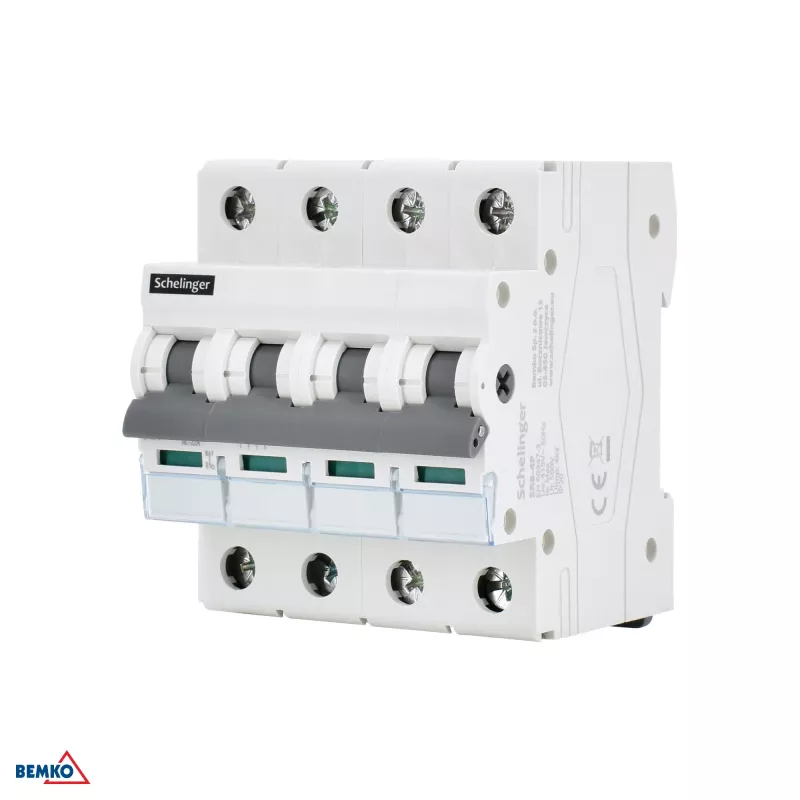

SCHELINGER A11-SR8-4P-063 4P 63A erotuskytkin

The SCHELINGER A11-SR8-4P-063 is a high-quality 4-pole isolator switch designed for reliable electrical isolation in industrial and commercial installations. Rated at 63A and 400V AC, this switch ensures safe disconnection of circuits for maintenance and emergency shutdown. Compliant with IEC/EN 60947-3, it offers robust performance with a rated impulse withstand voltage of 4 kV and a short-circuit making capacity of 3 kA.

Advantages

This isolator switch provides clear ON/OFF position indication, ensuring safe operation. Its compact 4-module (72 mm) design fits standard DIN rail (TH35) enclosures, saving space in distribution boards. With high electrical endurance (10,000 cycles) and mechanical endurance (20,000 cycles), it delivers long-lasting reliability. The front protection rating of IP40 and terminal protection of IP20 offer good resistance to dust and touch.

Suitable for

• Industrial electrical panels
• Commercial building distribution boards
• Maintenance isolation in machinery
• Emergency disconnect applications

Key specifications

• Product Type: Isolator Switch
• Number of Poles: 4P
• Rated Current (In): 63 A
• Rated Voltage (Ue): 400 V AC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail (TH35)
• Module Width: 4 Modules (72 mm)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Degree of Protection (Front): IP40
• Degree of Protection (Terminals): IP20
• Operating Temperature: -25°C to +50°C
• Terminal Capacity (Rigid): 1-35 mm²
• Terminal Capacity (Flexible): 1-25 mm²
• Standard Compliance: IEC/EN 60947-3
• Indication: ON/OFF Position
• Rated Short-Circuit Making Capacity (Icm): 3 kA
• Color: Grey/White

Recommendations

For optimal performance, ensure proper torque settings during installation and use appropriate cable sizes within the specified terminal capacity. Always verify compatibility with your existing DIN rail system.
