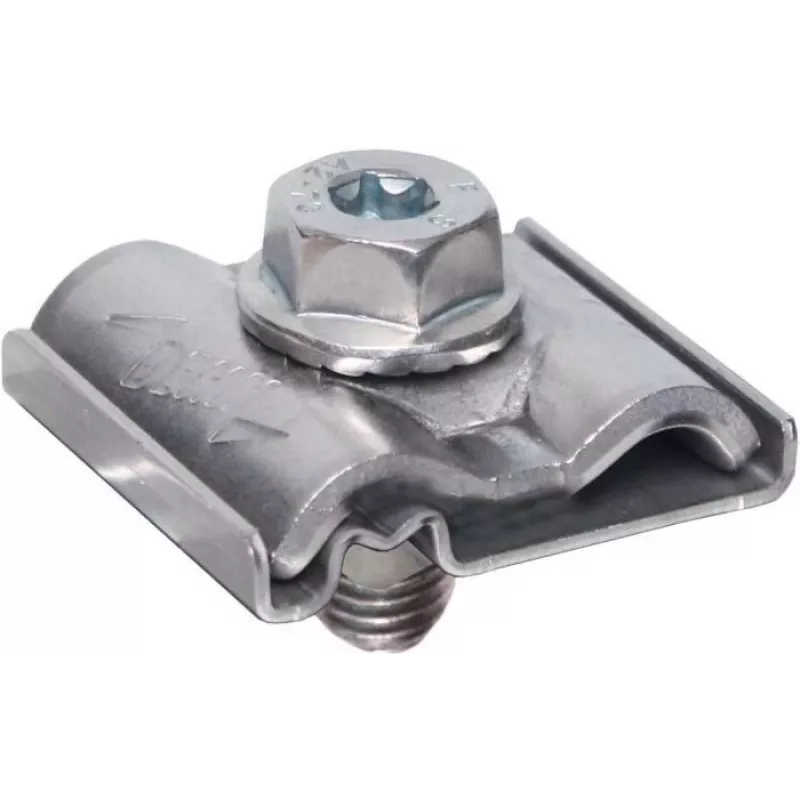

Schletter 135003-002 maadoitus- ja salamasuojaliitin VA M8

The Schletter 135003-002 earthing and lightning protection clamp is engineered for secure, corrosion-resistant connections in photovoltaic installations. Its stainless steel construction and M8 thread ensure reliable bonding of round conductors, setting it apart from generic clamps that may degrade outdoors.

Highlights

• Stainless steel (V2A / 1.4301) for high corrosion resistance
• Compatible with round conductors 8–10 mm diameter
• M8 screw clamp for secure, tool-tightened connection
• Suitable for earthing, lightning protection, and equipotential bonding
• UV resistant for outdoor use

In daily use

This clamp provides a straightforward, durable solution for connecting earthing or lightning protection conductors in solar PV systems. The screw clamp design allows for easy installation and maintenance, while the stainless steel material withstands harsh environmental conditions, ensuring long-term reliability.

Full specifications

• Product type: Earthing and lightning protection clamp
• Material: Stainless steel (V2A / 1.4301)
• Connection thread size: M8
• Conductor diameter range: 8 - 10 mm
• Conductor type: Round conductors
• Application: Earthing, lightning protection, equipotential bonding
• Mounting method: Screw clamp
• Corrosion resistance: High
• UV resistance: Yes
• Standard compliance: DIN EN 62561-1
• Installation location: Outdoor / Indoor
• Colour: Metallic silver

Final note

A dependable, corrosion-resistant clamp for secure earthing and lightning protection connections in solar installations.
