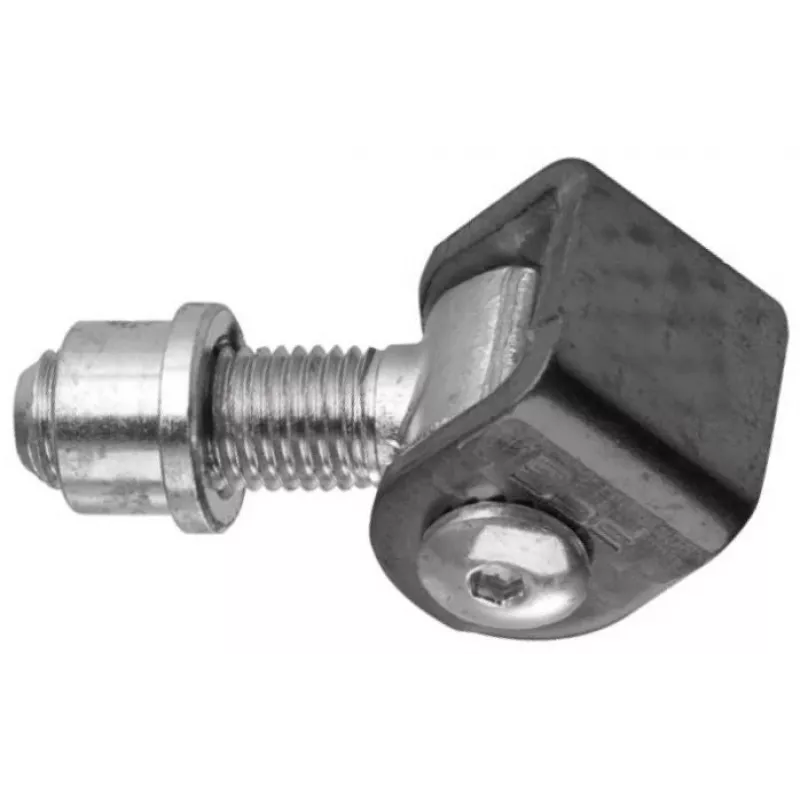

PSG 61.001 hitsattava nauha M16-kierteellä – teräs, raaka pinta

Heavy gates, industrial doors, and steel structures demand hinges that can withstand constant load without loosening or sagging. The PSG 61.001 weld-on hinge solves this by providing a robust, permanently fixed pivot point with an M16 threaded sleeve for secure integration into your framework. Its solid steel construction and plain bearing design ensure reliable operation under demanding conditions.

Who is it for

This hinge is built for metalworkers, fabricators, and maintenance teams who need a dependable, weldable hinge for gates, doors, and industrial equipment. If you require a hinge that can be welded directly onto steel structures and offers a high load capacity, this model is an excellent choice.

Main features

• Weld-on installation for permanent, secure mounting
• M16 thread for attaching to threaded components or adjusting positioning
• Constructed from S235JR structural steel for strength and durability
• Fixed pin design with plain bearing for smooth rotation
• Raw, uncoated finish allows for post-welding treatment (painting, galvanizing)
• Supports up to 150 kg per pair, suitable for medium-weight gates and doors

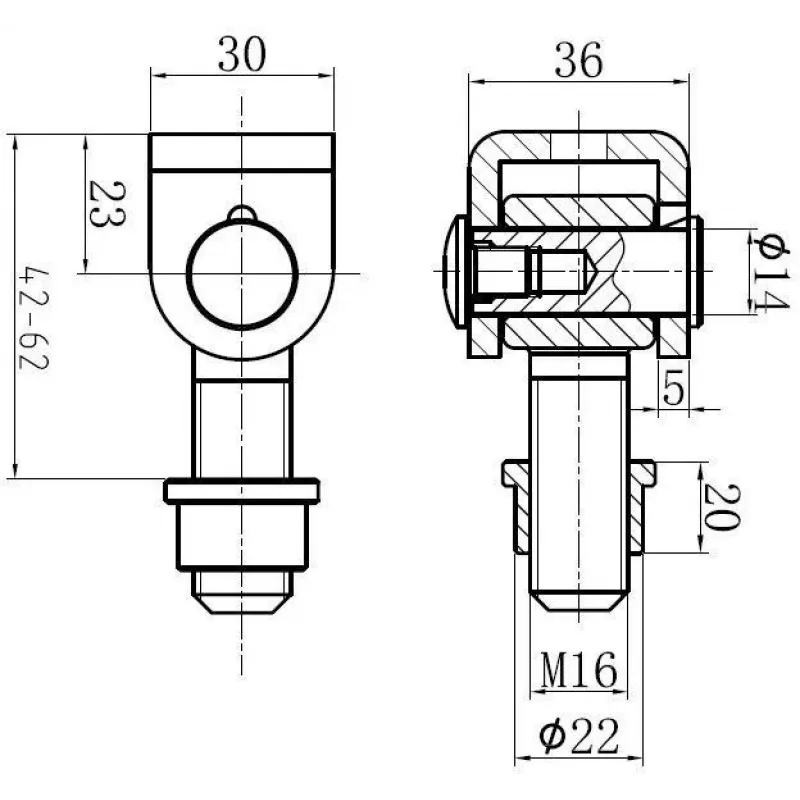

Specifications

• Hinge Type: Weld-on Hinge
• Thread Size: M16
• Material: Steel (S235JR)
• Finish: Raw / Uncoated
• Installation Method: Weld-on
• Load Capacity (per pair): Up to 150 kg
• Total Length: 110 mm
• Sleeve Outer Diameter: 22 mm
• Pin Diameter: 16 mm
• Pin Type: Fixed Pin
• Bearing Type: Plain Bearing
• Corrosion Resistance: Low (requires post-welding treatment)
• Application: Gates, Doors, Industrial Structures
• Adjustability: Non-adjustable
• Country of Origin: Poland

Tips

After welding, apply a protective coating such as paint or galvanizing to prevent corrosion, especially in outdoor environments. Ensure proper alignment before welding to maintain smooth operation. For heavier gates, consider using additional hinges or consult load capacity guidelines.
