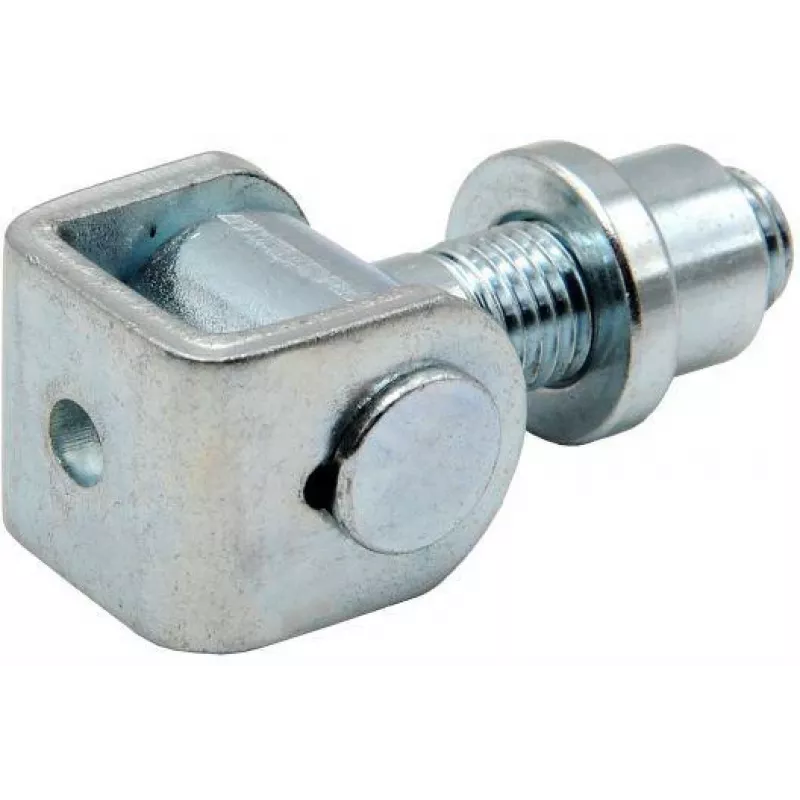

PSG 61.001.01 hitsattava hihna M16-kierre sinkitty silmukka

Heavy-duty weld-on hinge engineered for industrial gates, doors, and equipment where a secure, permanent pivot is non-negotiable. The M16 threaded eye provides a robust connection point, while the galvanized finish on the eye delivers high corrosion resistance for long-term outdoor use.

Advantages

Built from industrial-grade steel, this two-part hinge system combines a fixed pin with a threaded eye for reliable load distribution. The weld-on mounting method ensures a rigid, tamper-resistant installation that withstands heavy cyclic loading. The galvanized eye not only resists rust but also offers a clean metallic grey appearance that blends with most metal structures.

Suitable for

• Heavy-duty gates and doors in industrial or agricultural settings
• Equipment enclosures requiring a permanent, high-strength hinge
• Outdoor installations where corrosion resistance is critical
• Fabrication projects needing a weldable hinge with an M16 thread

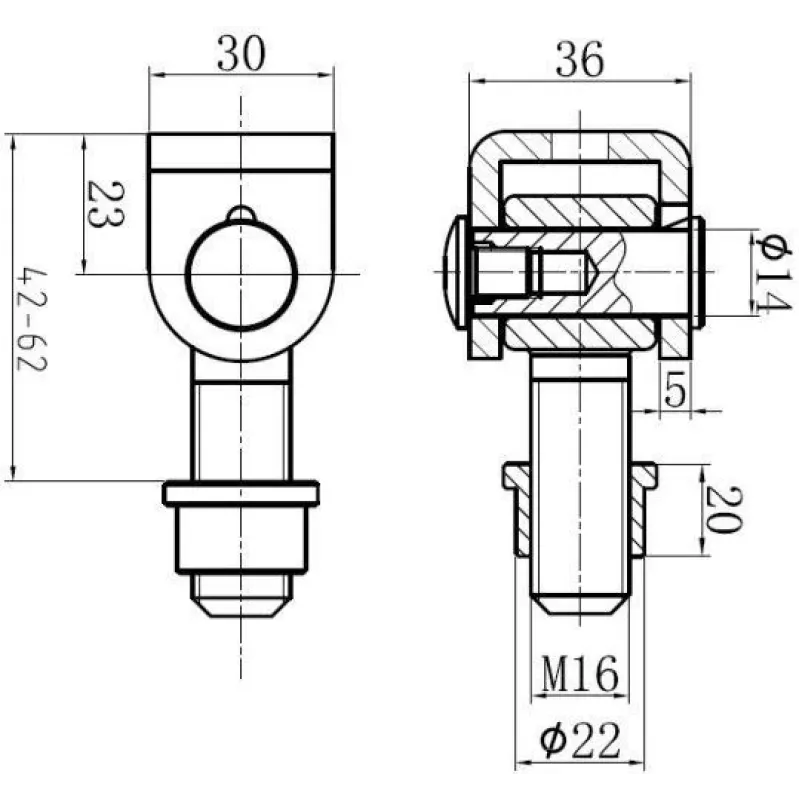

Key specifications

• Hinge type: Weld-on hinge with two-part construction (pin and eye)
• Thread size: M16
• Material: Steel
• Eye finish: Galvanized
• Pin diameter: 16 mm
• Overall height: 100 mm
• Mounting method: Welding
• Corrosion resistance: High (galvanized eye)
• Durability: Industrial grade
• Color: Metallic grey
• Approximate weight: 0.4 kg
• Manufacturer series: PSG 61 Series
• Pin type: Fixed pin
• Eye type: Threaded eye

Recommendations

For maximum service life, ensure proper weld penetration on the hinge base and use a thread-locking compound on the M16 connection if vibration is present. Pair with a matching galvanized pin or bolt to maintain corrosion consistency.
