Seinäkaappi Digitus DN-19 12U-I-OD

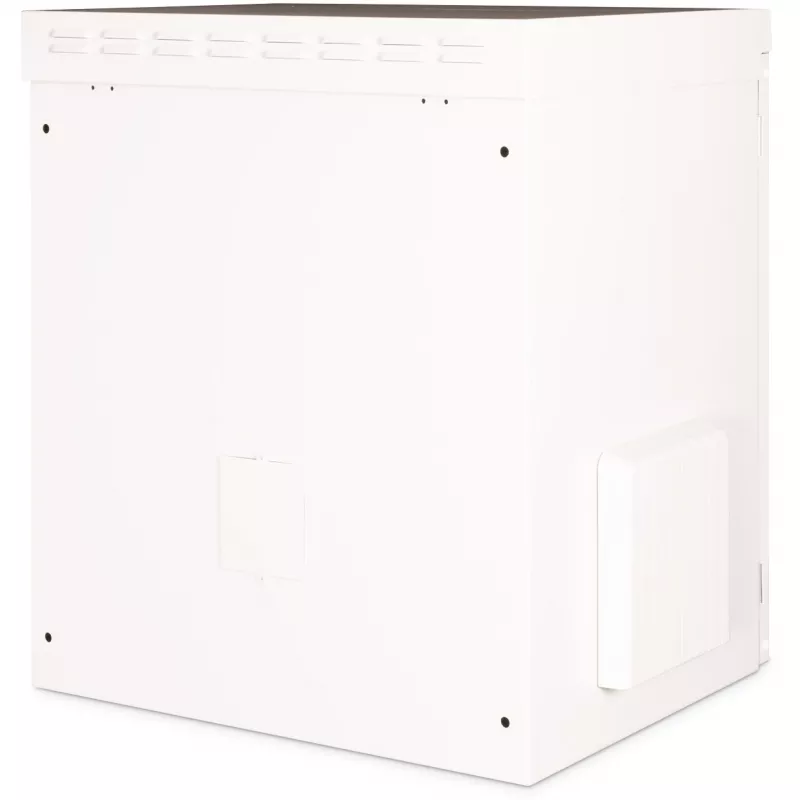

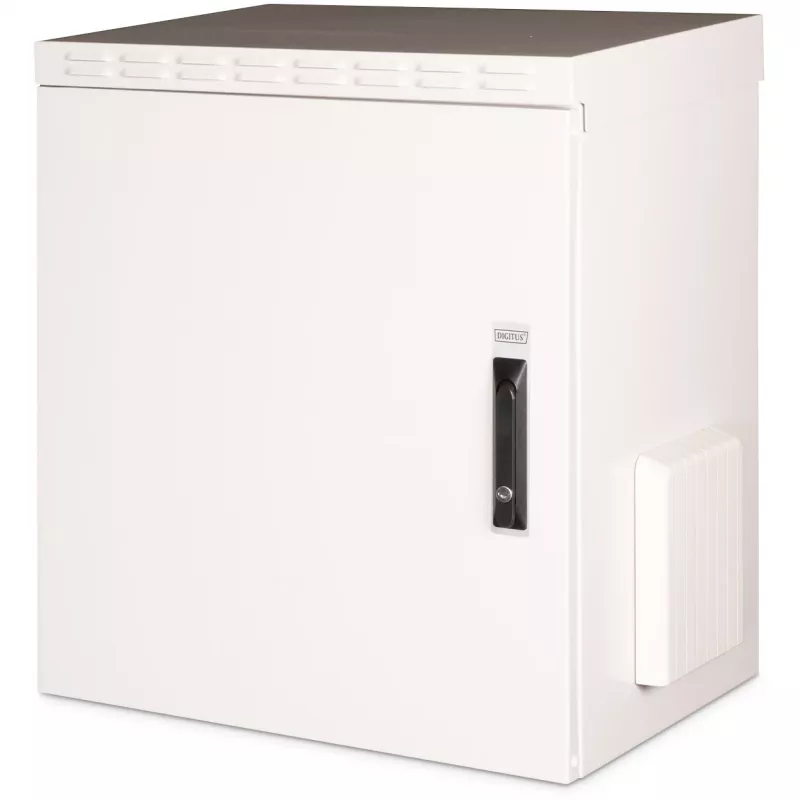

The DIGITUS Wall mounted rack DN-19 12U-I-OD is an IP55-rated outdoor wall mounting cabinet for industrial network equipment. Constructed from up to 2.0 mm thick sheet steel and electrostatically powder-coated in grey (RAL 7035), the 19" cabinet measures 600 x 450 mm (W x D) with a 12U mounting height and supports equipment installation on adjustable, galvanized 483 mm (19") profile rails. The housing is designed for harsh outdoor environments and offers protection against dust and water jets according to IP55.

Advantages

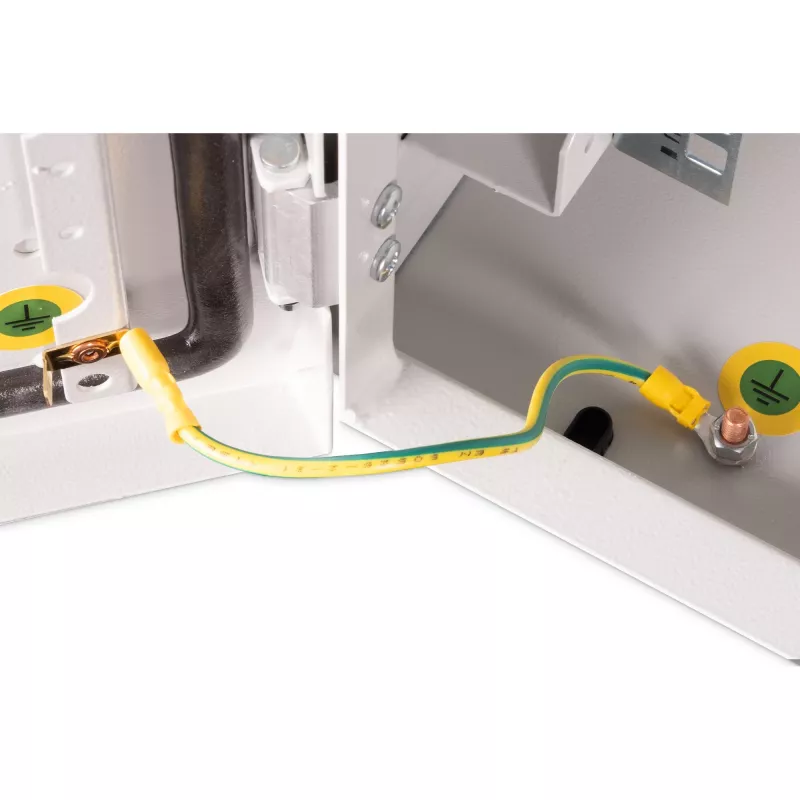

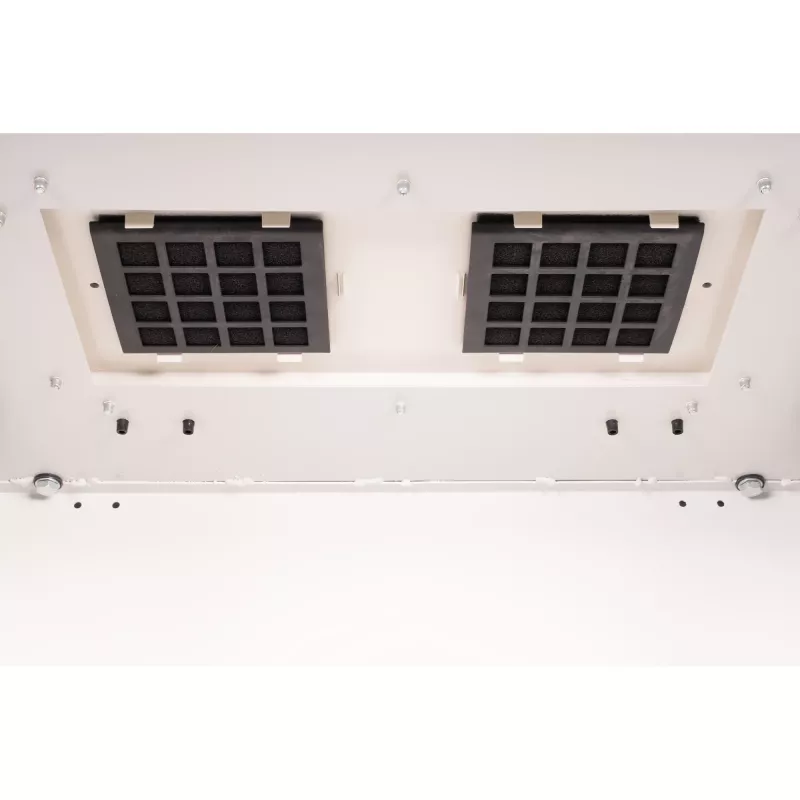

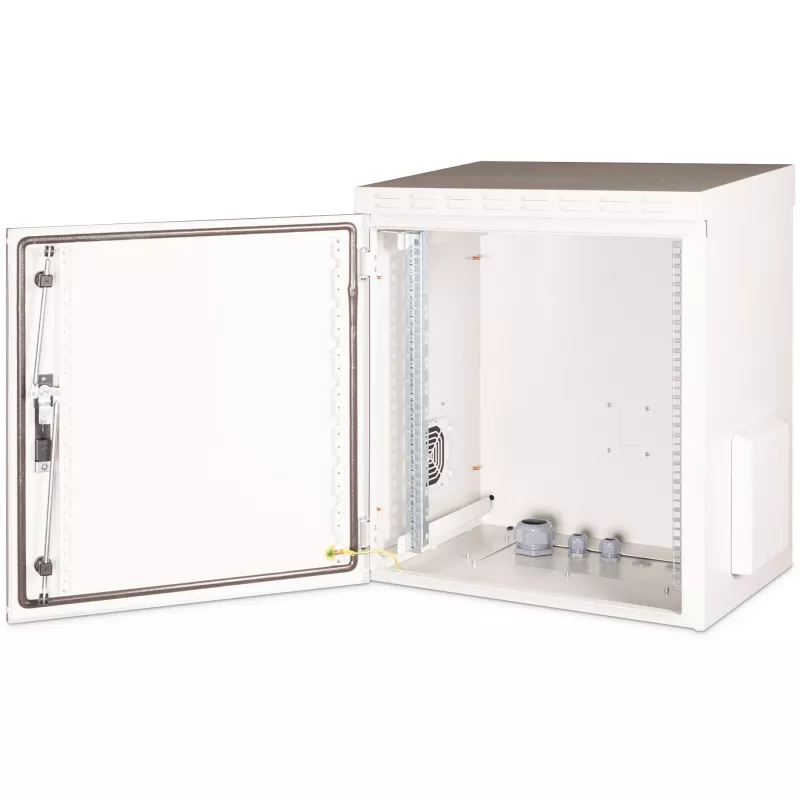

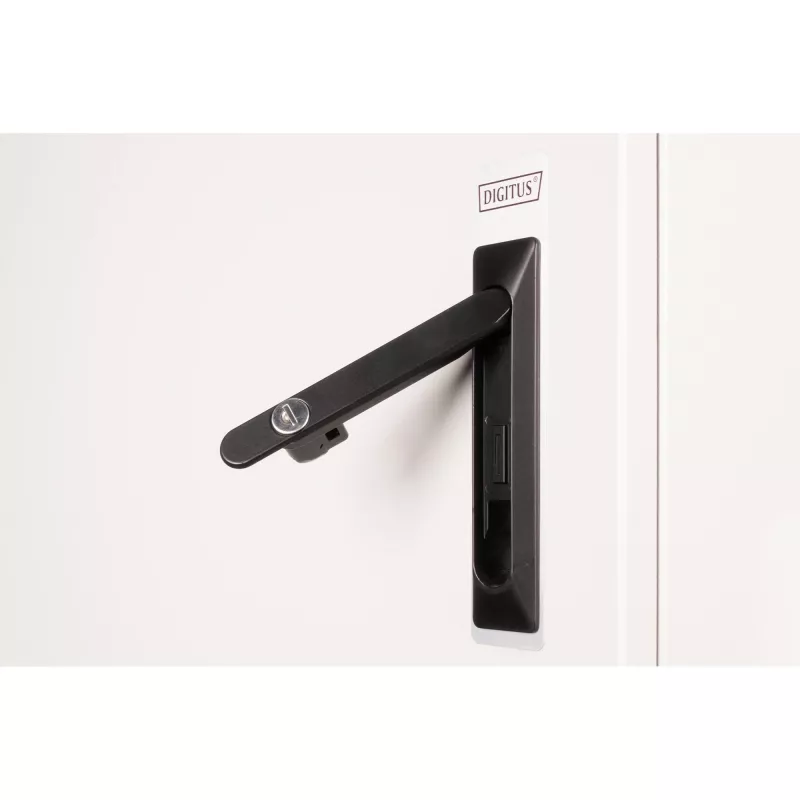

The cabinet provides sealed protection against dust and water jets (IP55) and includes a steel front door with a lockable pivot lever and a three-point locking mechanism. The front door is fitted with an earthing lead, two welded U-shaped strengthening bars and a gasket system for reliable sealing. Insulated PG cable glands, adjustable 19" profile rails with readable RU marking and an integrated fan filter area on the roof add mounting flexibility and ventilation options while maintaining ingress protection.

Suitable for

• Outdoor network equipment installations exposed to rain, dust, snow, hail or spray water
• Industrial wall-mounted network cabinets for switches, patch panels and small servers
• Environments requiring IP55 protection for electrical or communication devices

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-19 12U-I-OD
• EAN: 4016032360995
• Mounting: Wall mounted (optionally free-standing with plinth or pole-mounted with fastening set)
• Mounting size: 19" (483 mm) profile rails, 12U
• Dimensions (W x D): 600 x 450 mm
• Material: Sheet steel up to 2.0 mm
• Protection class: IP55 (protection against dust and water jets)
• Colour: Grey (RAL 7035)
• Load capacity: suitable for typical network equipment (see product specifications)

How to use

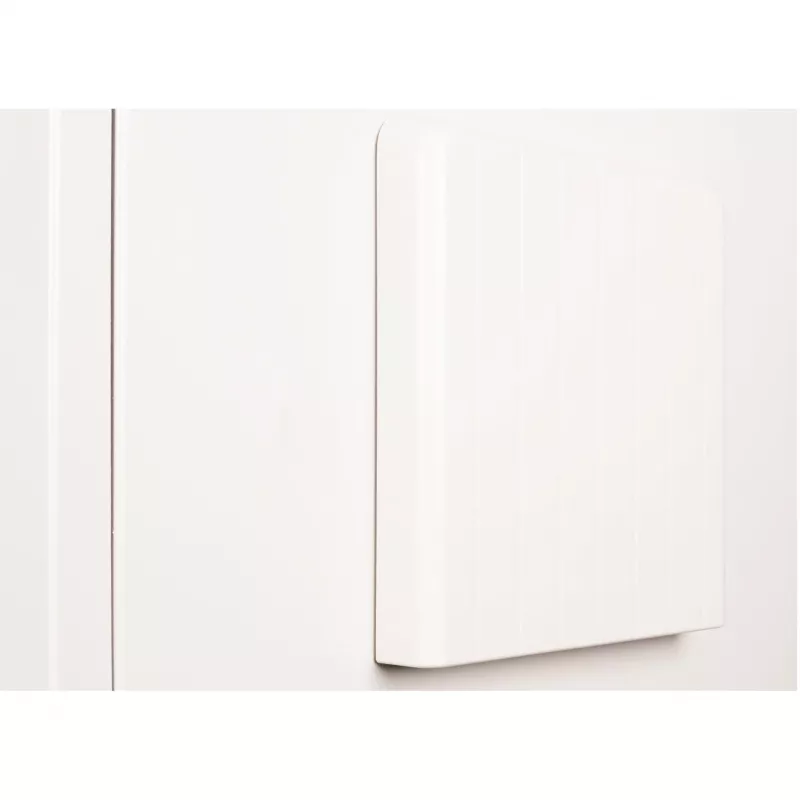

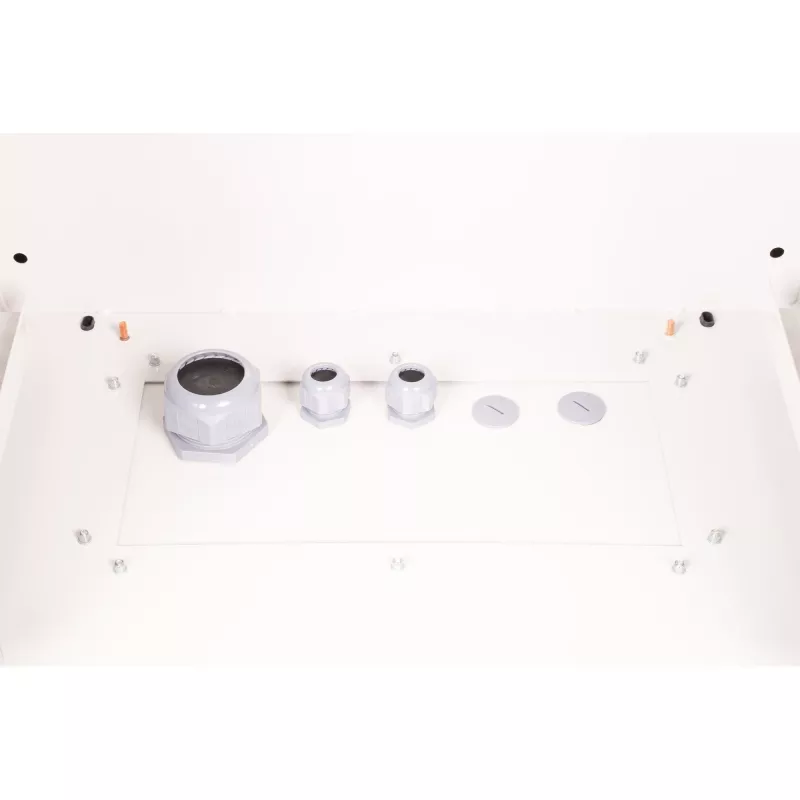

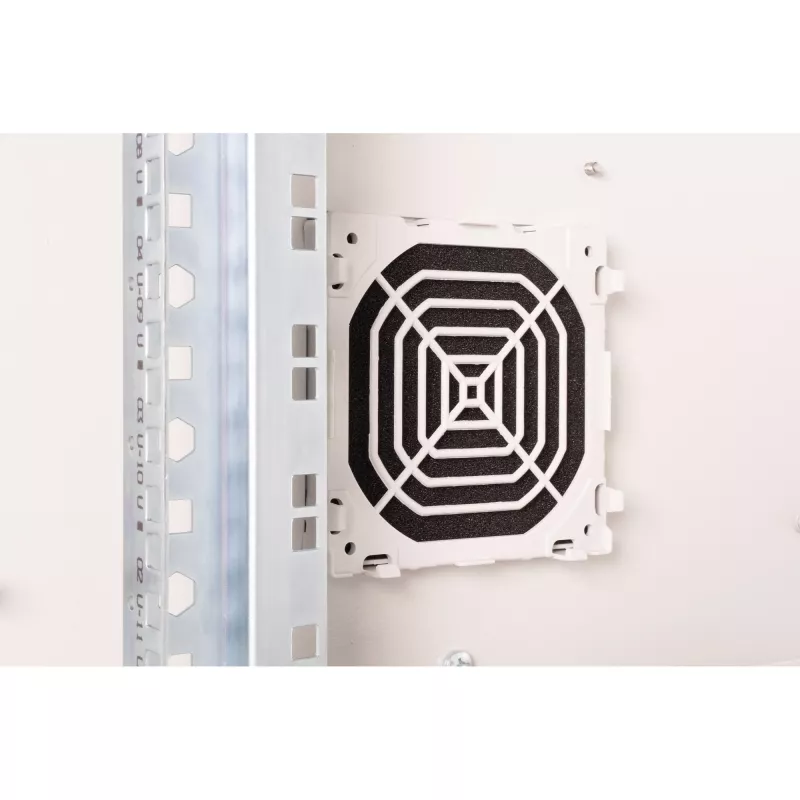

Mount the cabinet on a suitable wall using the enclosed mounting bracket and secure all fasteners. Adjust the depth of the galvanized 19" profile rails to match the installed equipment and label RU markings as needed. Route cables through the insulated PG cable glands and ensure the earthing lead is connected to the building ground. If ventilation is required, install the fan module in the provided filtered roof area and use the integrated fan filter housing to ensure filtered air intake while maintaining IP54-level protection for the fan opening. For a free-standing installation, fit the optional plinth; for pole mounting use the dedicated fastening set.

Recommendations

Install the cabinet on a load-bearing, corrosion-resistant surface and maintain the door gasket and cable gland seals to preserve IP55 protection. When adding ventilation or fans, ensure filters are regularly cleaned or replaced to keep ingress protection effective.
