Seinäkaappi Extralink Rackmount-kotelo 18U 600x600 harmaa avainlukko

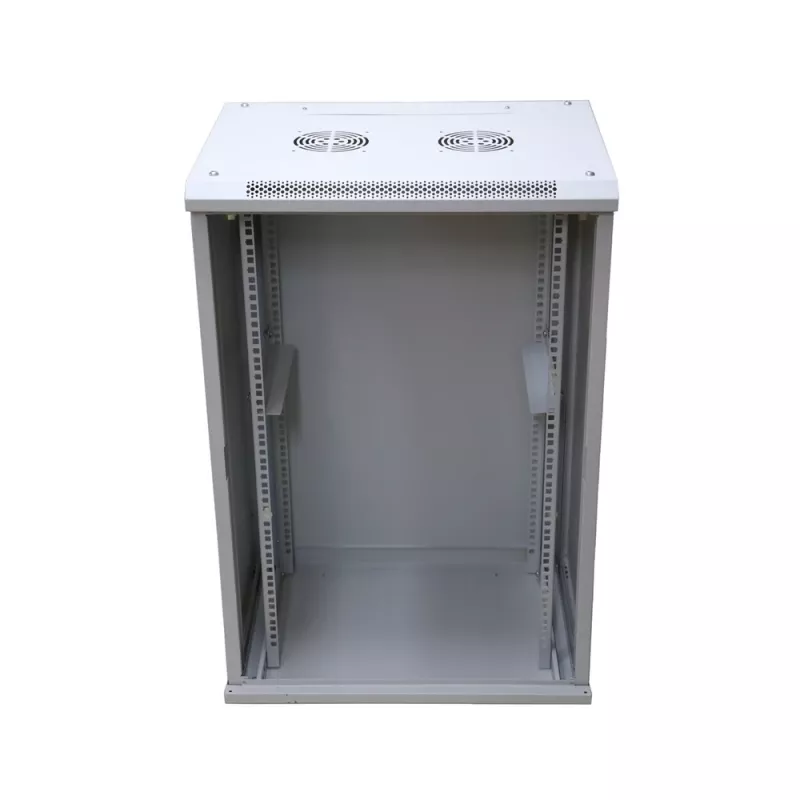

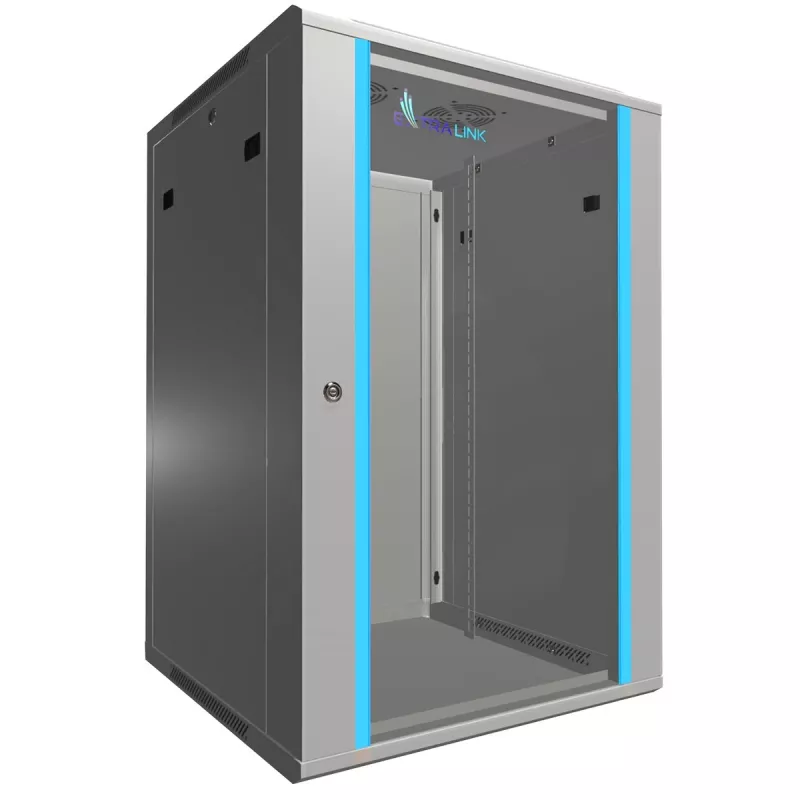

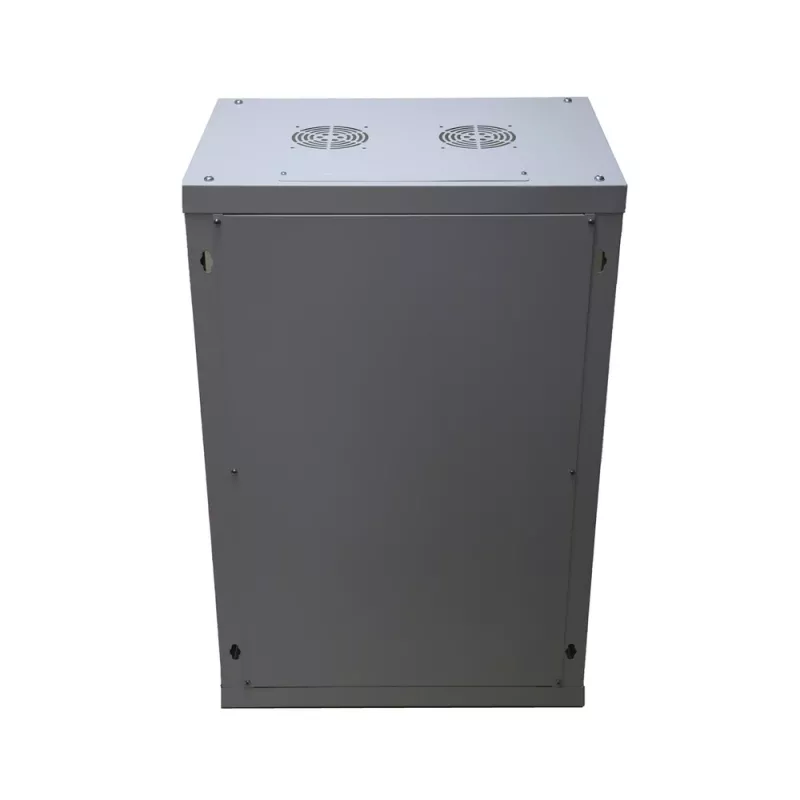

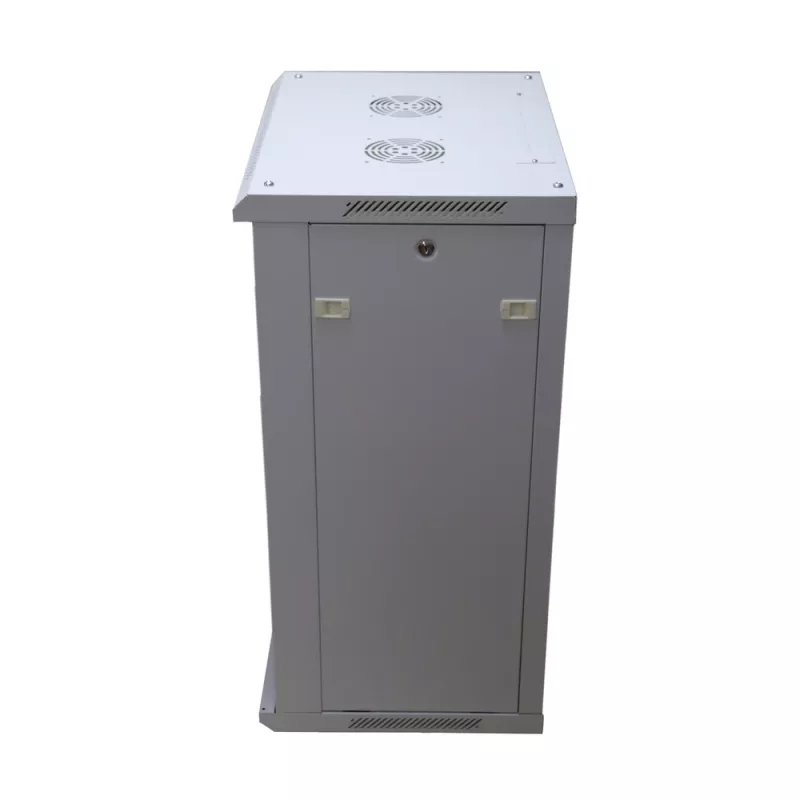

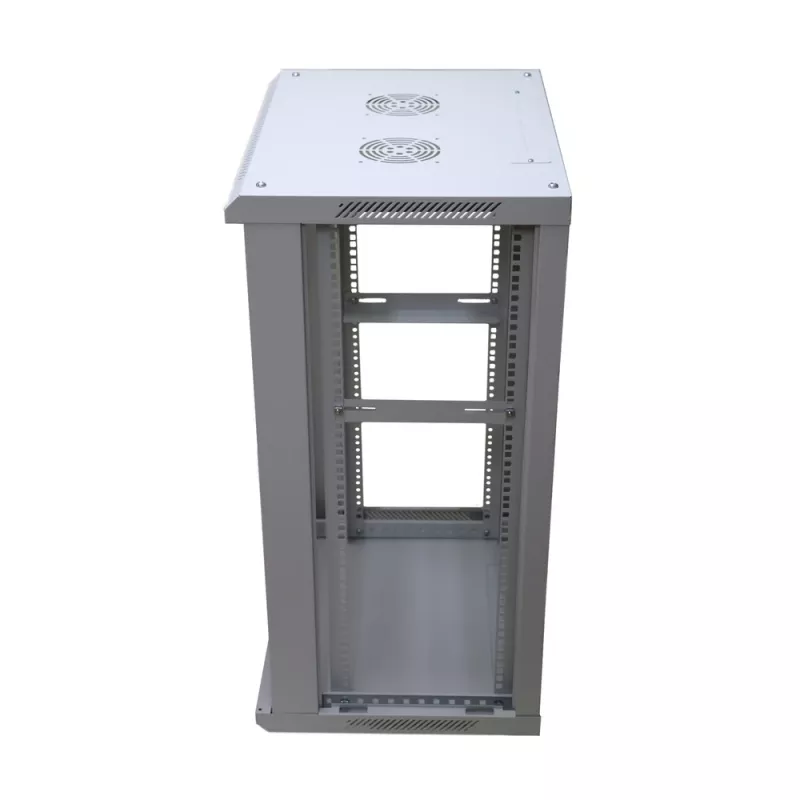

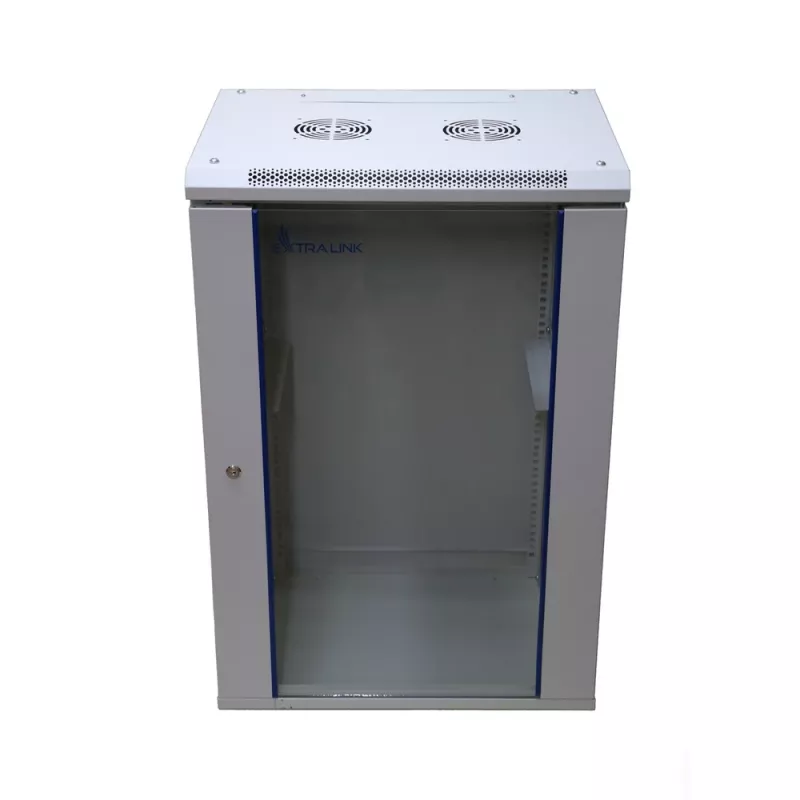

The Extralink 18U 600x600 wall-mounted rack cabinet is intended for mounting in offices, server rooms and CCTV control rooms. Constructed with cold-rolled steel side and rear panels and a tempered glass front door, the cabinet provides secure storage for networking and server equipment. It offers 18U of rack space (total height 910 mm), a keyed lock, removable side panels and two ceiling openings prepared for fan installation and additional cable routing.

Advantages

The cabinet combines a compact 600 x 600 mm footprint with 18U mounting height, allowing efficient use of wall space while supporting up to 150 kg of equipment. Tempered glass front door allows visual inspection of installed devices without opening, and the keyed lock increases physical security. Snap fasteners on the side panels enable quick access for maintenance, and pre-cut ceiling positions simplify adding fans or routing cables.

Suitable for

• Wall mounting in small server rooms and IT closets
• CCTV control rooms and camera DVR/NVR installations
• Office network distribution and patch panels
• Small-scale rack-mounted switches, routers and patch equipment

Key specifications

• Rack capacity: 18U (height 910 mm)
• External width: 600 mm
• External depth: 600 mm
• Material: cold-rolled steel panels, tempered glass front
• Colour: Grey
• Lock: key lock included
• Maximum recommended load: up to 150 kg (manufacturer summary)
• Ceiling: 2 pre-cut positions for fans and additional cable conduit

How to use

Mount the cabinet securely to a suitable load-bearing wall following local building and safety regulations. Install vertical mounting rails to align equipment at the required U positions (rails are marked with unit heights). Route cables through the top or rear openings and, if needed, install fans in the prepared ceiling positions for improved cooling. Use the keyed lock to secure the front door and remove side panels via snap fasteners for internal access during installation or maintenance.

Recommendations

For stable operation, verify wall fastening points and load capacity before mounting, distribute equipment weight evenly across the rails, and, when deploying heat-generating devices, install fans or ensure adequate ventilation through the provided ceiling positions.
