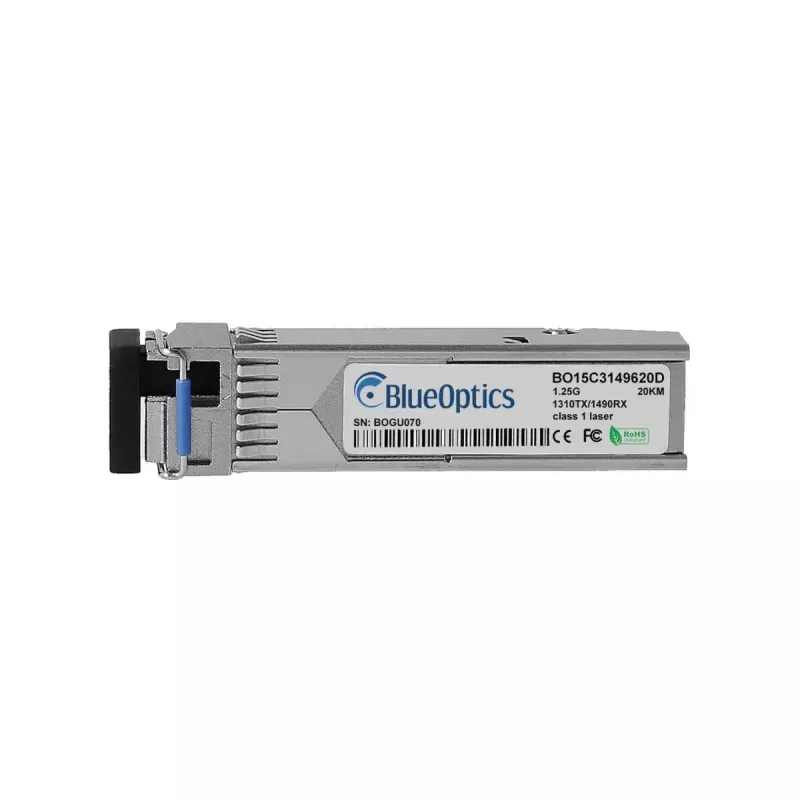

SFP lähetin-vastaanotinmoduuli BlueOptics AA1419069-E6-NT-BO kuitu 20000 m

The BlueOptics AA1419069-E6-NT-BO is a single-mode SFP fiber optic transceiver designed for long-distance, high-speed data links up to 20,000 m. Housed in an aluminium enclosure and weighing approximately 20 g, this module provides an LC simplex interface and follows MSA form-factor standards for SFP slots. It supports 1.25 Gbps optical transmission using separate wavelengths for transmit and receive and is supplied as a single unit suitable for integration into compatible network equipment.

Advantages

The module combines a compact SFP form factor with an aluminium body for passive thermal conduction and reduced weight. It supports single-mode fiber links and LC simplex connectivity, enabling simultaneous transmit and receive functions on a single fiber pair using distinct wavelengths for each direction. Compliance with MSA SFP standards ensures straightforward interoperability with hardware that accepts compatible 1000BASE-BX-U SFP modules. The small size and standard interface simplify hot-plug replacement and installation in switches, routers and storage interfaces.

Suitable for

• Long-reach single-mode Ethernet links up to 20 km
• Interconnection between switches and routers in campus and metropolitan networks
• Fiber uplinks for storage or aggregation ports supporting 1.25 Gbps
• Replacement or spare SFP modules in equipment that supports compatible 1000BASE-BX-U transceivers

Key specifications

• Form factor: SFP (MSA compliant)
• Max. link distance: 20,000 m (single-mode fiber)
• Data rate: up to 1.25 Gbps (1000BASE-BX-U class)
• Connector type: LC simplex
• Wavelengths: separate transmit and receive wavelengths for bidirectional single-fiber operation
• Housing material: aluminium
• Weight: ~0.02 kg

How to use

Insert the SFP transceiver into an empty SFP port on a compatible switch, router or storage device while the host system is powered on or per the equipment vendor’s hot-swap guidance. Connect an appropriate single-mode LC patch cable, ensuring correct alignment for the bidirectional link (matching transmit and receive ends). Verify link status and speed in the host device’s management interface. If digital diagnostics (DDM/DOM) are supported by your hardware, enable the monitoring functions to view module parameters such as optical power and temperature for ongoing maintenance.

Recommendations

Use single-mode LC patch cords and follow equipment vendor compatibility lists when installing this BlueOptics SFP. For stable long-distance links, verify fiber quality, connector cleanliness, and correct fiber polarity. If available, enable DDM/DOM monitoring to track optical power and temperature values and schedule preventive checks based on those readings.
